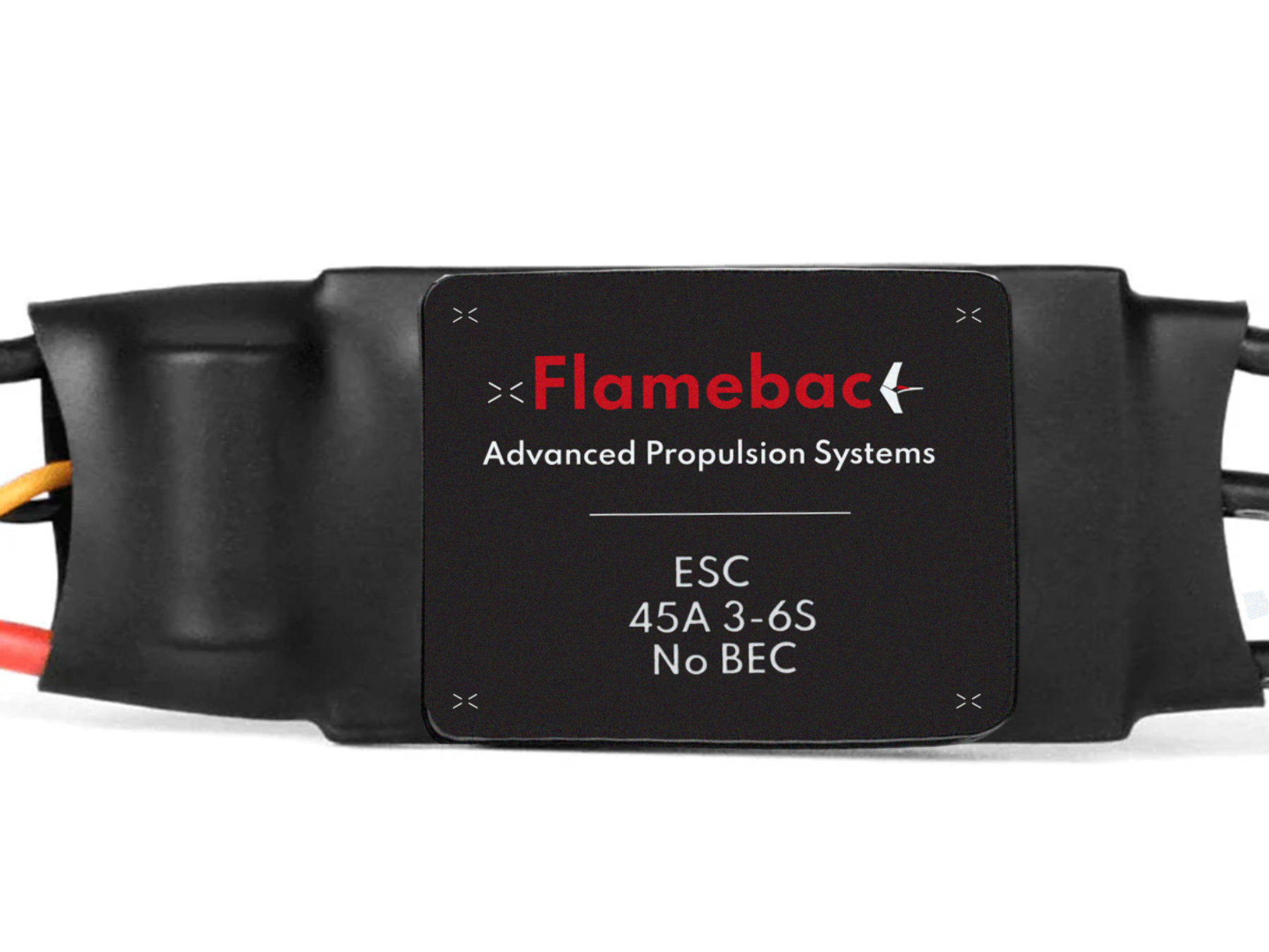

Flameback 45A 6S ESC

These are well-suited for multirotors as well as other BLDC applications. Flameback's advanced systems have been tested by customers in very demanding environments. These systems are fully engineered and calibrated to the highest performance parameters to ensure maximum endurance and longevity. These ESCs incorporate the latest and greatest MOSFET and PCB technology, and deploy processors which allows us to incorporate smarter features than other available ESCs. It also has safety features to protect itself - high temperature and low RPM power protection. The ESC provides the smoothest and most efficient drive to the motor. All components of the ESC are rated to operate up to 85°C and are fabricated with 3 oz copper thickness which ensures that the device performs reliably in challenging environmental conditions. These ESCs are designed, manufactured, assembled and tested completely by Flameback Tech Pvt Ltd. All core parameters are clearly marked for smooth assembly and quality control procedures. Flameback ESCs are backed by a 1-year manufacturers warranty against defects in materials and workmanship. What is special about Flameback ESCs? Our ESCs are engineered to provide smooth and accurate throttle control, high efficiency, and are suitable for a wide range of UAV applications from hobbyist drones to professional aerial vehicles. Smooth. Reliable. Dense.

Key features

• Smooth, Reliable, and ESC. Built for 1:1 configuration. Available in pack of 1, 2 or 4, and Telemetry variant.
• Supported protocols: PWM, Oneshot125, Oneshot42, Multishot, DSHOT150, DSHOT300, DSHOT600
• This ESC is a workhorse, and can sustain continuous operation for long periods. Endures temperatures >120°C
• Extremely lightweight & compact: weighs under 20g
• Current Rating: 45 Amps continuous, 50 Amps burst, Voltage Rating: 3-6S
• Ultra-low resistance & bigger package MOSFETS (~1mΩ) ensure efficiency, low heat gen and solid heat dissipation
• The greatest power capability for the least size & weight for an Electronic Speed Controller for your UAV!
