1 / 3SABAL 20 Tandem-Rotor Logistics Drone
Model SABAL 20
Electric tandem-rotor VTOL cargo drone: 20 kg payload, 60 kg MTOW, up to 40 min and 10 km, rated to 5,500 m AMSL.
Sold byEndureAir Systems Noida- Airframe type
- variable-pitch tandem-rotor technology
- Max take-off weight
- MTOW 60 Kg
- Flight time
- Flight endurance Up to 40 minutes
- Operating range
- Operational Range Up to 10 km
- Payload capacity
- Payload capacity Up to 20 kg
Price
Price on request
Ask for a quote for your quantity and delivery location.
- Free
- No account
- Vendor replies
Where to buy
Not sold online yet. Ask EndureAir Systems for a quote, delivery and dealers near you with “Get a quote” above.
About this product

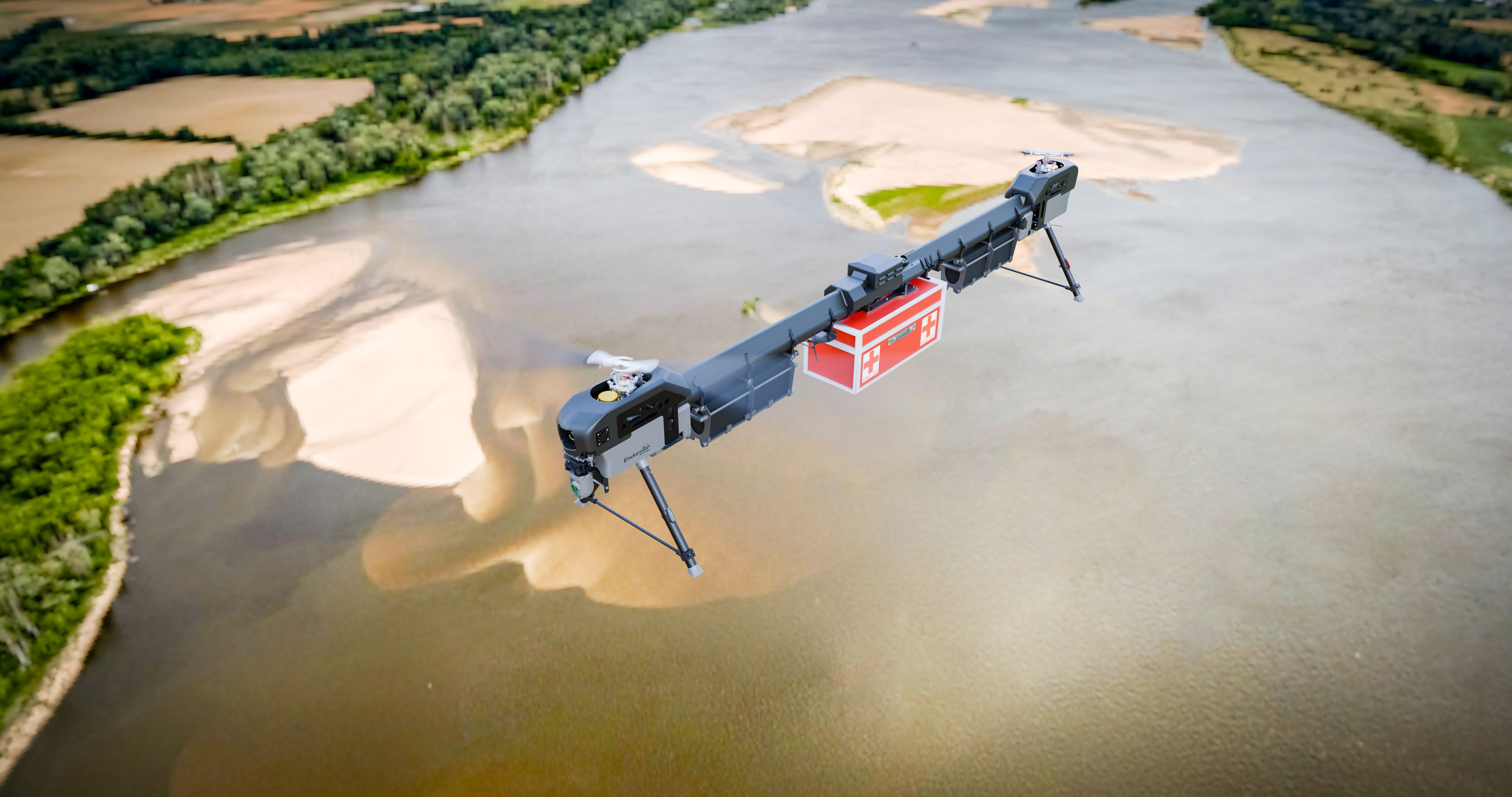

SABAL 20 is an electric logistics UAV from EndureAir that uses two large variable-pitch rotors in a tandem layout. It carries up to 20 kg, about half its 60 kg take-off weight, over an operational range of up to 10 km with up to 40 minutes of flight at speeds up to 50 km/h. It is rated for gusts up to 45 km/h, temperatures from -25 to +55 C and launch altitudes up to 5,500 m AMSL. Safety features include a BVLOS-capable autopilot with dual GPS, automatic return-to-home on link loss or low battery, and a parachute. Typical uses are supply drops to remote sites, moving tools to transmission towers and disaster relief; an EO/IR camera can be fitted.
Specifications
15 of 15 published by the vendor. “Ask the vendor” means the brochure does not say.
General
- Airframe type
- variable-pitch tandem-rotor technology
- Max take-off weight (MTOW)
- MTOW 60 Kg
- DGCA weight class
- MTOW 60 Kg
- Number of rotors
- tandem-rotor
Flight
- Flight time (endurance)
- Flight endurance Up to 40 minutes
- Operating range
- Operational Range Up to 10 km
- Maximum speed
- MAX. SPEED 50 km/h
- Wind resistance
- GUST RESISTANCE Up to 45 km/h
- Service ceiling (AMSL)
- Up to 5,500 m AMSL / 500 m AGL
- Max operating altitude (AGL)
- Up to 5,500 m AMSL / 500 m AGL
Navigation
- Navigation & positioning
- dual-GPS redundancy
Payload
- Payload capacity
- Payload capacity Up to 20 kg
Power
- Power source
- SABAL 20 is an electric heavy-payload UAV
Operations
- BVLOS capable
- A BVLOS-capable autopilot with dual-GPS redundancy
Environment
- Operating temperature
- -25°C to +55°C
Documents and videos
More details
- Made in
- India
