1 / 2Agam DPM02 Digital Power Module with PDB
Model DPM02
Combined I2C digital power module and power distribution board for quadcopters: up to 12S, 100 A rated, XT30 ESC outputs and 5 V 3 A autopilot supply.
Sold byAgam Robotics Bangalore Urban- Weight
- Weight: 70g
- Max (continuous) current
- Rated current: 100A
- Input voltage
- Max input voltage: 60V; Supports up to 12S battery
Price
₹5,000
- Free
- No account
- Vendor replies
Where to buy
Not sold online yet. Ask Agam Robotics for a quote, delivery and dealers near you with “Get a quote” above.
About this product

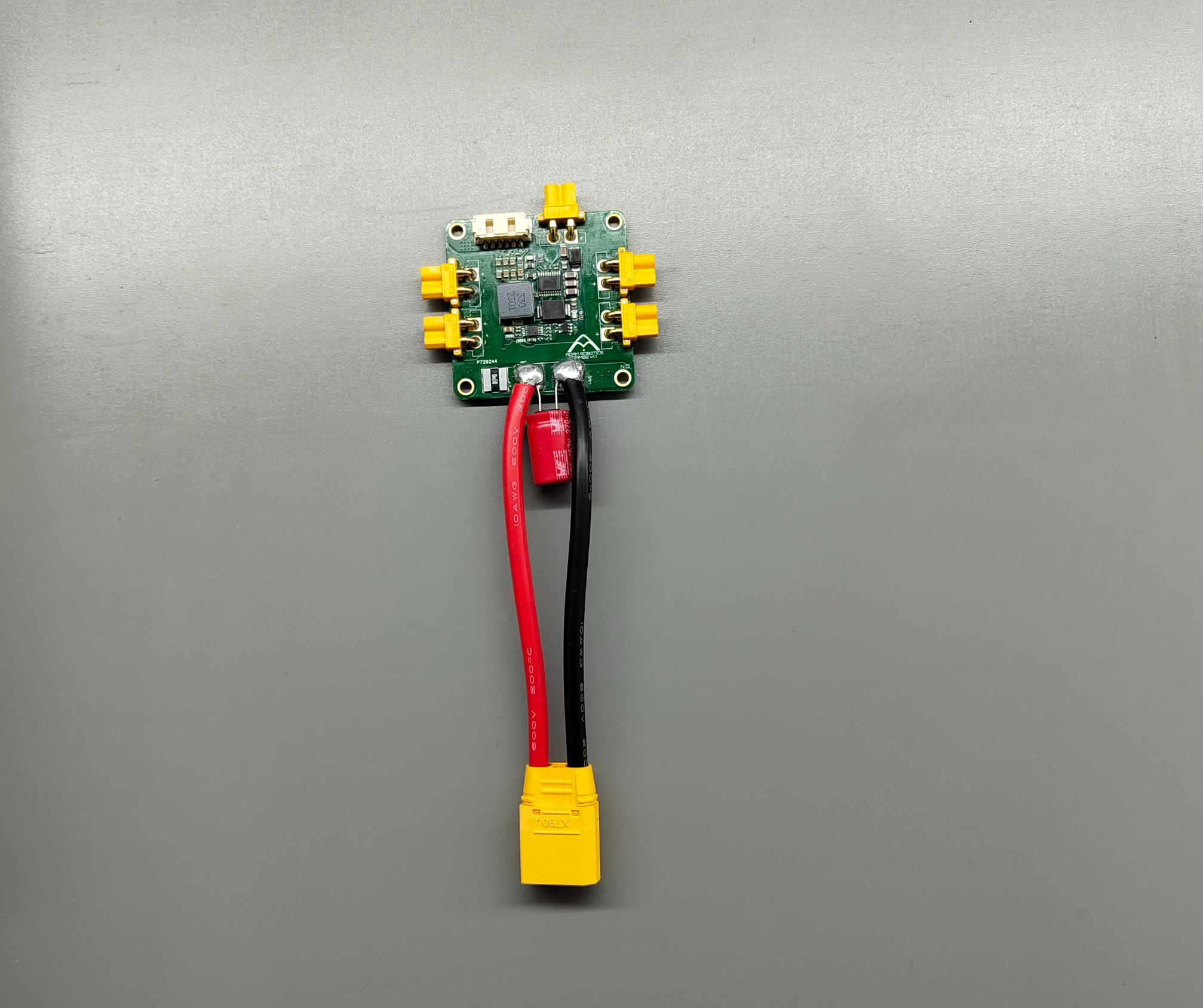

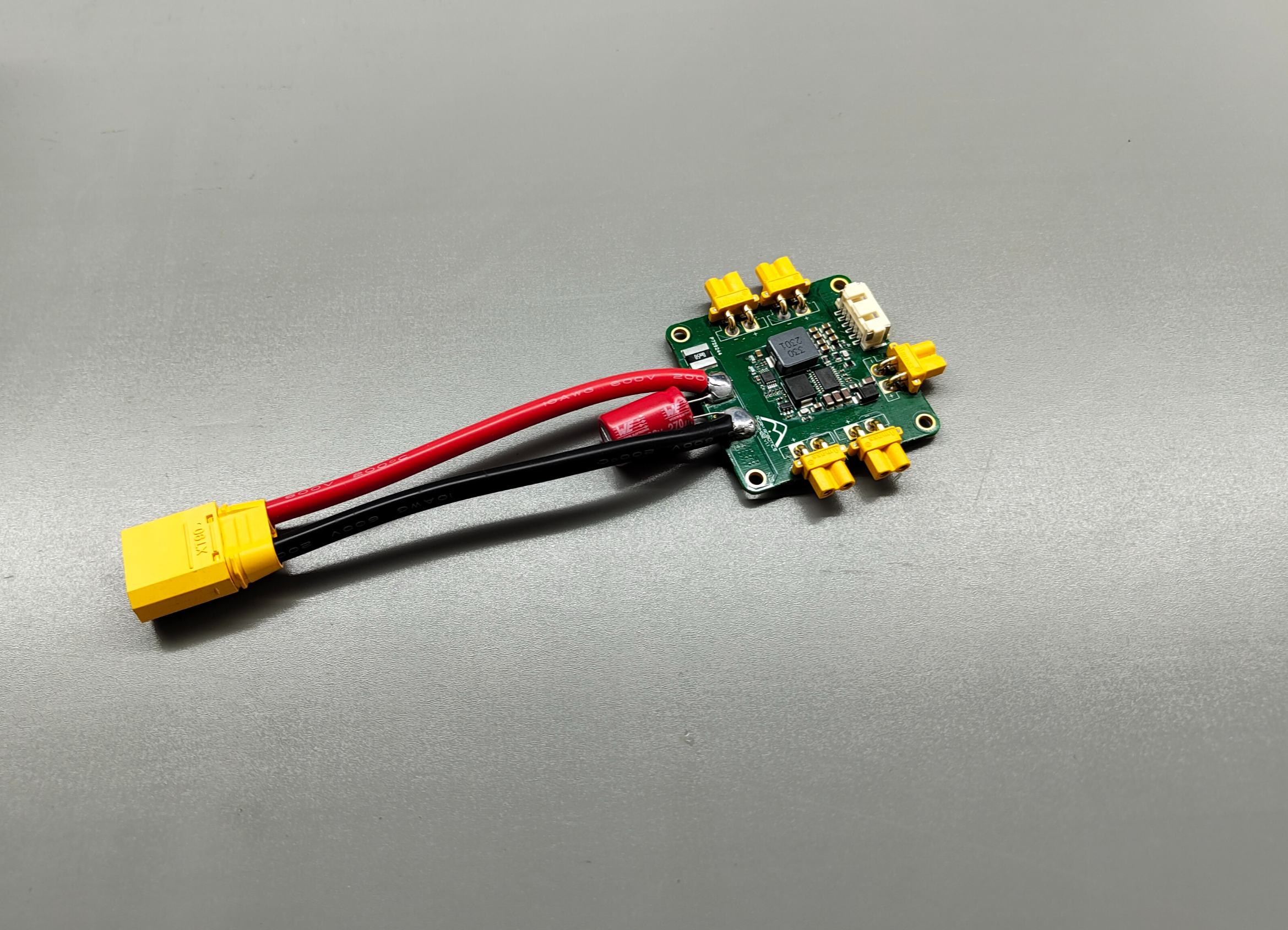

The Agam DPM02 combines a digital power module and a power distribution board on one PCB, meant for quadcopters or smaller layouts built around the Agam Autopilot V6X-RT. Battery power arrives on an XT60 lead and is passed to the motors' ESCs and other devices such as telemetry radios through XT30 outputs. A regulator feeds the autopilot with 5 V at up to 3 A over a Molex connector that matches Agam's carrier board, and voltage and current readings go to the flight controller over I2C. Agam rates it at 100 A, with a maximum input of 60 V and support for batteries up to 12S. It ships with a 270 uF 63 V capacitor and weighs about 70 g.
Specifications
4 of 4 published by the vendor. “Ask the vendor” means the brochure does not say.
General
- Weight
- Weight: 70g
Power
- Max (continuous) current
- Rated current: 100A
- Input voltage
- Max input voltage: 60V; Supports up to 12S battery
- Output voltage
- Molex connector outputs 5V and 3A max
More details
- Made in
- India
