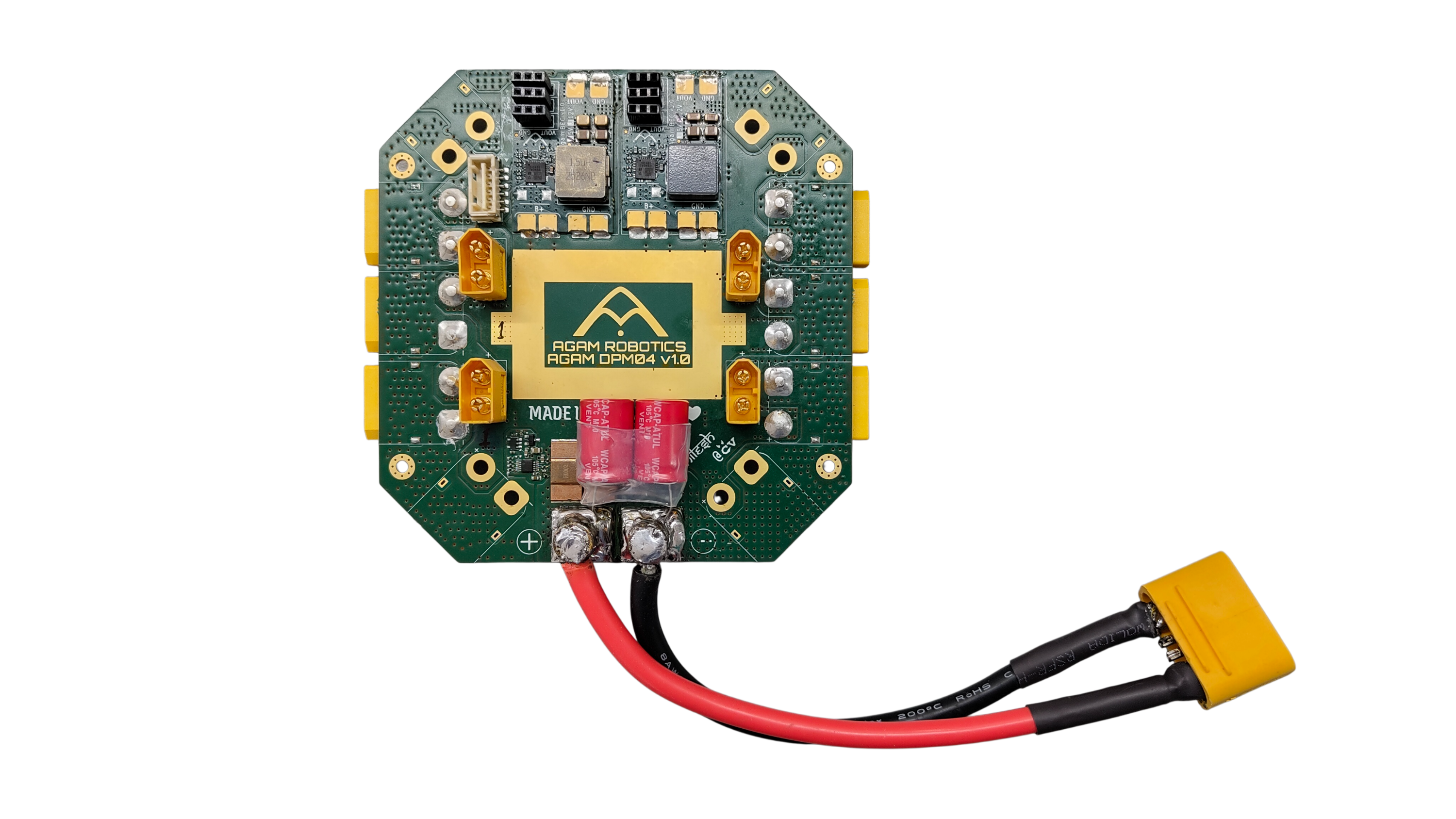

Agam DPM04 Power Distribution Board with Digital Power Module and BECs
Model DPM04
Heavy-lift PDB with I2C power monitoring and 5 V/12 V 8 A BECs: 60 V max input, 300 A rated, about 400 A burst, for quad to octocopters.
Sold byAgam Robotics Bangalore Urban- Weight
- Weight: 220g
- Max (continuous) current
- Rated current: 300A; Burst current: ~400A
- Input voltage
- Max input voltage: 60V
Price
₹22,000
- Free
- No account
- Vendor replies
Where to buy
Not sold online yet. Ask Agam Robotics for a quote, delivery and dealers near you with “Get a quote” above.
About this product
The Agam DPM04 is a large power distribution board that also carries a digital power module and two BECs, aimed at quadcopters, hexacopters, octocopters and other multi-motor layouts. It accepts up to 60 V and is rated for 300 A continuous with bursts of about 400 A; Agam notes that the real limit depends on wire gauge and quotes up to 500 A with 4 AWG wiring. Two BECs supply 5 V and 12 V at 8 A continuous (10 A burst) with over-current, over-voltage and thermal protection and their own heatsinks, and the 5 V rail also powers the Agam Autopilot V6X-RT. Voltage and current go to the flight controller over I2C, with current sensing up to 1500 A supported in PX4. The board is 130 x 125 mm, weighs 220 g and ships with a 1000 uF 100 V capacitor.
Specifications
5 of 5 published by the vendor. “Ask the vendor” means the brochure does not say.
General
- Weight
- Weight: 220g
- Dimensions (L × W × H)
- Board dimensions: 130mm X 125mm
Power
- Max (continuous) current
- Rated current: 300A; Burst current: ~400A
- Input voltage
- Max input voltage: 60V
- Output voltage
- 5V BEC @8A continuous; 12V BEC @8A continuous
More details
- Made in
- India
