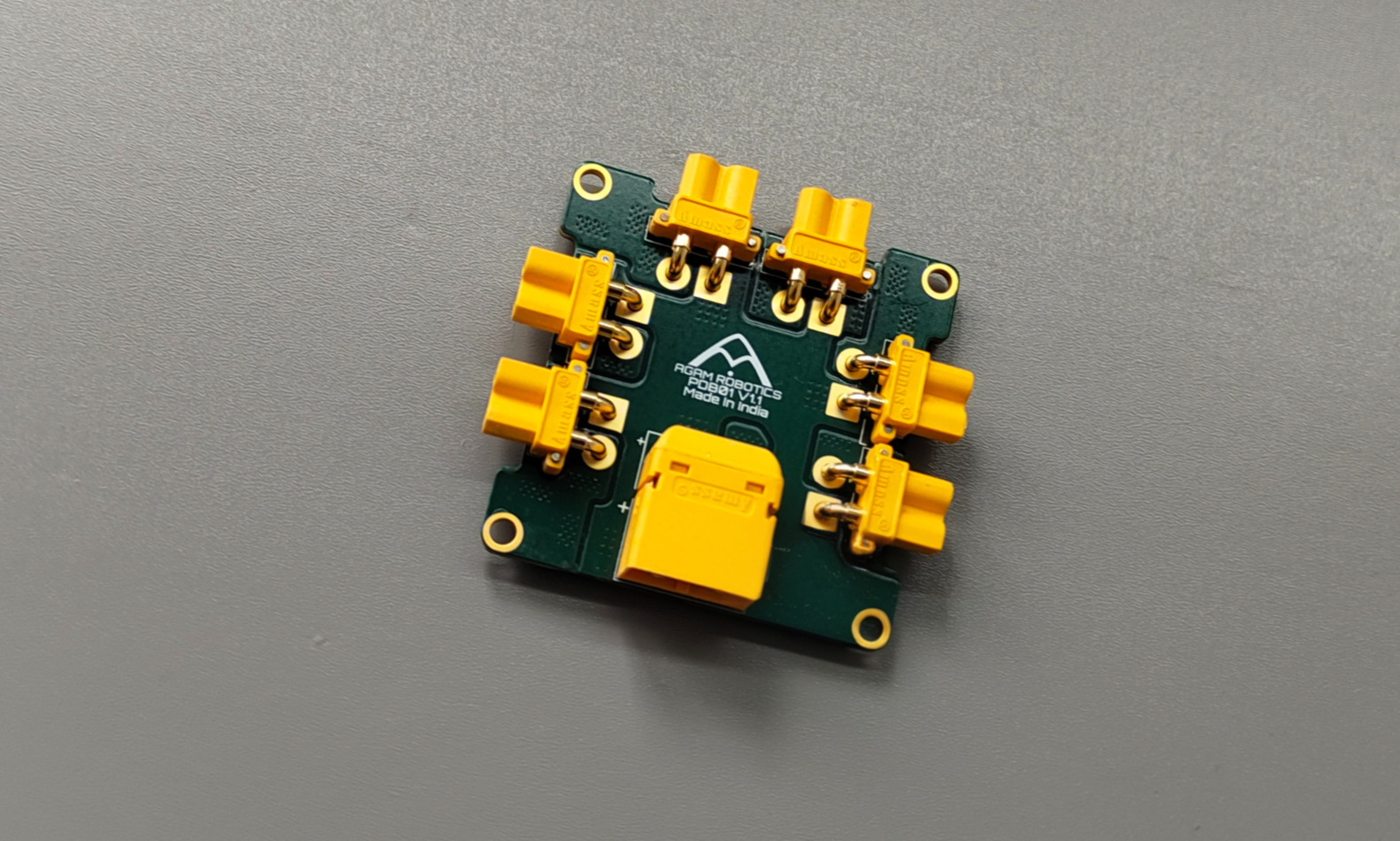

1 / 2AgamPDB01 Power Distribution Board
Model AgamPDB01
Compact power distribution board with six pre-soldered XT30 outputs and XT60 input, 60 A rated (120 A under 60 s), for use with DPM01.
Sold byAgam Robotics Bangalore Urban- Max (continuous) current
- Rated Current: 60A; Max Current: 120A (<60 sec)
Price
₹1,000
- Free
- No account
- Vendor replies
Where to buy
Not sold online yet. Ask Agam Robotics for a quote, delivery and dealers near you with “Get a quote” above.
About this product

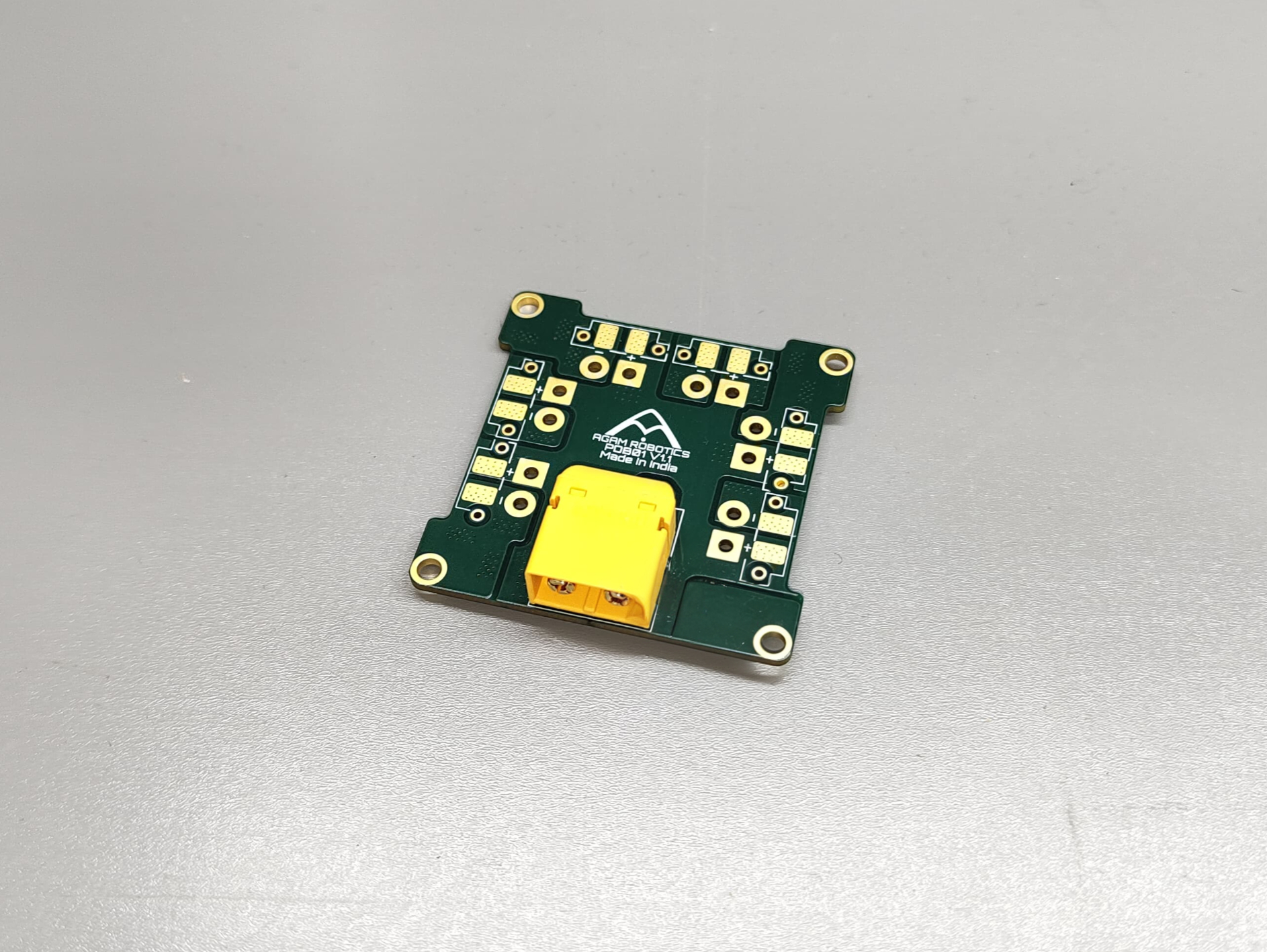

AgamPDB01 is a small power distribution board intended to sit after Agam's DPM01 6S or 12S power module. It comes with an XT60 connector pre-soldered for the power module and battery side and six XT30 connectors for individual ESCs or other devices, so a quadcopter or hexacopter can be wired without soldering. Agam rates it at 60 A continuous and 120 A for under 60 seconds. It uses a 45 x 45 mm mounting-hole pattern, and Agam describes the board as light, durable and resistant to heat, with good electrical insulation. It is designed and made in India.
Specifications
2 of 2 published by the vendor. “Ask the vendor” means the brochure does not say.
General
- Dimensions (L × W × H)
- 45x45mm Mounting Holes
Power
- Max (continuous) current
- Rated Current: 60A; Max Current: 120A (<60 sec)
More details
- Made in
- India
