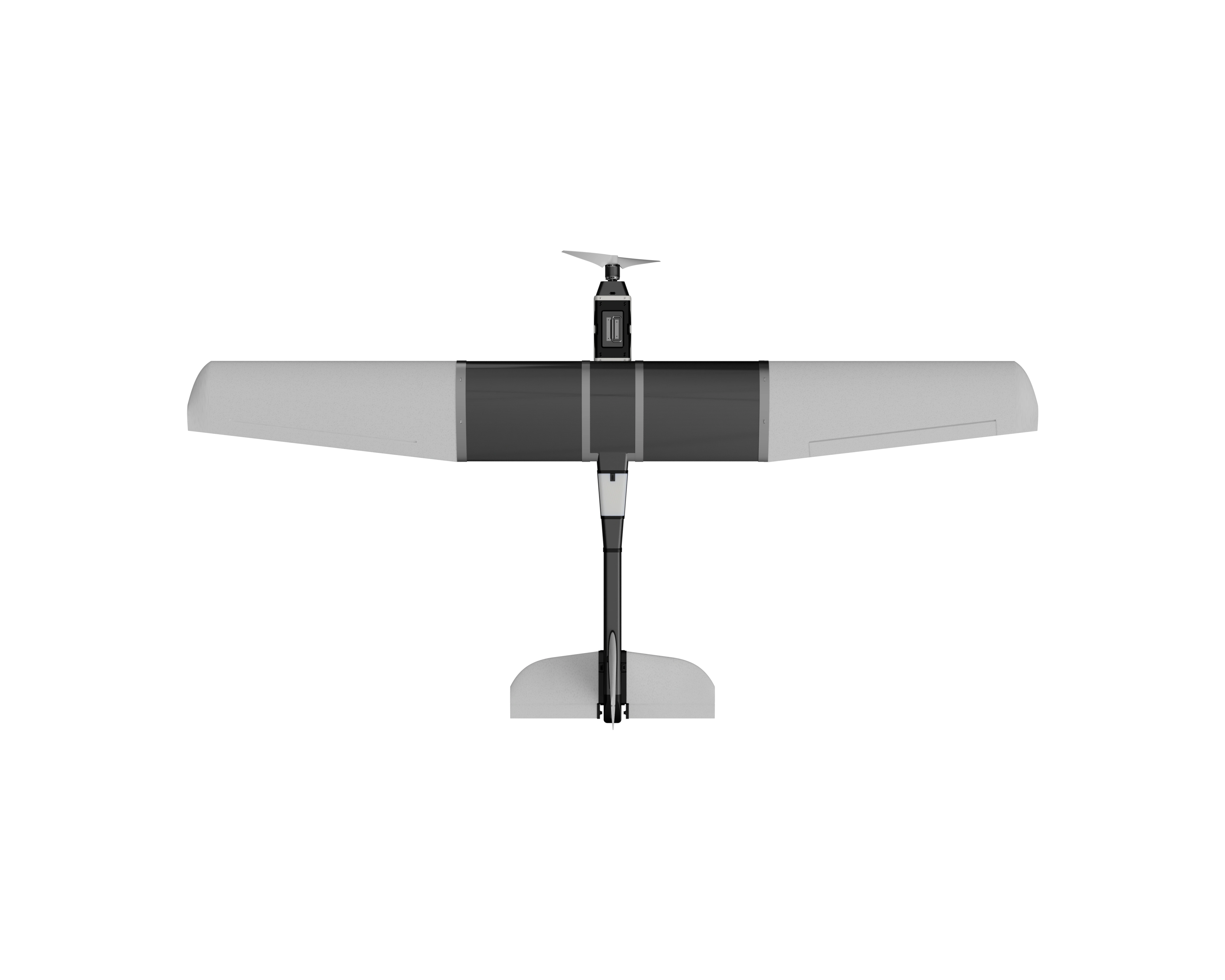

1 / 2Indrones Vector Fixed-Wing ISR UAV
Model Vector
Hand-launched fixed-wing UAV of about 10 kg for long-endurance surveillance and mapping, 150 min flight time, 2 kg payload.
Sold byINDRONES SOLUTIONS PRIVATE LIMITED Vashi- Airframe type
- fixed-wing
- Max take-off weight
- 10 kg
- Flight time
- 150 Minutes
- Operating range
- Flight Range 5 Km
- Payload capacity
- 2kg payload capacity
Price
Price on request
Ask for a quote for your quantity and delivery location.
- Free
- No account
- Vendor replies
Where to buy
Not sold online yet. Ask INDRONES SOLUTIONS PRIVATE LIMITED for a quote, delivery and dealers near you with “Get a quote” above.
About this product
Vector is a hand- or catapult-launched fixed-wing UAV from Indrones for long-duration surveillance, border and maritime patrol, communications relay and corridor mapping. The datasheet gives a maximum take-off weight of 10 kg, a 20,000 mAh battery, 150 minutes flight time, 24 m/s cruise speed and wind resistance up to 14 m/s, with overall dimensions of 2,850 x 1,595 x 540 mm. It carries up to 2 kg and accepts interchangeable payloads including RGB survey, 10x zoom RGB, radiometric thermal, multispectral, oblique and LiDAR sensors. No runway is needed. No DGCA type certificate was found for this model.
Specifications
13 of 13 published by the vendor. “Ask the vendor” means the brochure does not say.
General
- Airframe type
- fixed-wing
- Max take-off weight (MTOW)
- 10 kg
- Dimensions (L × W × H)
- 2850 x 1595x 540 (mm)
Flight
- Flight time (endurance)
- 150 Minutes
- Operating range
- Flight Range 5 Km
- Cruise speed
- 24 m/s
- Wind resistance
- Up to 14 m/s
- Service ceiling (AMSL)
- 4500m AMSL ceiling altitude
- Max operating altitude (AGL)
- 400 ft AGL
Environment
- Ingress protection (IP rating)
- IP 54
- Operating temperature
- -15°C to 45°C
Payload
- Payload capacity
- 2kg payload capacity
Power
- Power source
- Battery 20000 mAh
INDRONES SOLUTIONS PRIVATE LIMITED
Vashi
Indrones is one of the leading drone manufacturers & a cutting-edge drone service provider in India, offering digital s…
Documents and videos
More details
- Made in
- India
Indrones Vector Fixed-Wing ISR UAV
Price on request
