1 / 2Infinity Arsenal Propeller Performance Test Rig
Horizontal-shaft thrust stand for 10-56 inch propellers up to 100 kgf, logging RPM, current and voltage at up to 1000 samples/s.
Sold byInfinity Arsenal ChennaiPrice
Price on request
Ask for a quote for your quantity and delivery location.
- Free
- No account
- Vendor replies
Where to buy
Not sold online yet. Ask Infinity Arsenal for a quote, delivery and dealers near you with “Get a quote” above.
About this product

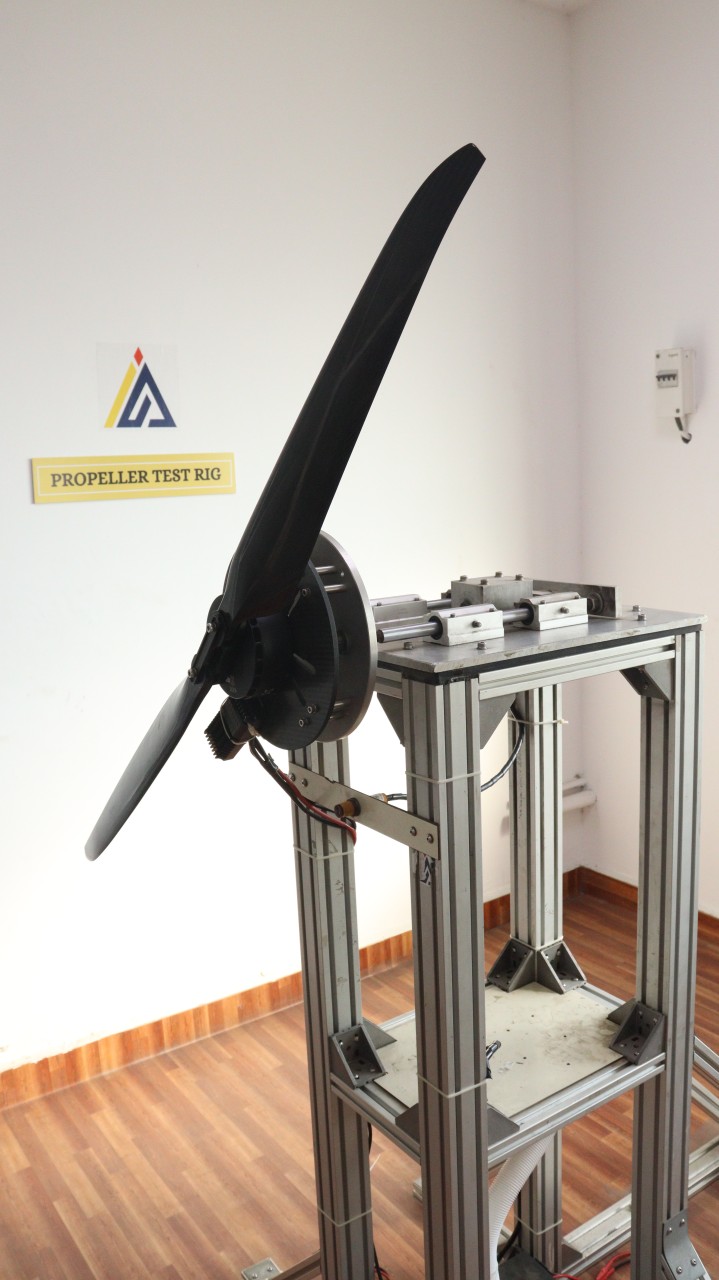

Infinity Arsenal's propeller performance test rig is a horizontal-shaft stand for measuring how drone propellers and motors perform before they go on an aircraft. It takes propellers from 10 to 56 inches, measures thrust up to 100 kgf with 0.01 kg resolution, and logs speed from 100 to 20,000 RPM, current from 0.5 to 100 A and voltage from 12 to 75 V DC, at up to 1000 samples per second. Power comes from an AC-DC converter. It is meant for thrust and power-consumption tests, propeller efficiency comparison and propulsion R&D. The company also offers testing on the rig as a service.
Specifications
1 of 1 published by the vendor. “Ask the vendor” means the brochure does not say.
Other
- Compatible with
- Diameter of propeller 10 inch to 56 inch; Thrust capacity 100 Kgf; RPM 100-20,000; Current 0.5 - 100; Voltage 12 - 75 VDC
Infinity Arsenal
Chennai
Welcome to Infinity Arsenal Private Limited, your ultimate destination for revolutionary drone technology.
More details
- Made in
- India
Infinity Arsenal Propeller Performance Test Rig
Price on request
