1 / 2RD MI-4006 Motor
390 KV UAV motor with 2.3 kg maximum thrust, 660W peak power, and 69 g weight.
Sold byReflex Drive- Weight
- 69 g
- Motor KV
- 390 KV
- Max thrust
- 2.3 kg
- Stator size
- 4006
Price
Price on request
Ask for a quote for your quantity and delivery location.
- Free
- No account
- Direct reply
Where to buy
About this product

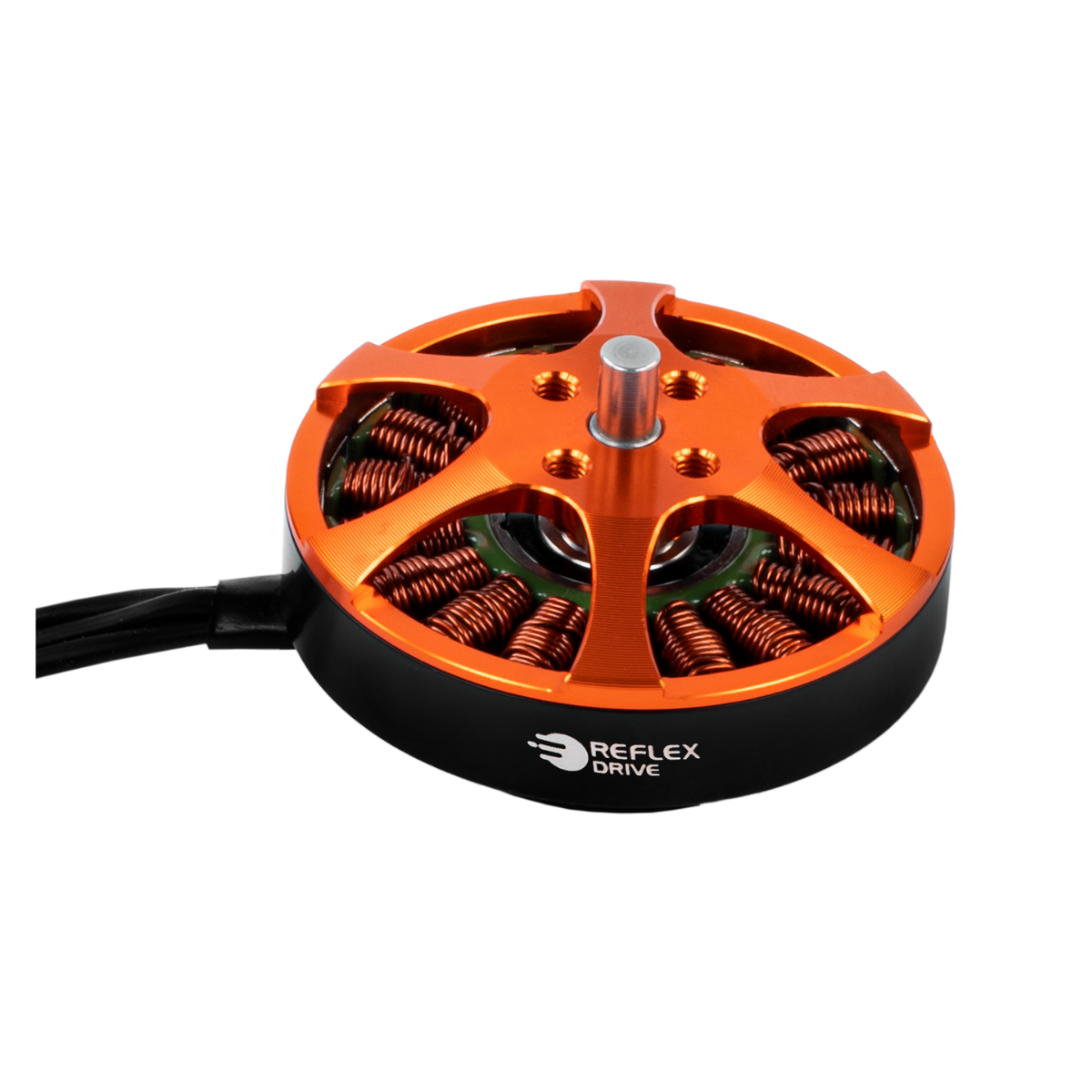

The RD MI-4006 is a 390 KV outrunner BLDC motor for multi-rotor UAV platforms. It weighs 69 g with cable, delivers up to 660 W peak power, and reaches 2.3 kg maximum thrust. Reflex Drive publishes compatibility with 4S-6S packs and 15-17 inch propellers for light industrial platforms.
Key features
- 390 KV setup for 4S-6S platforms
- 2.3 kg maximum thrust
- 660 W peak power
- 90.99 percent peak efficiency
- 69 g lightweight motor body
- 100 percent copper winding
Specifications
8 of 8 published by the vendor. “Ask the vendor” means the brochure does not say.
General
- Weight
- 69 g
Motor
- Motor KV
- 390 KV
- Max thrust
- 2.3 kg
- Stator size
- 4006
- Max power
- 660 W
- Max (continuous) current
- 27.5 A
- Supported cells (S)
- 4–6 S
- Recommended propeller
- 15"-17"
