1 / 2RD MI-5008 Motor
340 KV industrial UAV motor with 1224W peak power, 6S support, and 17x60 prop compatibility.
Sold byReflex Drive- Weight
- 135 g
- Motor KV
- 340 KV
- Stator size
- 5008
Price
Price on request
Ask for a quote for your quantity and delivery location.
- Free
- No account
- Direct reply
Where to buy
About this product

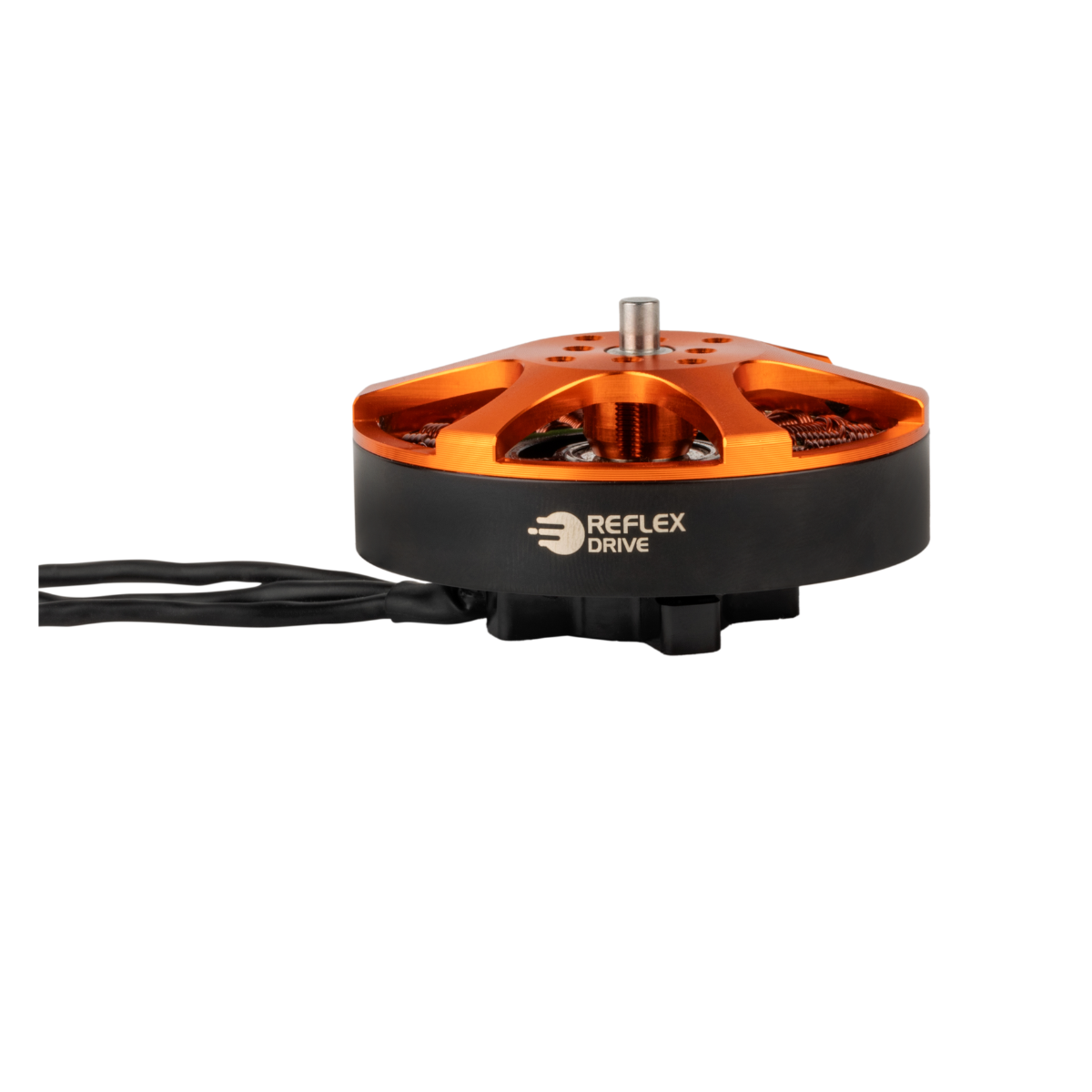

The RD MI-5008 is a 340 KV outrunner BLDC motor engineered for agricultural and industrial drone applications. At 135 g with cable, it produces up to 1224 W peak power on 6S LiPo packs and is intended for 17x60 folding propellers. Reflex Drive publishes motor efficiency, voltage, current, and platform class data, but does not publish a single-product maximum thrust figure on the product page.
Key features
- 340 KV setup for 6S drone platforms
- 1224 W peak power
- 90.99 percent motor efficiency
- 135 g motor with cable
- 17x60 folding propeller recommendation
- Designed for agriculture and industrial airframes
Specifications
7 of 7 published by the vendor. “Ask the vendor” means the brochure does not say.
General
- Weight
- 135 g
Motor
- Motor KV
- 340 KV
- Stator size
- 5008
- Max power
- 1224 W
- Max (continuous) current
- 51 A
- Supported cells (S)
- 6S
- Recommended propeller
- 17x60 folding
Need a spec that isn't listed?
