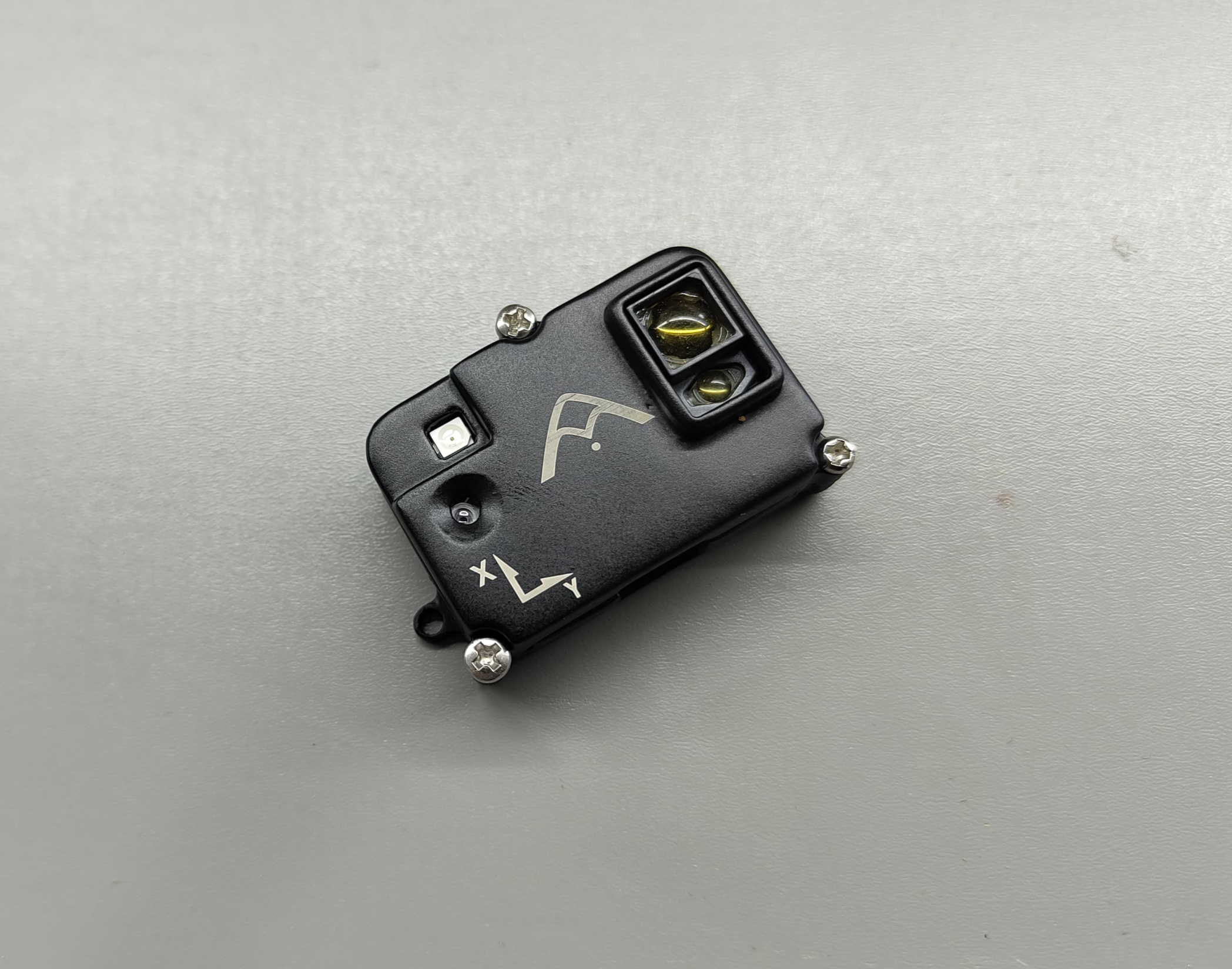

Agam FloRange Optical Flow and Distance Sensor
Model FloRange
CAN optical-flow and laser time-of-flight distance sensor (PixArt PAA3905E1 + Broadcom AFBR-S50) with IMU and IR LED; range up to 30 m, 9.4 g.
Sold byAgam Robotics Bangalore Urban- Weight
- Weight including the enclosure - 9.38g
- Sensor type
- PixArt PAA3905E1 Optical Flow Sensor; Broadcom AFBR-S50LV85D Time-of-Flight Distance Sensor; 6-axis IMU ICM-42688-P
- Detection range
- Typical distance range up to 30m
Price
₹15,000
- Free
- No account
- Vendor replies
Where to buy
Not sold online yet. Ask Agam Robotics for a quote, delivery and dealers near you with “Get a quote” above.
About this product
The Agam FloRange is a small CAN-bus sensor that combines optical flow and laser distance measurement to help drones hold position and height, especially where GNSS is weak. A PixArt PAA3905E1 optical-flow sensor tracks ground movement from 80 mm upward without focal calibration, while a Broadcom AFBR-S50LV85D time-of-flight sensor with an 850 nm Class 1 laser measures distance at up to 3 kHz, with a typical range of 30 m and up to 100 m unambiguous range in dual-frequency mode. An ICM-42688-P six-axis IMU and an infrared LED for low light are built in. It runs on 5 V, weighs 9.38 g with its enclosure and measures 44.95 x 29.4 x 15.59 mm. Agam makes it in India.
Specifications
5 of 5 published by the vendor. “Ask the vendor” means the brochure does not say.
General
- Weight
- Weight including the enclosure - 9.38g
- Dimensions (L × W × H)
- Dimensions: L x W x H - 44.95mm x 29.4mm x 15.59mm
Sensor
- Sensor type
- PixArt PAA3905E1 Optical Flow Sensor; Broadcom AFBR-S50LV85D Time-of-Flight Distance Sensor; 6-axis IMU ICM-42688-P
- Detection range
- Typical distance range up to 30m
- Interfaces & ports
- small formfactor CAN based optical flow and distance sensor module
Documents and videos
More details
- Made in
- India
