Agam GNSS01 CAN GNSS Module
Model GNSS01 CAN
DroneCAN GNSS module with u-blox M9N receiver, BMM350 compass, BMP390 barometer and ICM-42688-P IMU, safety switch and buzzer; up to 10 Hz.
Sold byAgam Robotics Bangalore Urban- Weight
- 38.2g (with enclosures)
- GNSS constellations
- concurrent reception of 4 GNSS (GPS, Galileo, GLONASS, BeiDou); SBAS: WAAS, EGNOS, MSAS, QZSS
- RTK / PPK
- Ultra-robust meter-level GNSS positioning (no RTK)
Price
₹16,000
- Free
- No account
- Vendor replies
Where to buy
Not sold online yet. Ask Agam Robotics for a quote, delivery and dealers near you with “Get a quote” above.
About this product

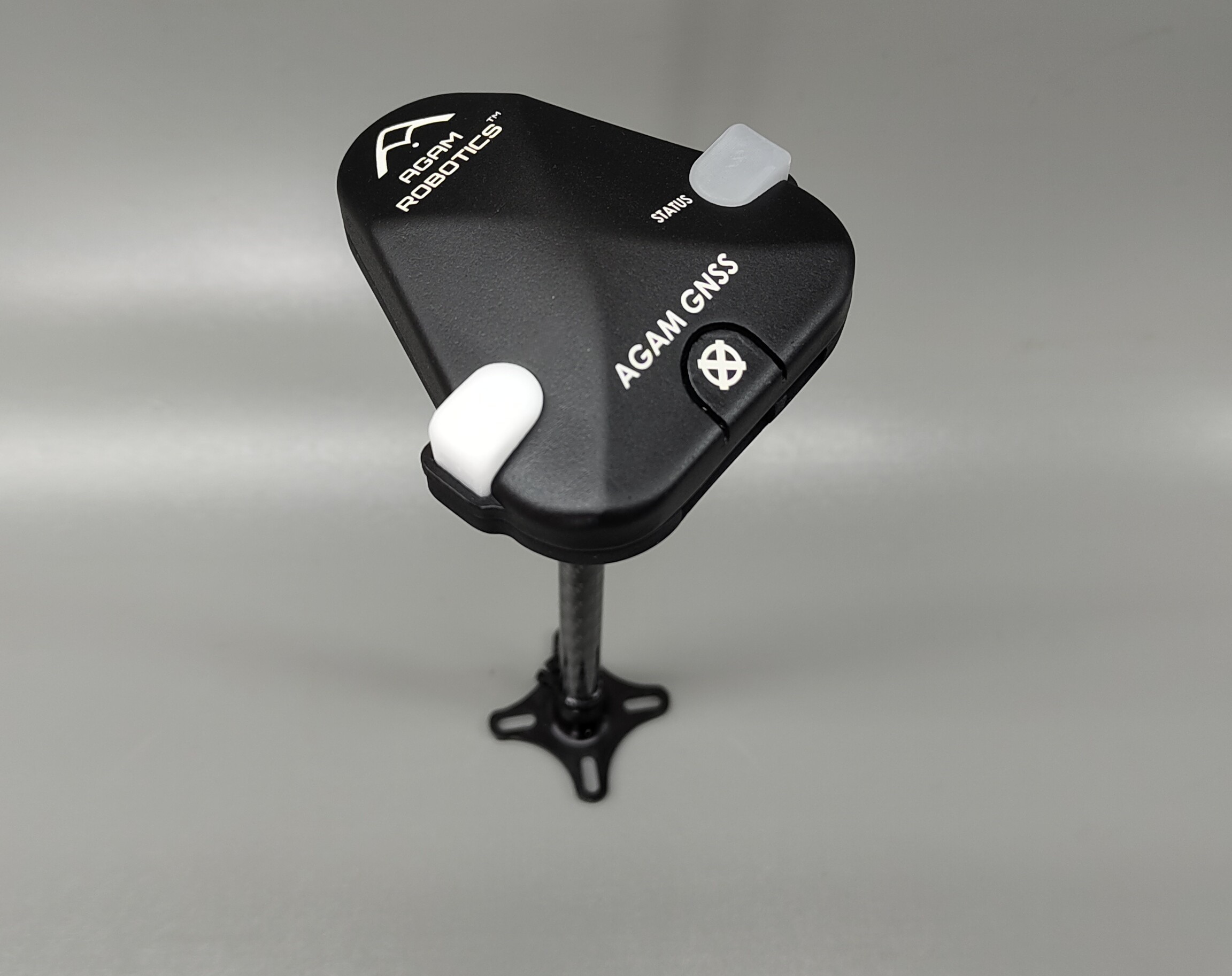

The Agam GNSS01 CAN is a GNSS module for CAN-based autopilots such as the Agam Autopilot V6X-RT. It uses a u-blox M9N receiver that tracks GPS, Galileo, GLONASS and BeiDou at the same time, with SBAS and QZSS augmentation, spoofing and jamming detection and up to 32 satellites. The housing also contains a Bosch BMM350 magnetometer, a Bosch BMP390 barometer and an InvenSense ICM-42688-P IMU, plus a safety switch and buzzer, and its shape gives a visual cue for mounting orientation. Navigation updates run at 5 Hz by default and up to 10 Hz. It connects through a Pixhawk-standard 4-pin JST-GH CAN connector, runs on 5 V and weighs 38.2 g with its enclosure.
Specifications
5 of 5 published by the vendor. “Ask the vendor” means the brochure does not say.
General
- Weight
- 38.2g (with enclosures)
GNSS
- GNSS constellations
- concurrent reception of 4 GNSS (GPS, Galileo, GLONASS, BeiDou); SBAS: WAAS, EGNOS, MSAS, QZSS
- RTK / PPK
- Ultra-robust meter-level GNSS positioning (no RTK)
- Update rate
- Navigation Update - 5Hz Default (10Hz MAX)
- Interfaces & ports
- 4 Pin JST GH Pixhawk Standard CAN Connector
Documents and videos
More details
- Made in
- India
