1 / 4Flameback 4220 KV400 BLDC Motor
Model FBT-BLDC-4220-400
Flameback 4220 KV400 brushless motor for 6S medium-lift and agricultural drones, about 5 kgf max thrust on 16 inch props, 285 g.
Sold byFlameback Tech Baddi- Weight
- Weight incl. cables 285 g
- Motor KV
- 4220 KV 400
- Max thrust
- Max Thrust: 4996 gF
- Stator size
- 42 × 20 mm stator
Price
Price on request
Ask for a quote for your quantity and delivery location.
- Free
- No account
- Vendor replies
Where to buy
Not sold online yet. Ask Flameback Tech for a quote, delivery and dealers near you with “Get a quote” above.
About this product

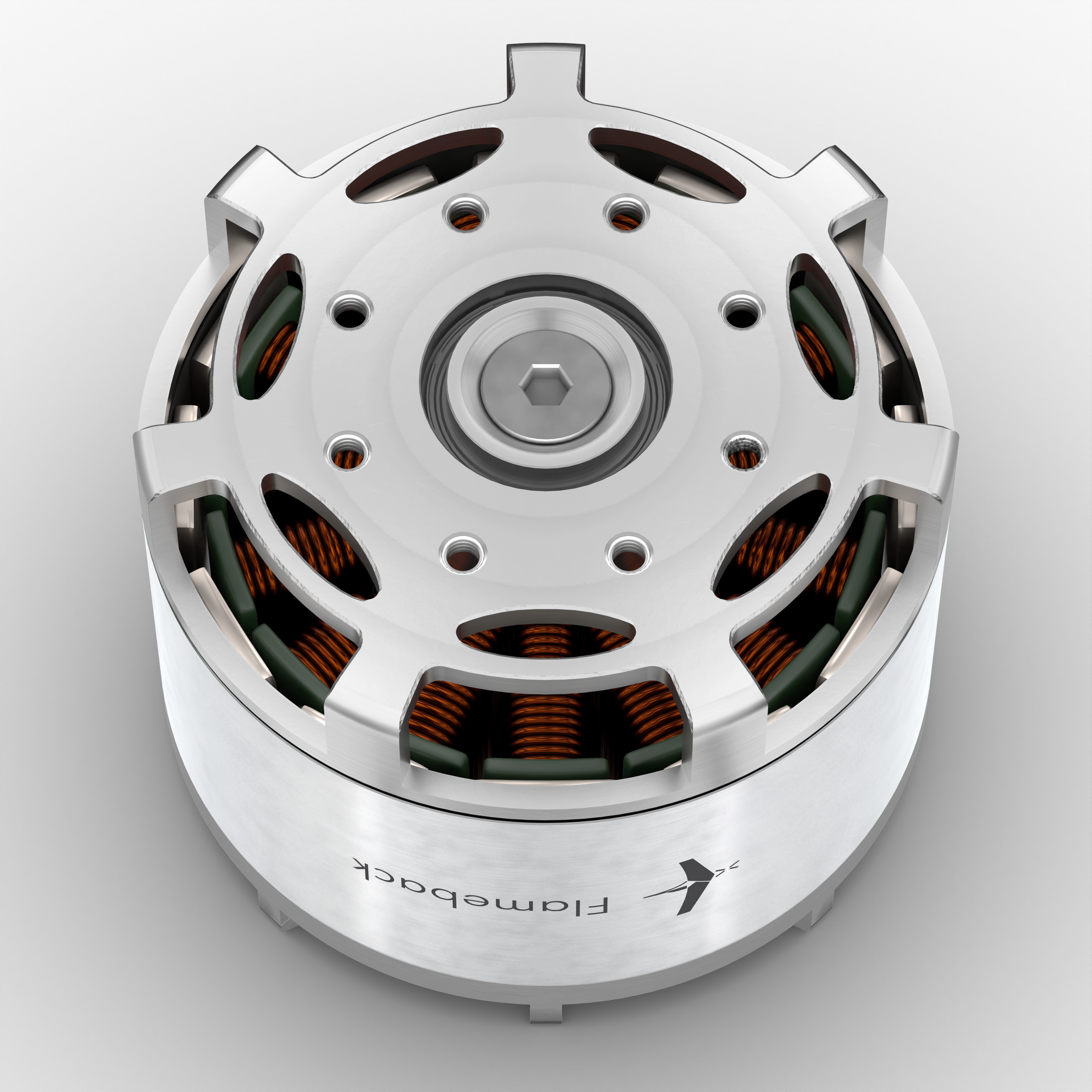

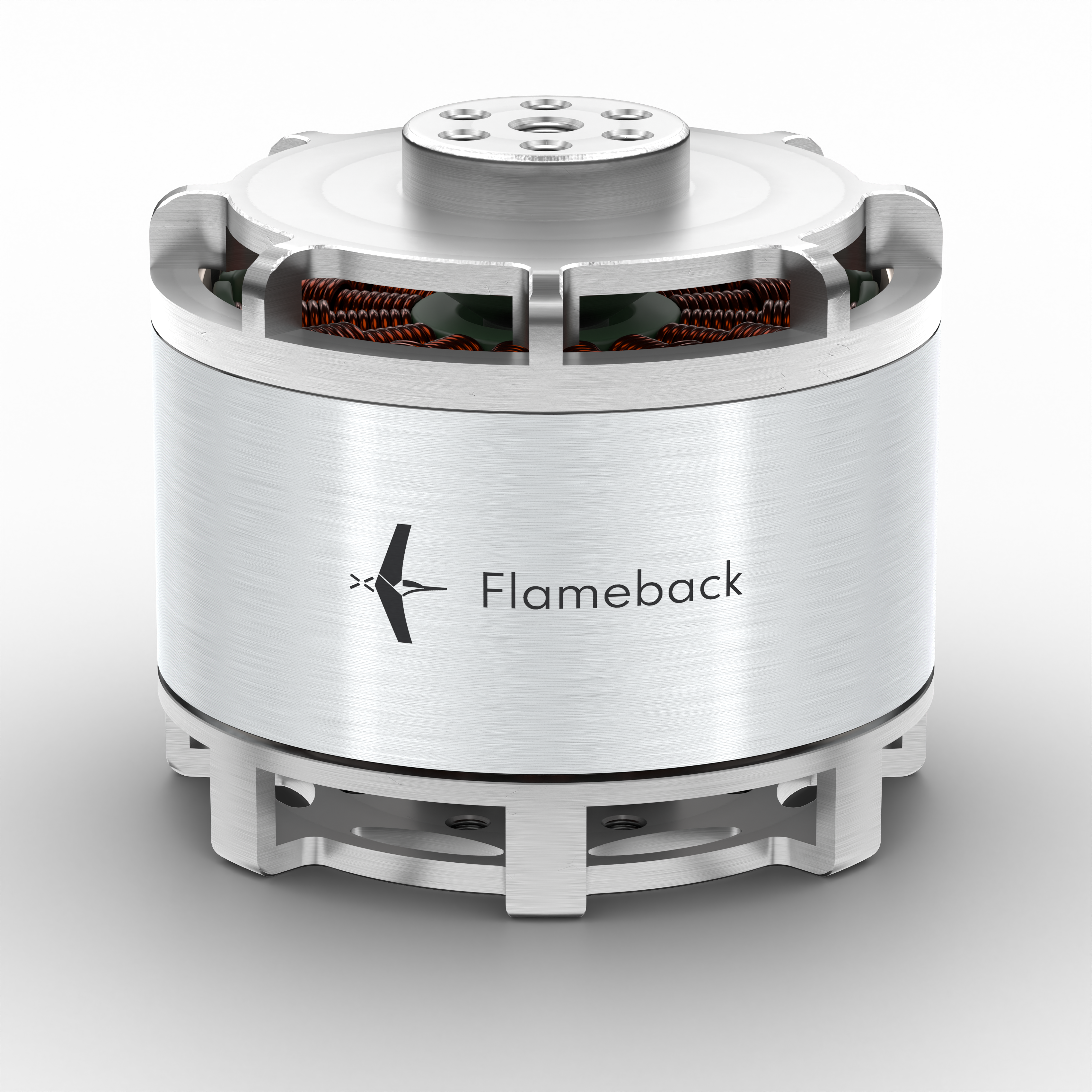

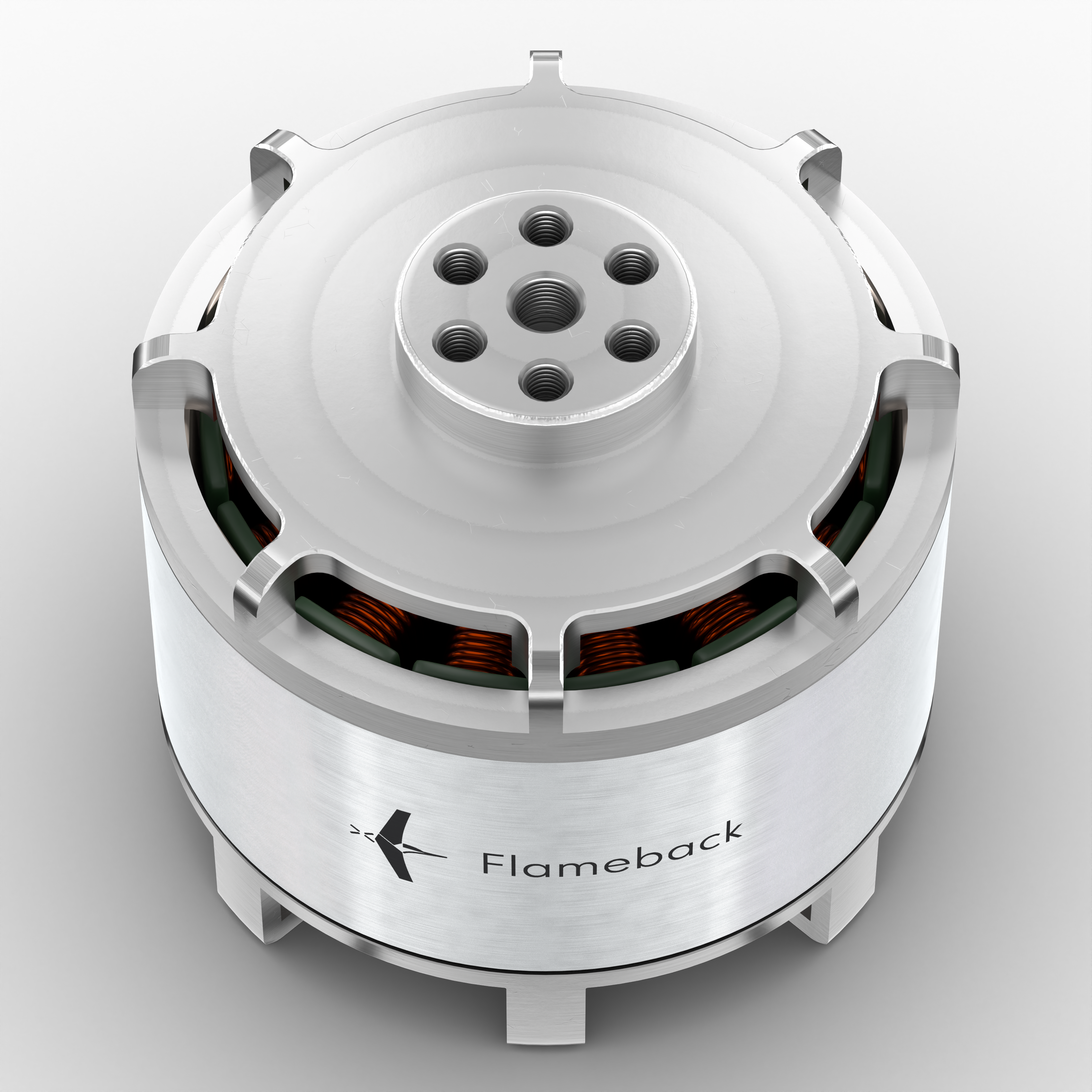

The Flameback 4220 KV400 is a 42x20 mm stator motor for 6S agricultural, inspection and medium-lift logistics drones that carry cameras, LiDAR or other sizeable payloads. In the maker's test with a 1655 folding prop it reached 4996 g at full throttle and about 2004 g at half throttle, drawing up to roughly 56 A. Flameback rates it at 60 A maximum current and 1500 W, and lists 285 g with cables and a 12N14P winding. It is paired with the Flameback 60A ESC.
Specifications
8 of 8 published by the vendor. “Ask the vendor” means the brochure does not say.
General
- Weight
- Weight incl. cables 285 g
Motor
- Motor KV
- 4220 KV 400
- Max thrust
- Max Thrust: 4996 gF
- Stator size
- 42 × 20 mm stator
- Max power
- Max Power (Tested) 1500 W
- Max (continuous) current
- Max Current: 60A
- Supported cells (S)
- Operating Voltage: 6S
- Recommended propeller
- Recommended Props: 16 inch; Tarrot 1655 foldable
Flameback Tech
Baddi
Indian maker of BLDC drone motors, ESCs and propulsion parts, with its registered office and factory address in Baddi, Himachal Pradesh.
Documents and videos
More details
- Made in
- India
