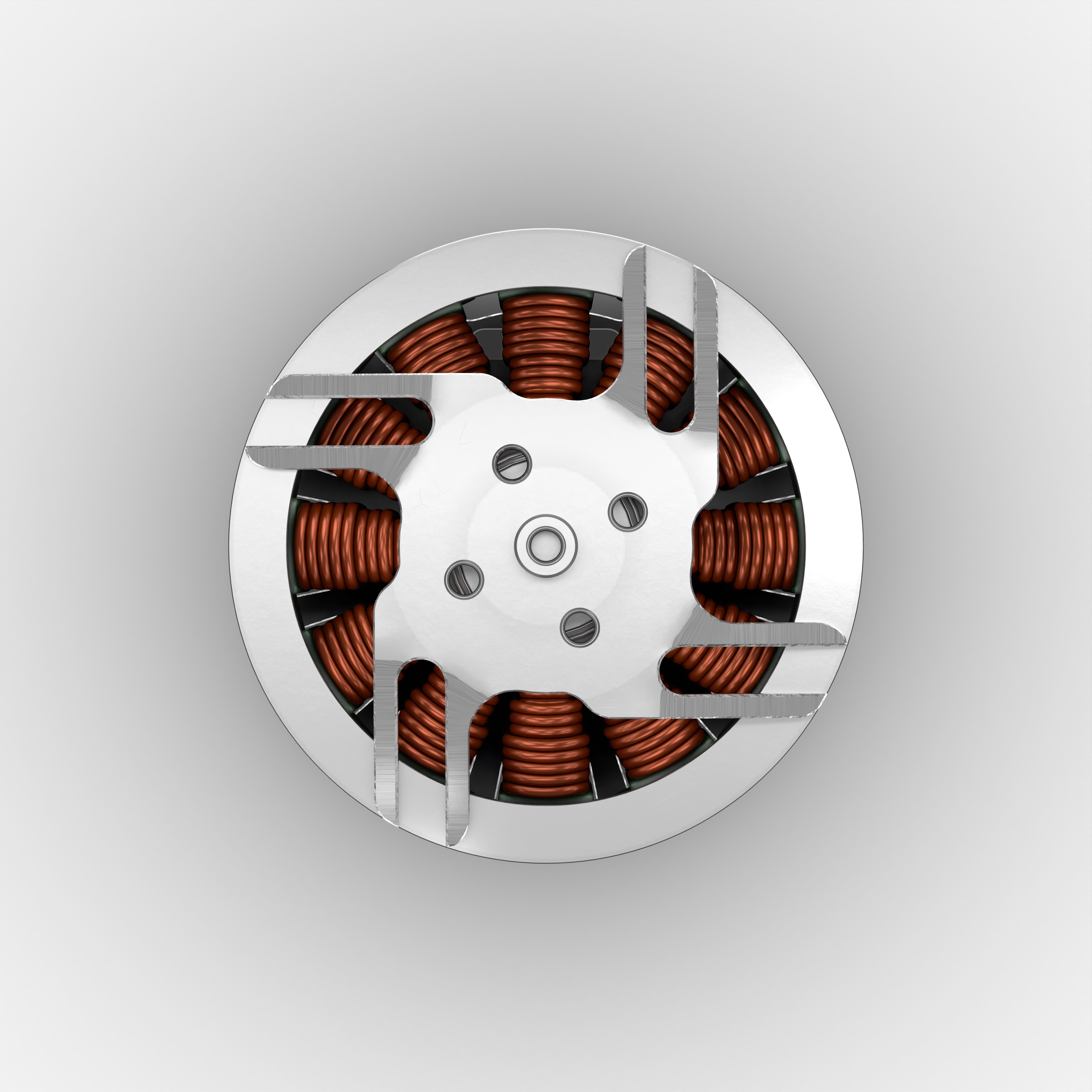

1 / 2Flameback 3120 KV1000 BLDC Motor
Model FBT-BLDC-3120-1000
Flameback 3120 KV1000 brushless motor for 6S performance VTOLs and payload drones, about 4.5 kgf on a 10 inch tri-blade, up to 90 A.
Sold byFlameback Tech Baddi- Weight
- Weight incl. cables 180 g
- Motor KV
- 3120 KV 1000
- Max thrust
- Thrust 4546 g at 100% throttle (prop: tri-blade 1050)
- Stator size
- 31×20 stator
Price
Price on request
Ask for a quote for your quantity and delivery location.
- Free
- No account
- Vendor replies
Where to buy
Not sold online yet. Ask Flameback Tech for a quote, delivery and dealers near you with “Get a quote” above.
About this product
The KV1000 winding of the Flameback 3120 trades the KV500's efficiency for higher RPM and faster thrust response, and is aimed at performance VTOLs and payload drones on 6S. In the maker's catalogue test with a 10x5 tri-blade prop it produced 4546 g at full throttle and about 2064 g at half throttle, drawing close to 85 A at the top. Flameback rates it at 90 A maximum current and 2000 W tested peak power, lists 180 g with cables and a 12N14P winding, and suggests a 120 A class ESC. The catalogue also includes a second test with an 18 inch prop.
Specifications
8 of 8 published by the vendor. “Ask the vendor” means the brochure does not say.
General
- Weight
- Weight incl. cables 180 g
Motor
- Motor KV
- 3120 KV 1000
- Max thrust
- Thrust 4546 g at 100% throttle (prop: tri-blade 1050)
- Stator size
- 31×20 stator
- Max power
- Max Power (Tested) 2000 W (1000 KV)
- Max (continuous) current
- Max Current: 90A (1000 KV)
- Supported cells (S)
- Operating Voltage: 6S
- Recommended propeller
- Recommended Props: 10 inch (1000 KV)
Flameback Tech
Baddi
Flameback Tech delivers UAV components including ESCs, BLDC motors, propellers & controllers.
Documents and videos
More details
- Made in
- India
