1 / 3Flameback 3120 KV500 BLDC Motor
Model FBT-BLDC-3120-500
Flameback 3120 KV500 brushless motor for 6S heavy quadcopters and VTOLs, up to 2.4 kg thrust and 500 W on 11 inch props.
Sold byFlameback Tech Baddi- Weight
- Weight incl. cables 180 g
- Motor KV
- 3120 KV 500
- Max thrust
- up to 2.4 kg thrust with a 500 KV rating
- Stator size
- 31 × 20 mm stator
Price
Price on request
Ask for a quote for your quantity and delivery location.
- Free
- No account
- Vendor replies
Where to buy
Not sold online yet. Ask Flameback Tech for a quote, delivery and dealers near you with “Get a quote” above.
About this product

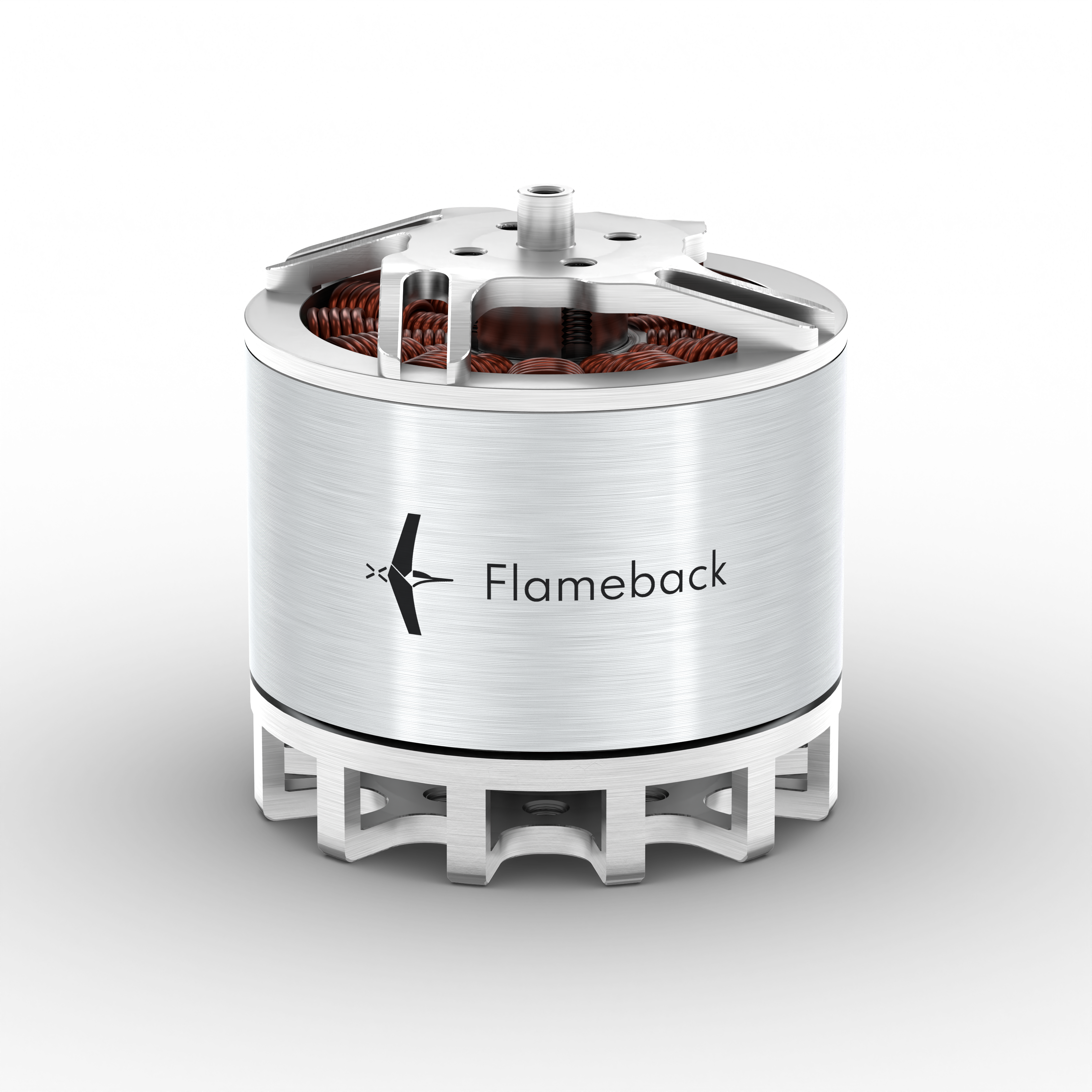

The Flameback 3120 KV500 uses a 31x20 mm stator and 12N14P winding for 6S quadcopters, VTOL lift units and industrial drones that need efficient lift on larger props. The maker states up to 2.4 kg of thrust and 500 W continuous output with an 11 inch prop, and its catalogue lists a 1145 prop for this winding and a 180 g weight with cables. Flameback describes a cooling structure with an impact-resistant build for long flights. A faster KV1000 version is listed separately.
Specifications
7 of 7 published by the vendor. “Ask the vendor” means the brochure does not say.
General
- Weight
- Weight incl. cables 180 g
Motor
- Motor KV
- 3120 KV 500
- Max thrust
- up to 2.4 kg thrust with a 500 KV rating
- Stator size
- 31 × 20 mm stator
- Max power
- 500 W continuous output
- Supported cells (S)
- Operating Voltage: 6S
- Recommended propeller
- Recommended Props: 11 inch (500 KV); 1145 (500 KV)
Flameback Tech
Baddi
Flameback Tech delivers UAV components including ESCs, BLDC motors, propellers & controllers.
Documents and videos
More details
- Made in
- India
