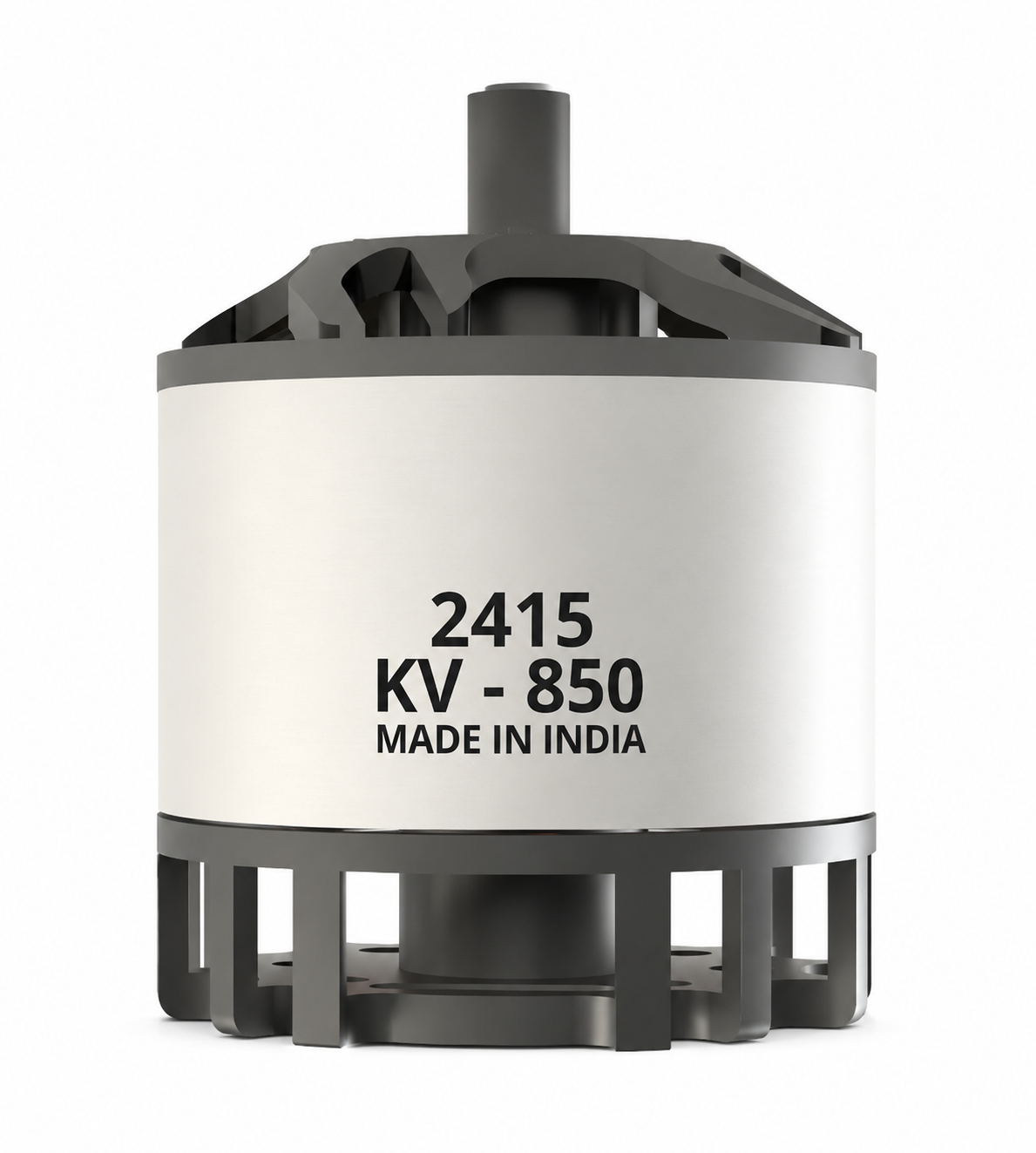

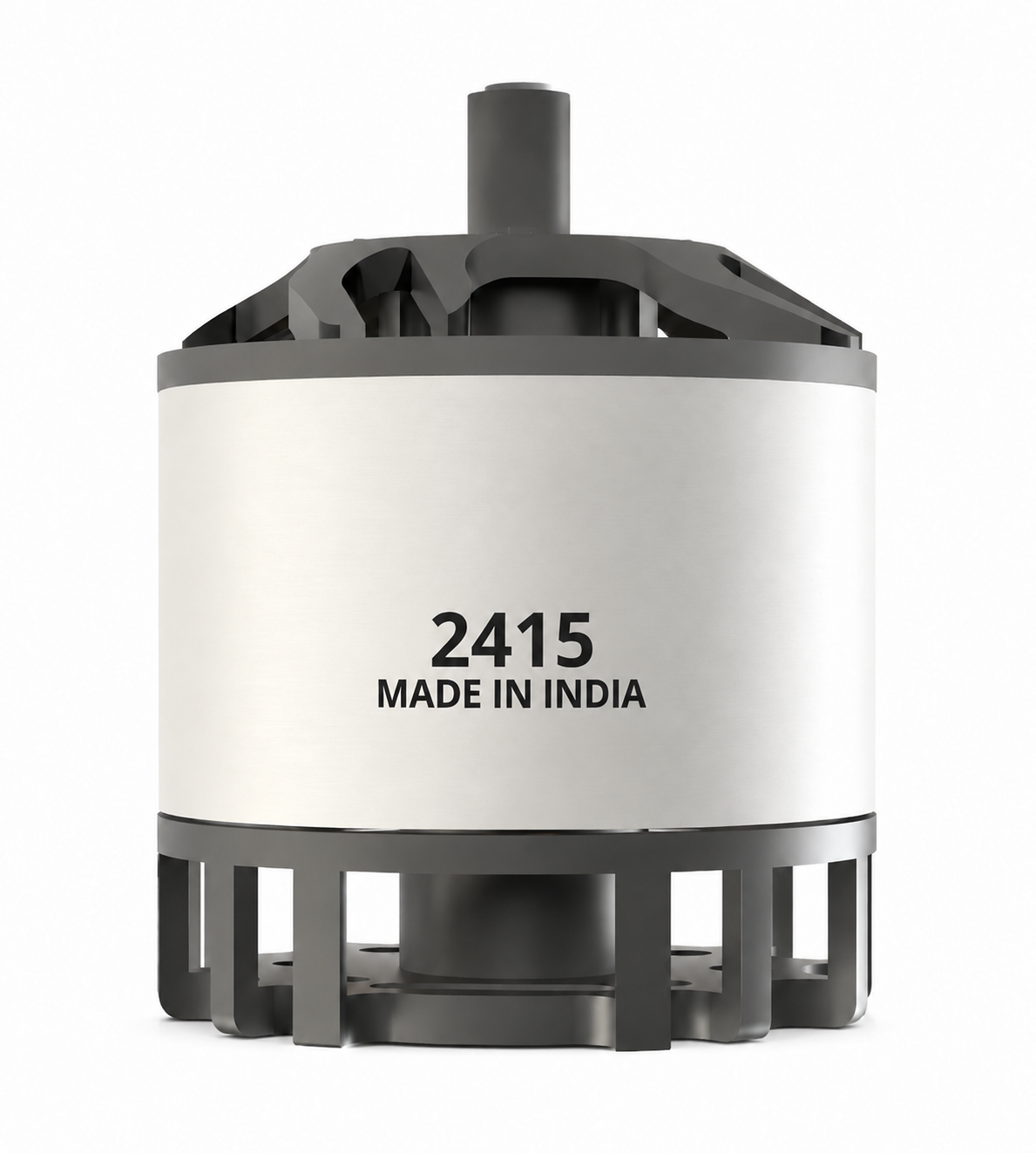

1 / 3Flameback 2415 KV850 BLDC Motor
Model FBT-BLDC-2415-850
Flameback 2415 KV850 brushless motor for 4S mapping drones, fixed-wings and VTOLs, 1.86 kgf max thrust on 11 inch props.
Sold byFlameback Tech Baddi- Weight
- Weight incl. cables 80 g
- Motor KV
- 2415 KV 850
- Max thrust
- Max Thrust: 1855 gF
- Stator size
- 24 × 15 mm stator
Price
Price on request
Ask for a quote for your quantity and delivery location.
- Free
- No account
- Vendor replies
Where to buy
Not sold online yet. Ask Flameback Tech for a quote, delivery and dealers near you with “Get a quote” above.
About this product
The Flameback 2415 KV850 is a 24x15 mm stator motor for 4S mapping and inspection multirotors, fixed-wing aircraft and VTOL lift. On an 11x4.5 prop the maker's bench data shows 1855 gf at full throttle and about 754 gf at half throttle, drawing up to 30 A. Catalogue figures are 450 W tested peak power, 12N14P winding and 80 g with cables. Flameback recommends its 45A ESC. The same web page also offers a KV1200 version, listed separately.
Specifications
8 of 8 published by the vendor. “Ask the vendor” means the brochure does not say.
General
- Weight
- Weight incl. cables 80 g
Motor
- Motor KV
- 2415 KV 850
- Max thrust
- Max Thrust: 1855 gF
- Stator size
- 24 × 15 mm stator
- Max power
- Max Power (Tested) 450 W
- Max (continuous) current
- Max Current: 30A
- Supported cells (S)
- Operating Voltage: 4S
- Recommended propeller
- Recommended Propellers 11 x 4.5
Flameback Tech
Baddi
Flameback Tech delivers UAV components including ESCs, BLDC motors, propellers & controllers.
Documents and videos
More details
- Made in
- India
