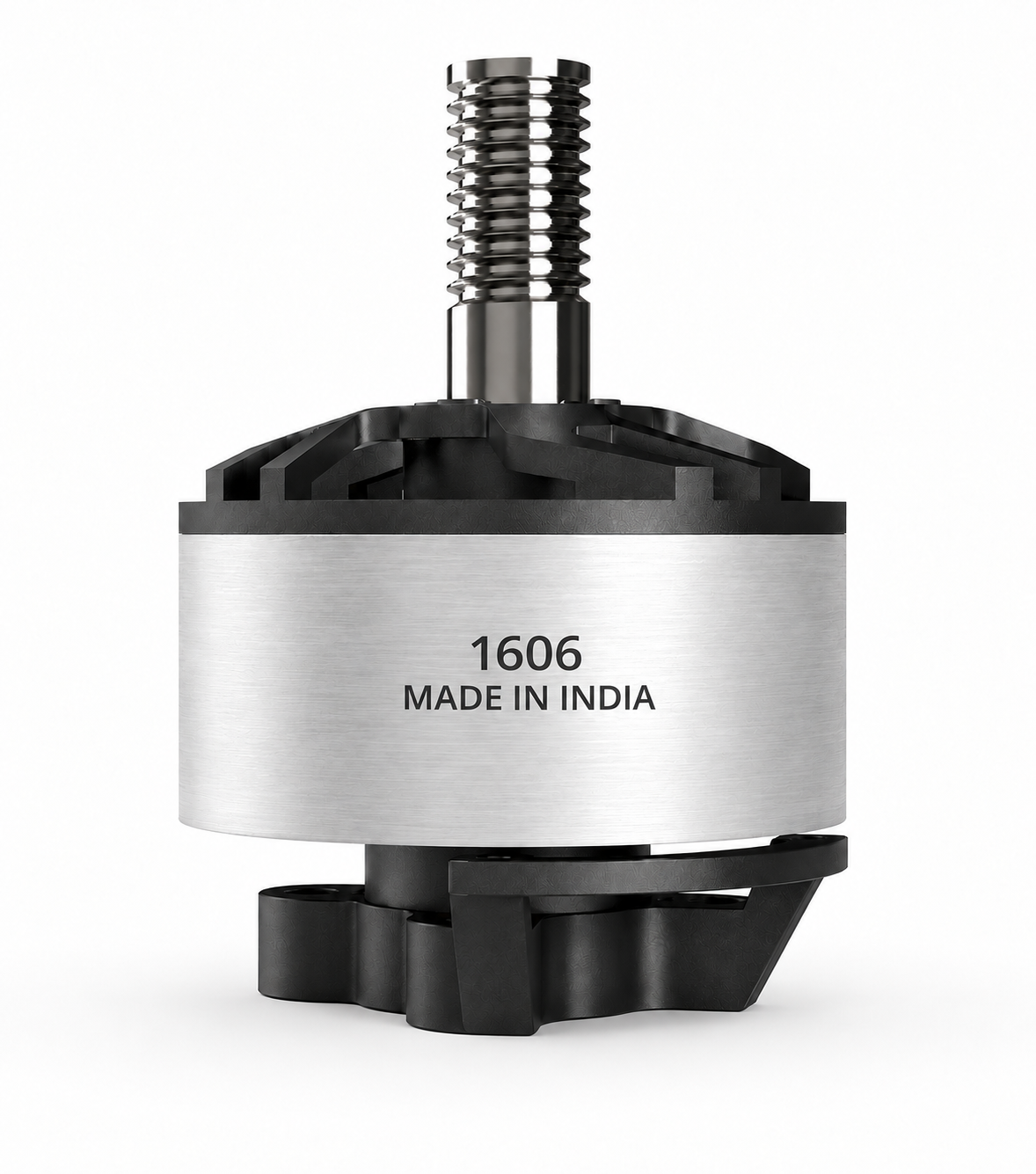

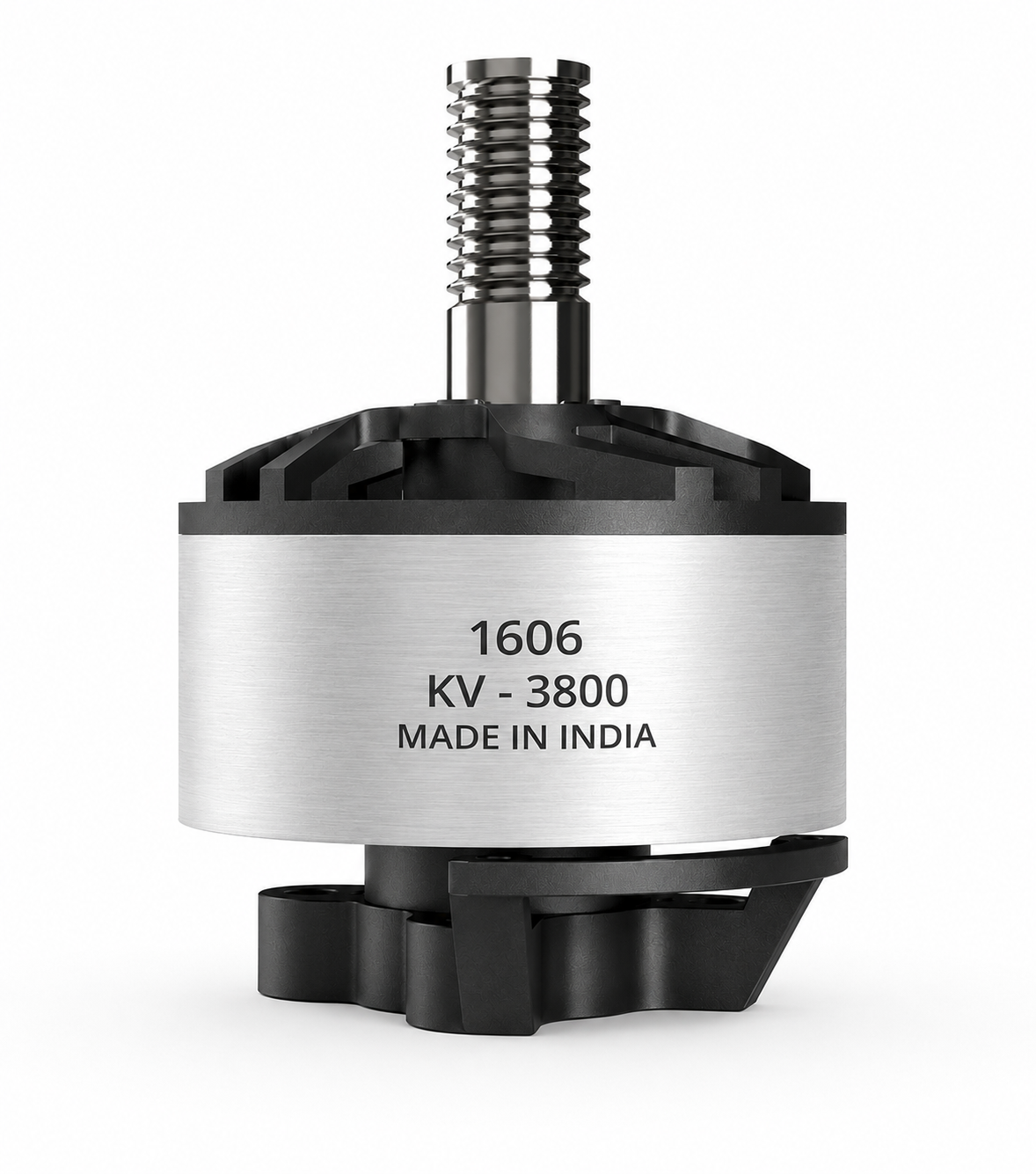

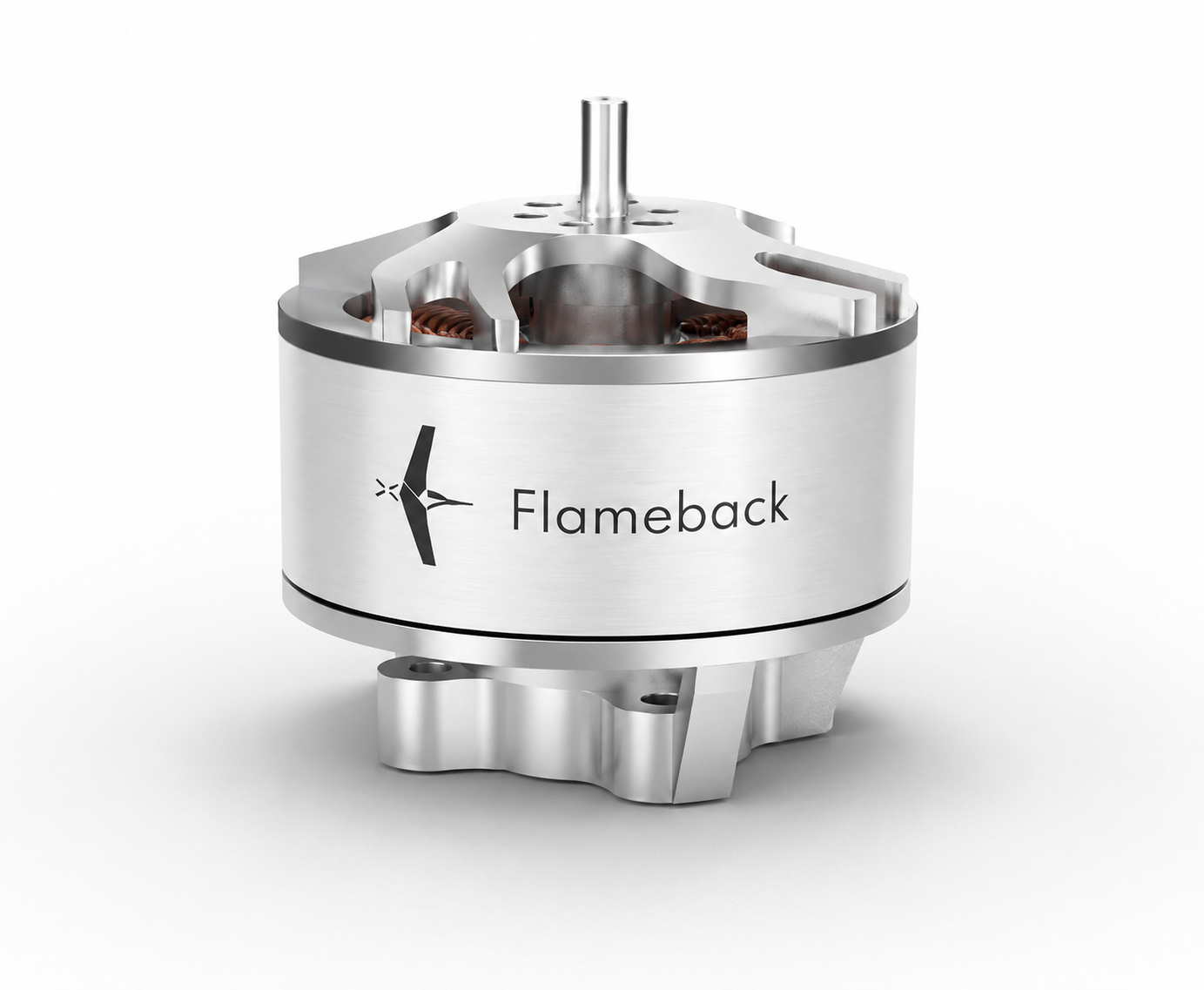

1 / 3Flameback 1606 KV3800 BLDC Motor
Model FBT-BLDC-1606
Flameback 1606 KV3800 brushless motor for 3S micro FPV drones and cinewhoops, 288 gf max thrust on 2.5-3 inch props, 15 g.
Sold byFlameback Tech Baddi- Weight
- Weight incl. cables 15 g
- Motor KV
- 1606 KV 3800
- Max thrust
- Max Thrust: 288 gF
- Stator size
- 1606
Price
Price on request
Ask for a quote for your quantity and delivery location.
- Free
- No account
- Vendor replies
Where to buy
Not sold online yet. Ask Flameback Tech for a quote, delivery and dealers near you with “Get a quote” above.
About this product
The Flameback 1606 KV3800 is a small brushless outrunner for 3S micro FPV quads, cinewhoops and light indoor drones. The maker quotes 288 gf of maximum thrust and about 133 gf at half throttle on 2.5 to 3 inch props, with a 20 A maximum current and 150 W tested peak power. It uses a 9N12P winding, weighs 15 g with cables and is rated for 3S. Flameback pairs it with its 25A ESC and publishes bench data taken with a ducted three-blade prop. The housing is CNC-machined aluminium and the copper wire is rated to 220 C.
Specifications
8 of 8 published by the vendor. “Ask the vendor” means the brochure does not say.
General
- Weight
- Weight incl. cables 15 g
Motor
- Motor KV
- 1606 KV 3800
- Max thrust
- Max Thrust: 288 gF
- Stator size
- 1606
- Max power
- Max Power (Tested) 150 W
- Max (continuous) current
- Max Current: 20A
- Supported cells (S)
- Operating Voltage: 3S
- Recommended propeller
- Recommended Props: 2.5-3"
Flameback Tech
Baddi
Flameback Tech delivers UAV components including ESCs, BLDC motors, propellers & controllers.
Documents and videos
More details
- Made in
- India
