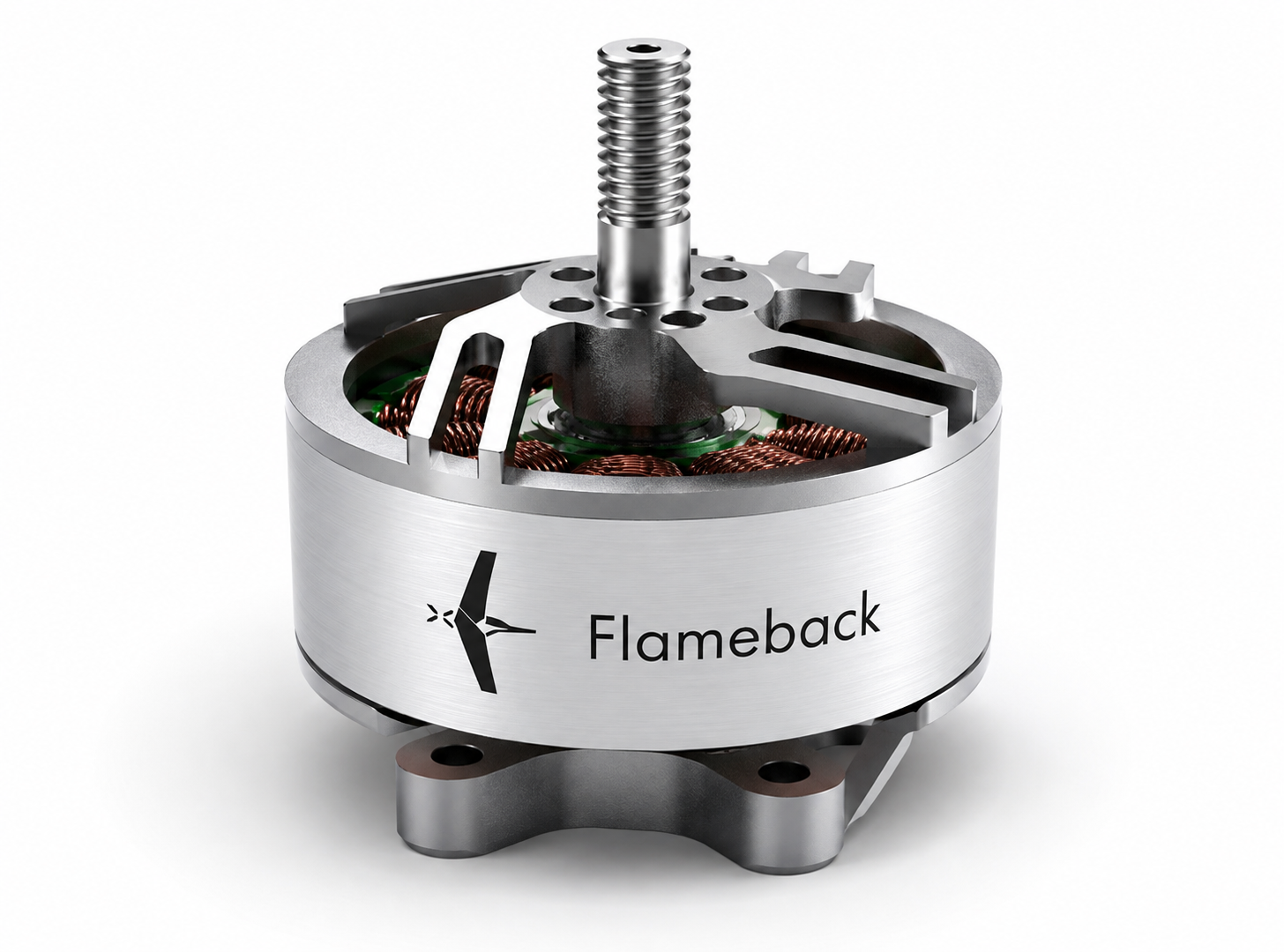

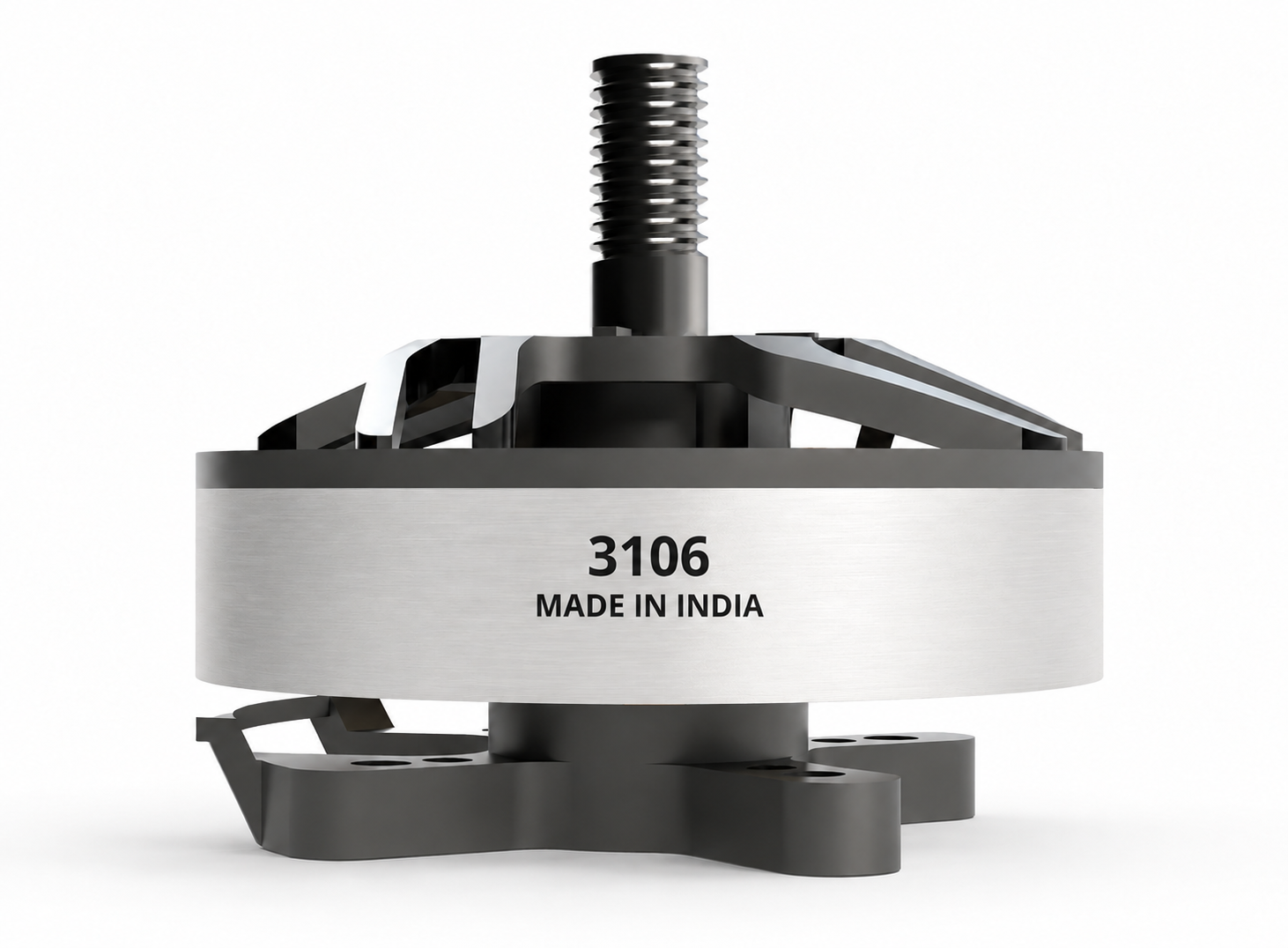

1 / 3Flameback 3106 KV500 BLDC Motor
Model FBT-BLDC-3106
Flameback 3106 KV500 brushless motor for 6S endurance mapping drones, 1.4 kgf max thrust on 10 inch props, 78 g.
Sold byFlameback Tech Baddi- Weight
- Weight incl. cables 78 g
- Motor KV
- 3106 KV 500
- Max thrust
- Max Thrust: 1400.2 gF
- Stator size
- 31×6 stator
Price
Price on request
Ask for a quote for your quantity and delivery location.
- Free
- No account
- Vendor replies
Where to buy
Not sold online yet. Ask Flameback Tech for a quote, delivery and dealers near you with “Get a quote” above.
About this product
The Flameback 3106 KV500 is a low-profile 31x6 mm stator motor intended for endurance multirotors, mapping drones and surveillance platforms on 6S. The maker lists 1400 gf of maximum thrust and about 516 gf at half throttle on a 10 inch prop, with a 20 A current limit and 350 W tested peak power. It uses a 12N14P winding and weighs 78 g with cables. Flameback recommends its 45A ESC and tested with a 1038 prop.
Specifications
8 of 8 published by the vendor. “Ask the vendor” means the brochure does not say.
General
- Weight
- Weight incl. cables 78 g
Motor
- Motor KV
- 3106 KV 500
- Max thrust
- Max Thrust: 1400.2 gF
- Stator size
- 31×6 stator
- Max power
- Max Power (Tested) 350 W
- Max (continuous) current
- Max Current: 20A
- Supported cells (S)
- Operating Voltage: 6S
- Recommended propeller
- Recommended Props: 10 inches
Flameback Tech
Baddi
Flameback Tech delivers UAV components including ESCs, BLDC motors, propellers & controllers.
Documents and videos
More details
- Made in
- India
Flameback 3106 KV500 BLDC Motor
