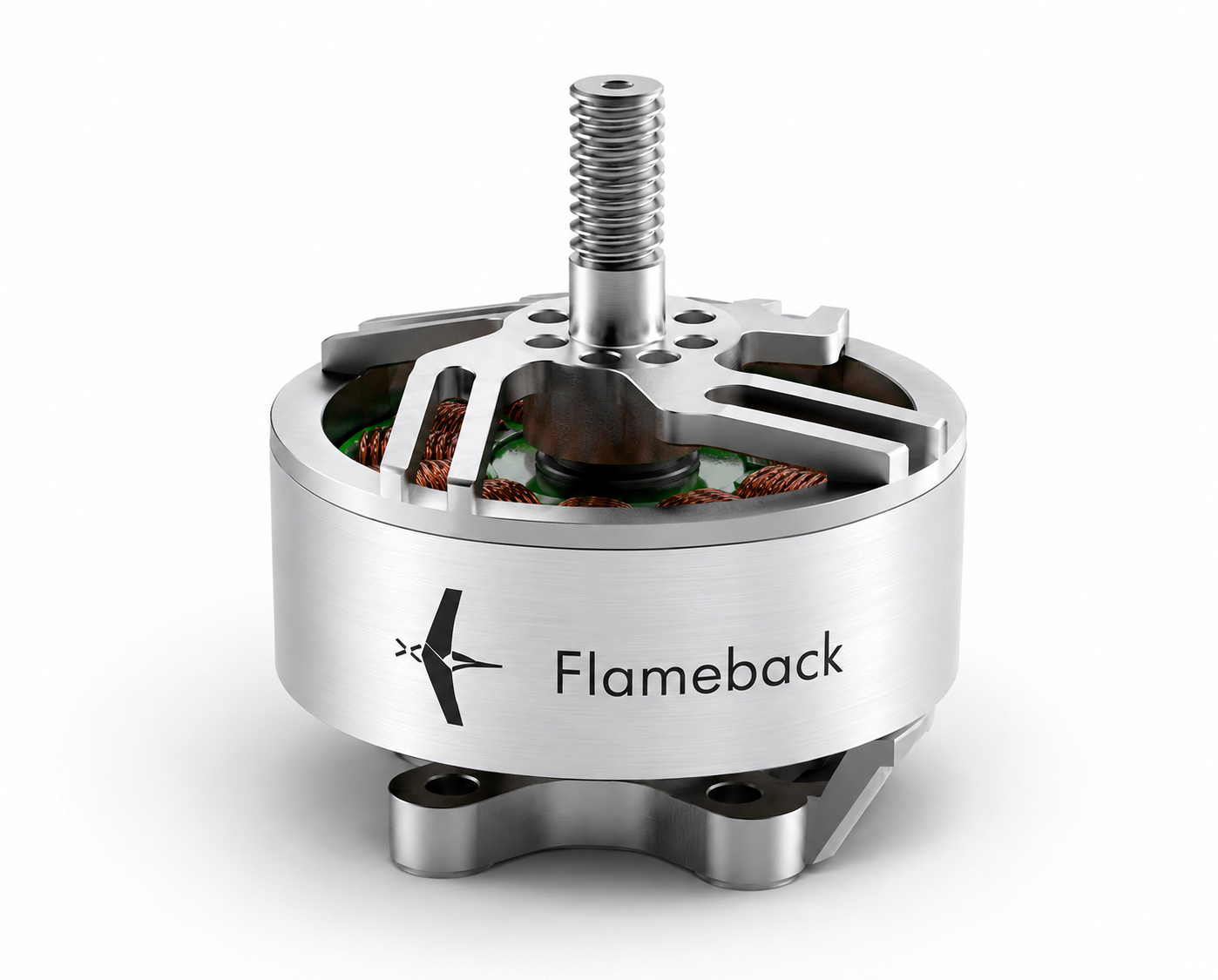

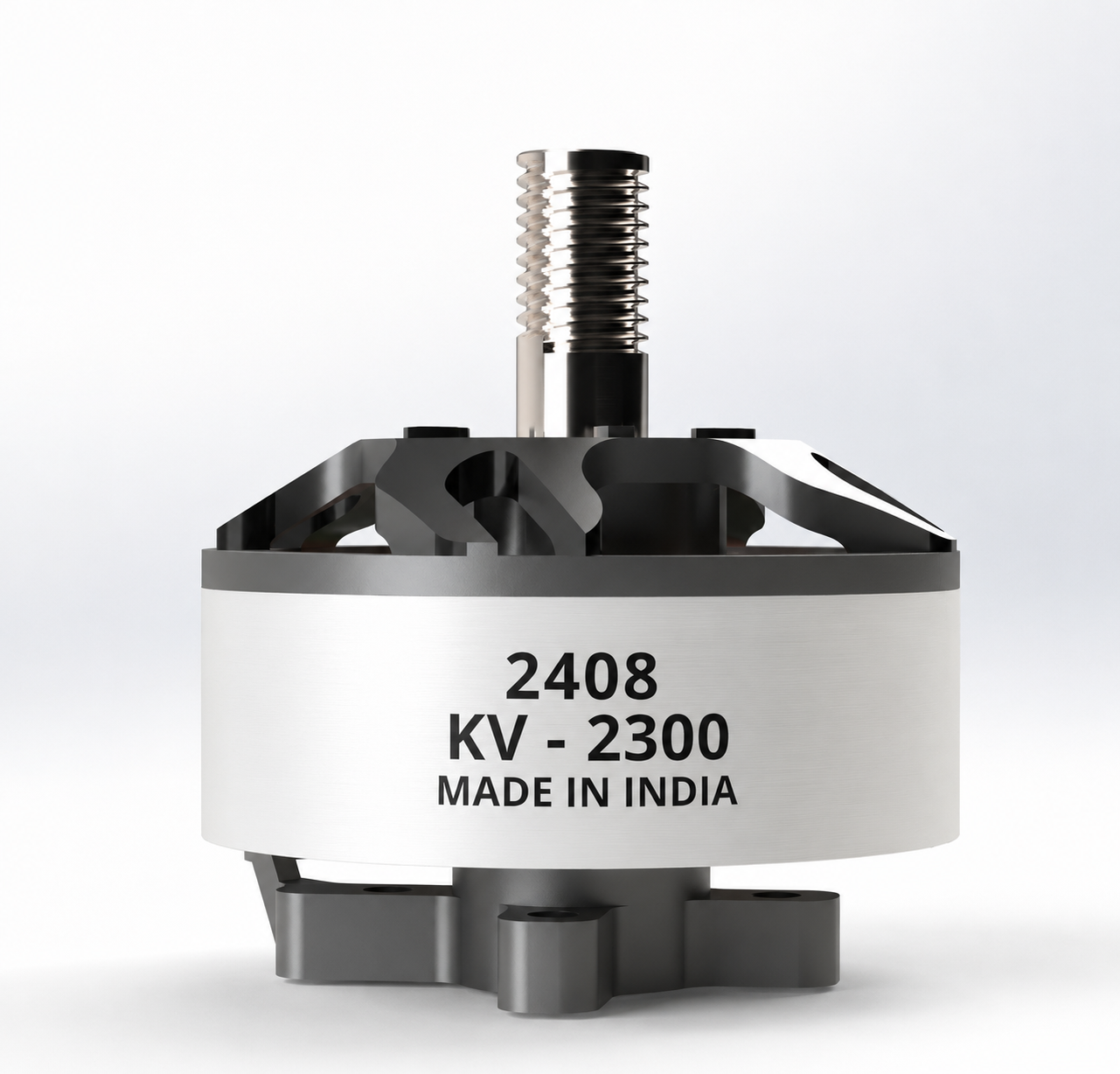

1 / 3Flameback 2408 KV2300 BLDC Motor
Model FBT-BLDC-2408
Flameback 2408 KV2300 brushless motor for 4S heavy FPV and compact inspection drones, about 1.23 kgf max thrust on 5 inch props.
Sold byFlameback Tech Baddi- Weight
- Weight incl. cables 48 g
- Motor KV
- 2408 KV 2300
- Max thrust
- Max Thrust: 1234.2 gF
- Stator size
- 24×8 stator
Price
Price on request
Ask for a quote for your quantity and delivery location.
- Free
- No account
- Vendor replies
Where to buy
Not sold online yet. Ask Flameback Tech for a quote, delivery and dealers near you with “Get a quote” above.
About this product
The Flameback 2408 KV2300 targets heavier 5 inch FPV builds, compact inspection drones and small payload-carrying quads on 4S. Its 24x8 mm stator gives the maker's quoted 1234 gf of maximum thrust and about 507 gf at half throttle. Maximum current is 35 A and Flameback tested it to 550 W. The motor has a 12N14P winding and weighs 48 g with cables. Flameback suggests its 45A ESC and a 5043 tri-blade prop.
Specifications
8 of 8 published by the vendor. “Ask the vendor” means the brochure does not say.
General
- Weight
- Weight incl. cables 48 g
Motor
- Motor KV
- 2408 KV 2300
- Max thrust
- Max Thrust: 1234.2 gF
- Stator size
- 24×8 stator
- Max power
- Max Power (Tested) 550 W
- Max (continuous) current
- Max Current: 35A
- Supported cells (S)
- Operating Voltage: 4S
- Recommended propeller
- Recommended Props: 5 inches / Tri Blade - 5043
Flameback Tech
Baddi
Flameback Tech delivers UAV components including ESCs, BLDC motors, propellers & controllers.
Documents and videos
More details
- Made in
- India
