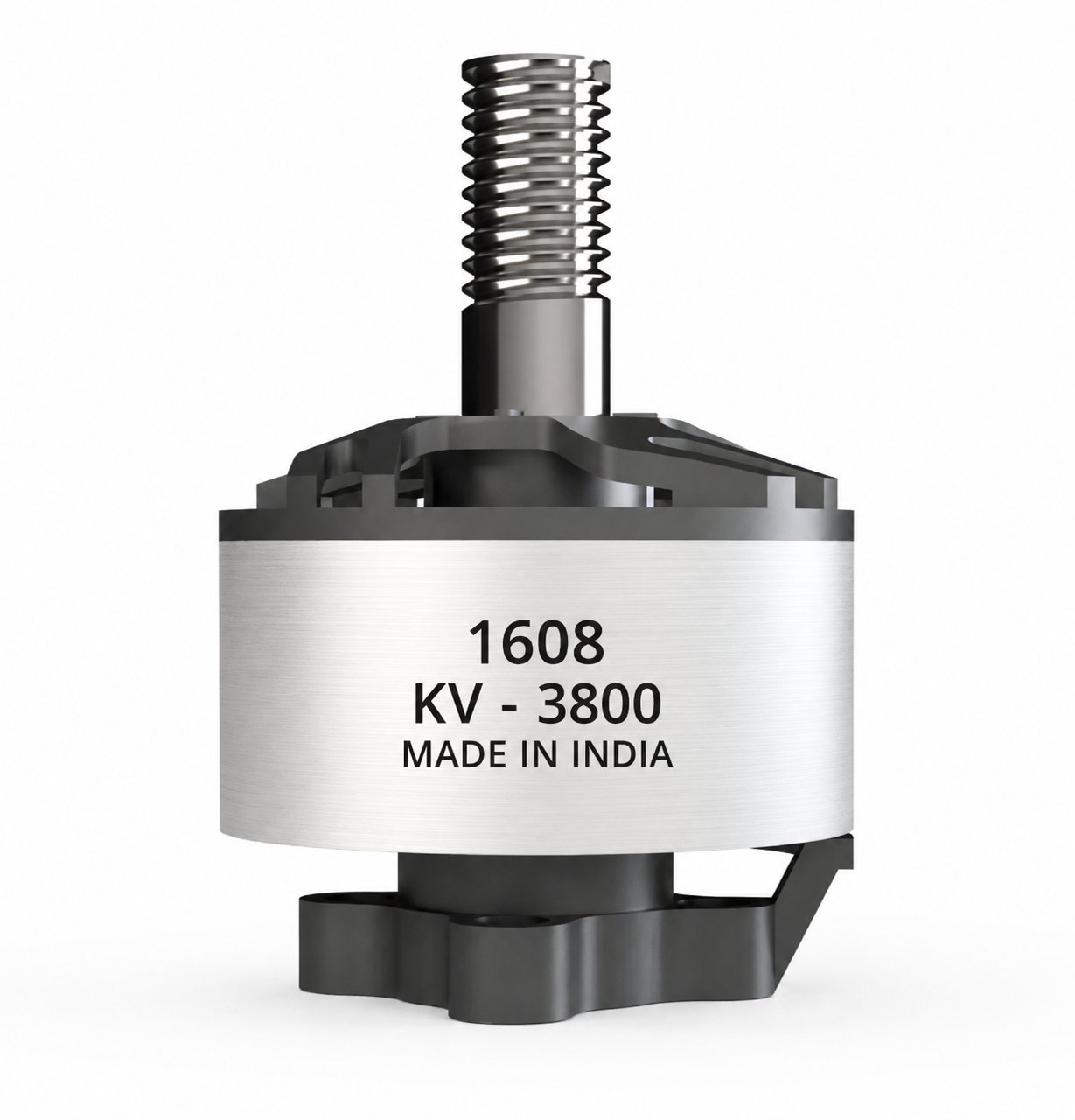

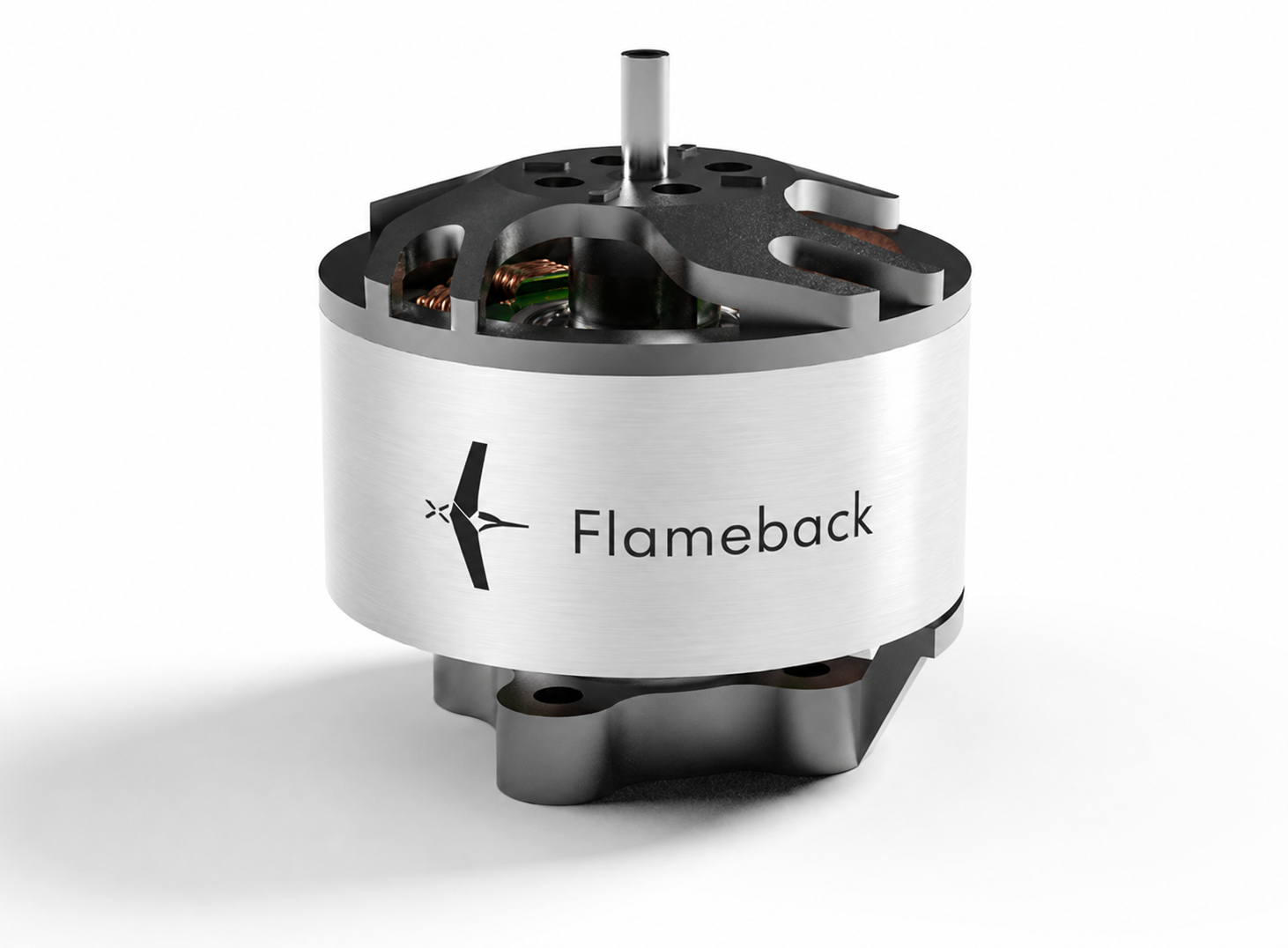

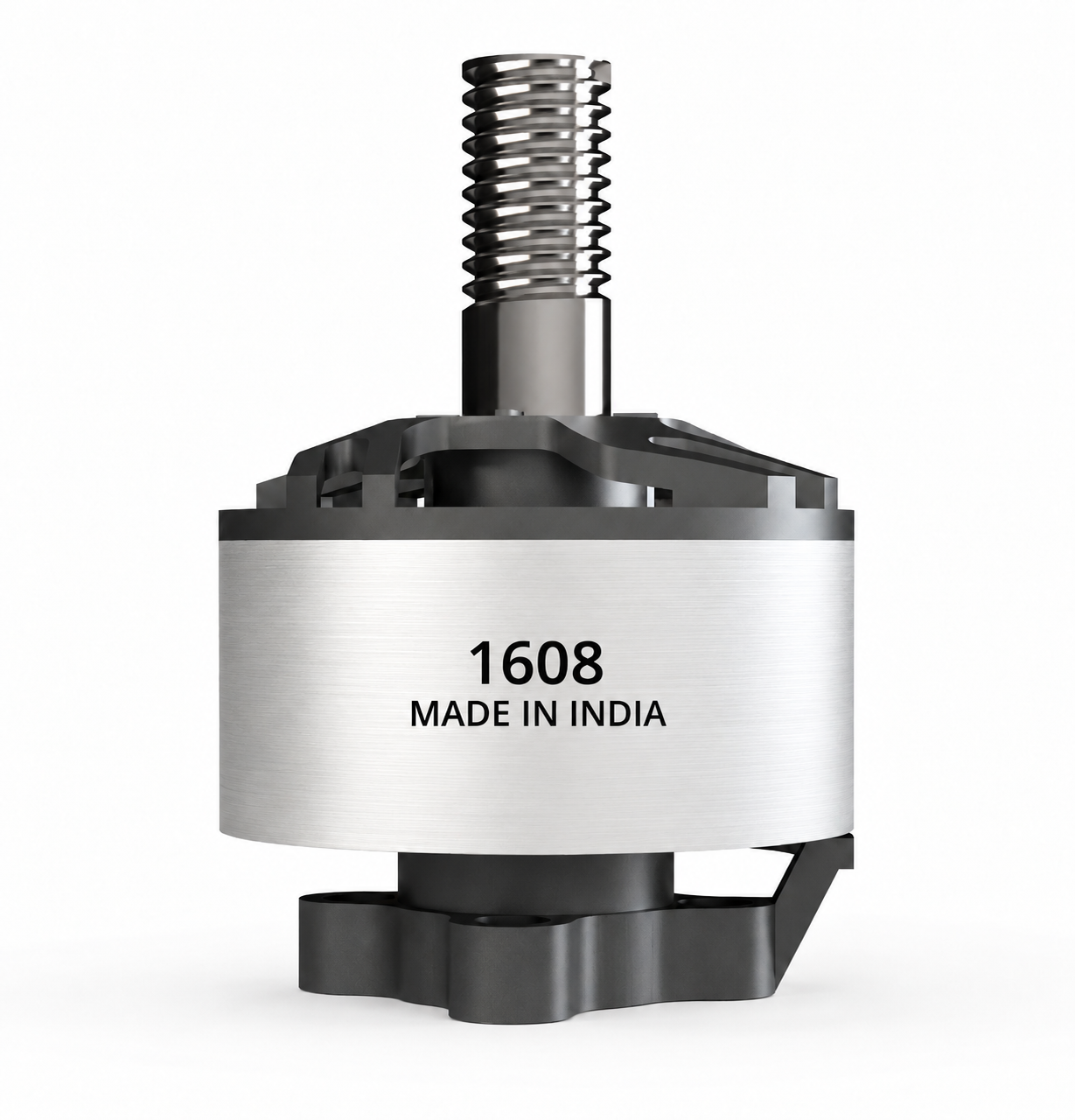

1 / 3Flameback 1608 KV3800 BLDC Motor
Model FBT-BLDC-1608
Flameback 1608 KV3800 brushless motor for 3S micro FPV and indoor inspection drones, 317 gf max thrust, 18 g with cables.
Sold byFlameback Tech Baddi- Weight
- Weight incl. cables 18 g
- Motor KV
- 1608 KV 3800
- Max thrust
- Max Thrust: 317 gF
- Stator size
- 1608
Price
Price on request
Ask for a quote for your quantity and delivery location.
- Free
- No account
- Vendor replies
Where to buy
Not sold online yet. Ask Flameback Tech for a quote, delivery and dealers near you with “Get a quote” above.
About this product
The Flameback 1608 KV3800 is a slightly taller sibling of the 1606, built for 3S cinewhoops, small freestyle quads and indoor inspection drones. Flameback lists 317 gf of maximum thrust and about 167 gf at half throttle on 2.5 to 3 inch props. Maximum current is 20 A and the tested peak power is 180 W. The motor has a 9N12P layout, a CNC-machined aluminium bell, high-temperature copper windings rated to 220 C and weighs 18 g including cables. The maker recommends its own 25A ESC.
Specifications
8 of 8 published by the vendor. “Ask the vendor” means the brochure does not say.
General
- Weight
- Weight incl. cables 18 g
Motor
- Motor KV
- 1608 KV 3800
- Max thrust
- Max Thrust: 317 gF
- Stator size
- 1608
- Max power
- Max Power (Tested) 180 W
- Max (continuous) current
- Max Current: 20A
- Supported cells (S)
- Operating Voltage: 3S
- Recommended propeller
- Recommended Props: 2.5-3"
Flameback Tech
Baddi
Flameback Tech delivers UAV components including ESCs, BLDC motors, propellers & controllers.
Documents and videos
More details
- Made in
- India
