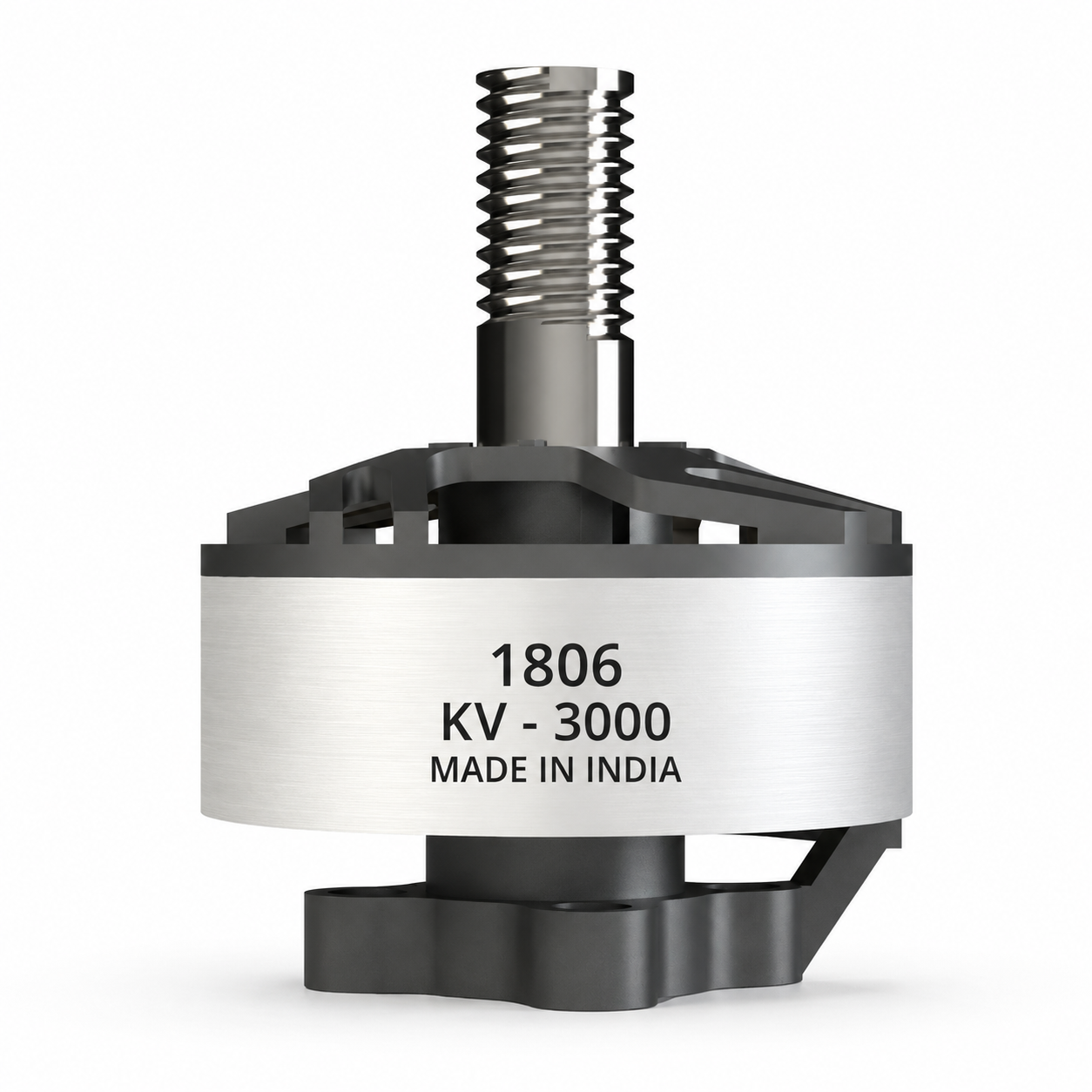

1 / 3Flameback 1806 KV3000 BLDC Motor
Model FBT-BLDC-1806
Flameback 1806 KV3000 brushless motor for 3S FPV trainers and light multirotors, about 599 gf max thrust on 5 inch props.
Sold byFlameback Tech Baddi- Weight
- Weight incl. cables 26 g
- Motor KV
- 1806 KV 3000
- Max thrust
- Max Thrust: 599.1 gF
- Stator size
- 1806
Price
Price on request
Ask for a quote for your quantity and delivery location.
- Free
- No account
- Vendor replies
Where to buy
Not sold online yet. Ask Flameback Tech for a quote, delivery and dealers near you with “Get a quote” above.
About this product

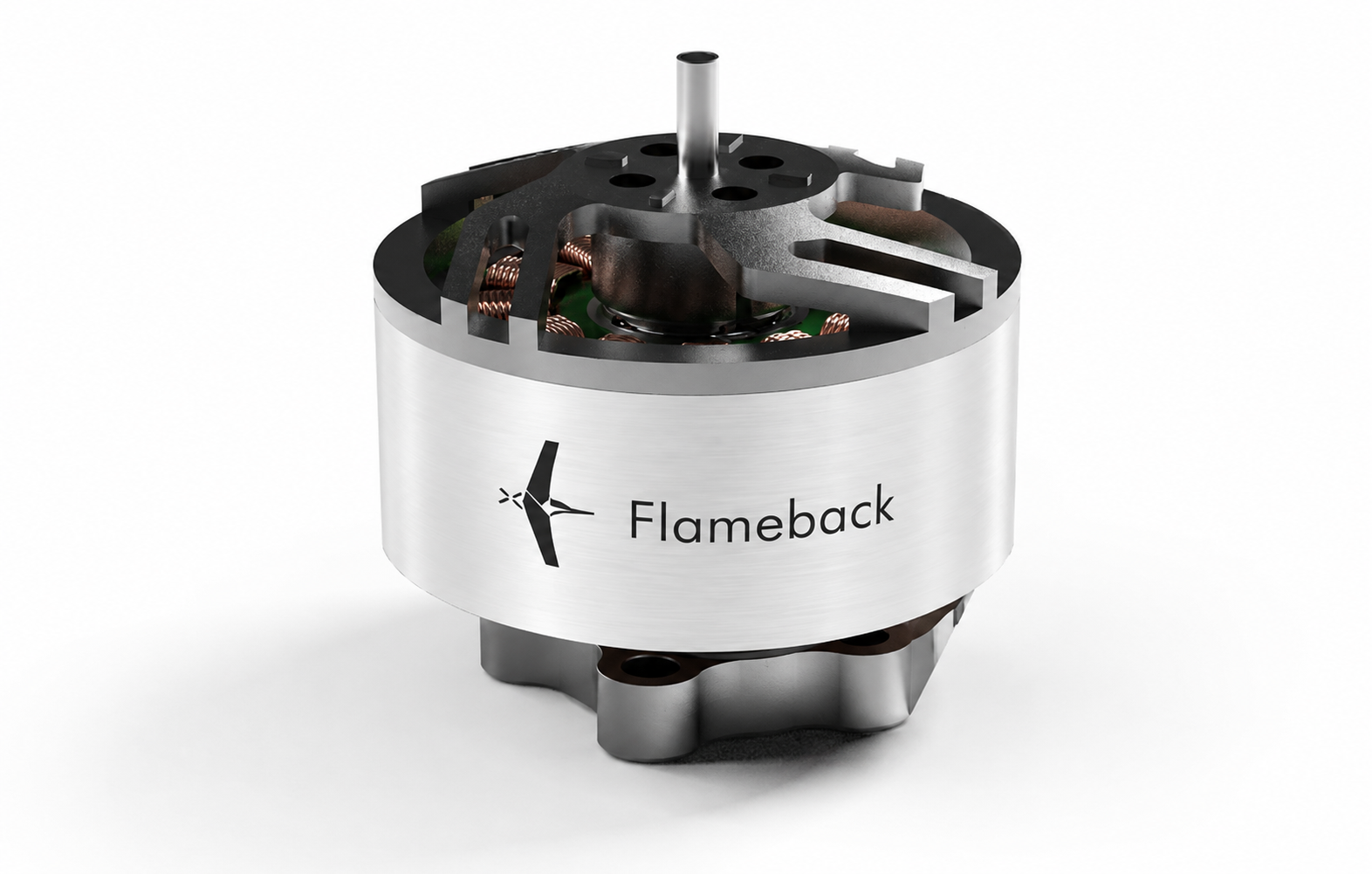

Flameback designed the 1806 KV3000 for FPV trainers, educational drones and light multirotors running on 3S packs. On 5 to 5.1 inch props the maker quotes 599 gf of maximum thrust and about 258 gf at half throttle. It has a 12N14P winding, draws up to 20 A and reached 250 W in the maker's tests. The motor weighs 26 g with cables and uses a finned aluminium housing for cooling. The recommended controller is the Flameback 25A ESC, and the catalogue bench test used a three-blade 5.1 inch prop.
Specifications
8 of 8 published by the vendor. “Ask the vendor” means the brochure does not say.
General
- Weight
- Weight incl. cables 26 g
Motor
- Motor KV
- 1806 KV 3000
- Max thrust
- Max Thrust: 599.1 gF
- Stator size
- 1806
- Max power
- Max Power (Tested) 250 W
- Max (continuous) current
- Max Current: 20A
- Supported cells (S)
- Operating Voltage: 3S
- Recommended propeller
- Recommended Props: 5–5.1"
Flameback Tech
Baddi
Flameback Tech delivers UAV components including ESCs, BLDC motors, propellers & controllers.
Documents and videos
More details
- Made in
- India
