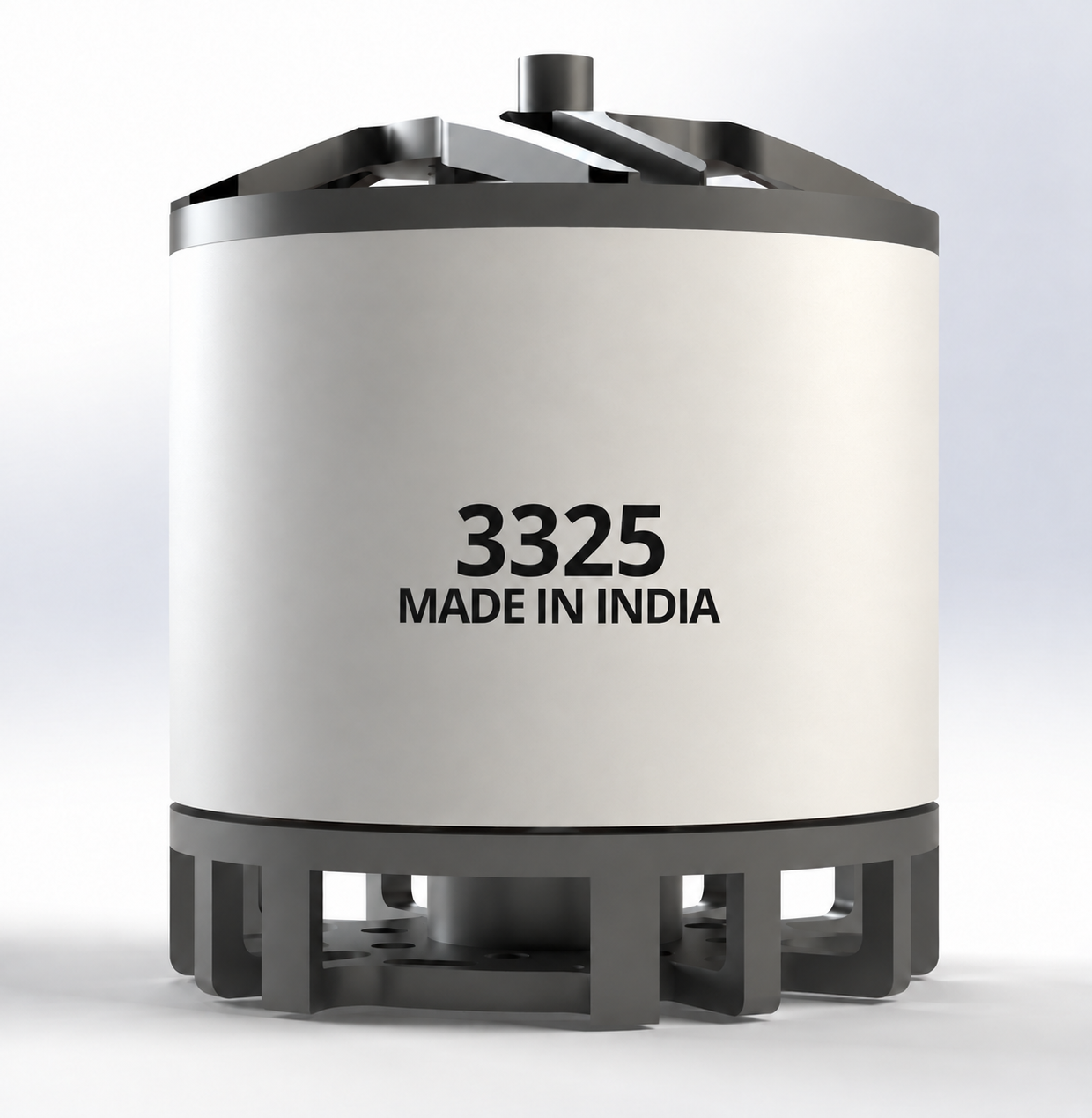

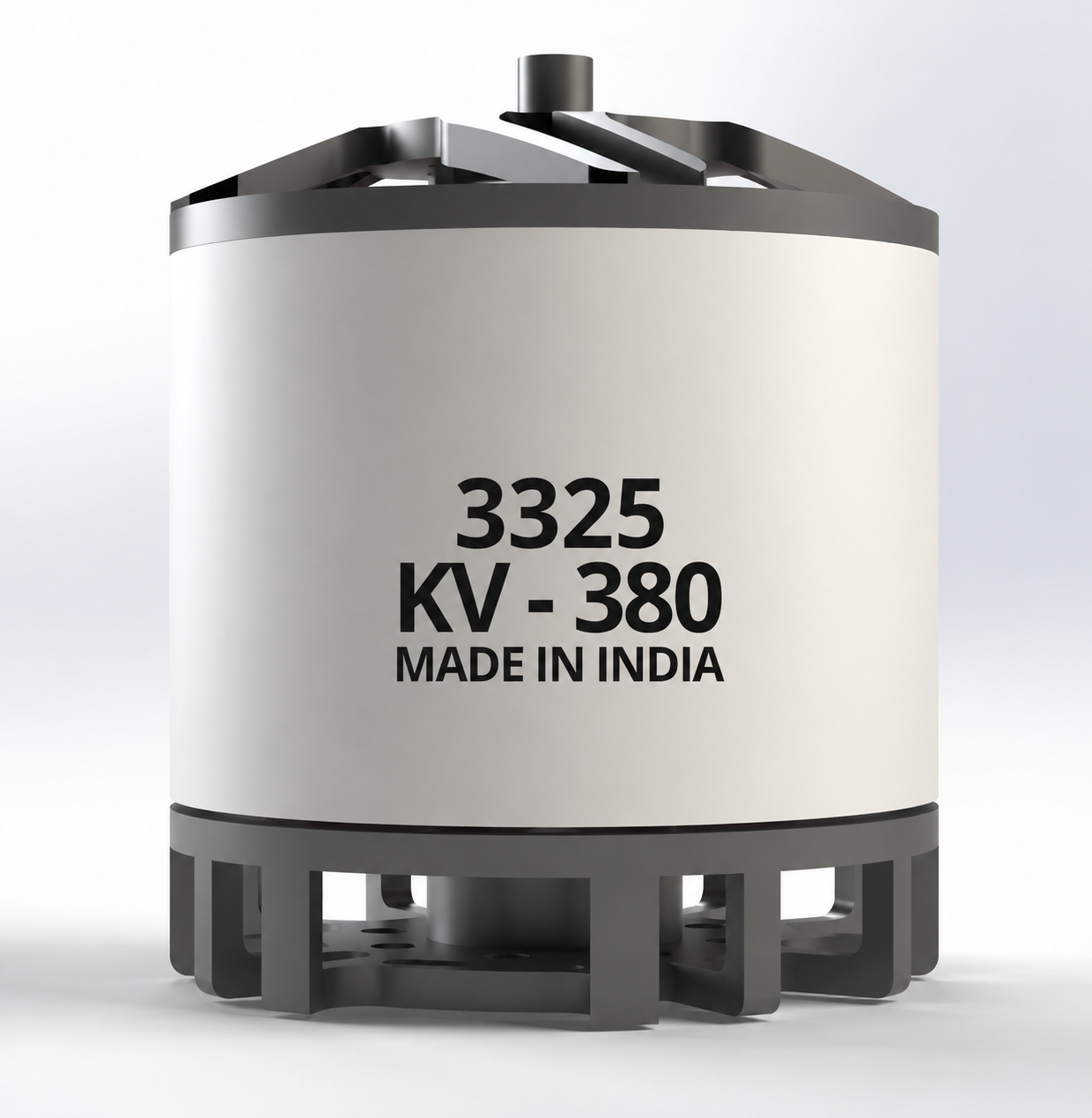

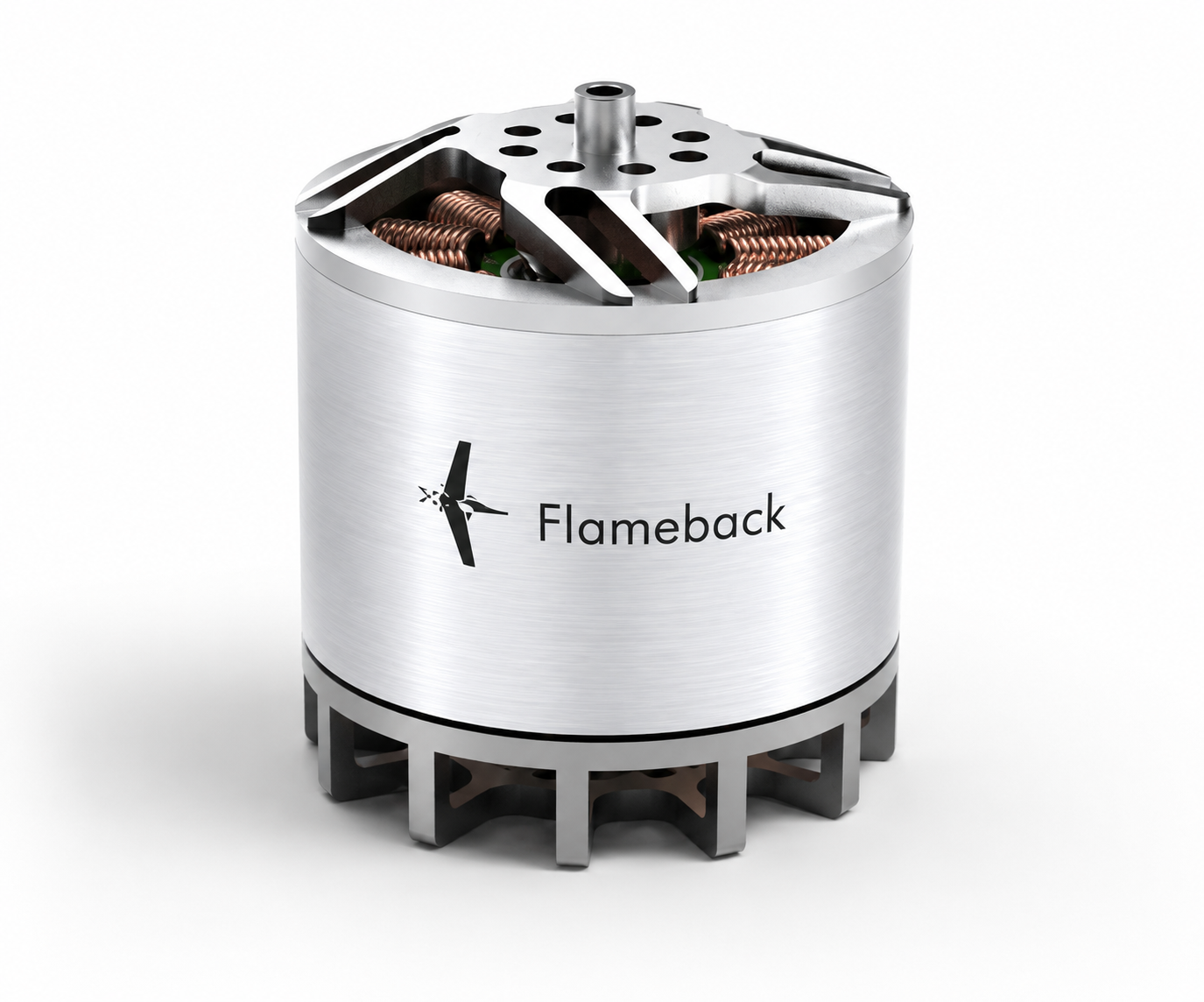

1 / 3Flameback 3325 KV380 BLDC Motor
Model FBT-BLDC-3325
Flameback 3325 KV380 brushless motor for 6S mapping, LiDAR and VTOL drones, about 3 kgf max thrust on 15 inch props.
Sold byFlameback Tech Baddi- Weight
- Weight incl. cables 220 g
- Motor KV
- 3325 KV 380
- Max thrust
- Max Thrust: 2992 gF
- Stator size
- 3325
Price
Price on request
Ask for a quote for your quantity and delivery location.
- Free
- No account
- Vendor replies
Where to buy
Not sold online yet. Ask Flameback Tech for a quote, delivery and dealers near you with “Get a quote” above.
About this product
The Flameback 3325 KV380 is a tall 33x25 mm stator motor for 6S mapping and LiDAR multirotors, industrial drones and VTOL lift. The maker quotes 2992 gf of maximum thrust and about 988 gf at half throttle on a 15 inch prop, with a 25 A maximum current and 550 W tested peak power. It weighs 220 g with cables, has a 12N14P winding and is paired with the Flameback 45A ESC and a 1550 prop in the catalogue tests.
Specifications
8 of 8 published by the vendor. “Ask the vendor” means the brochure does not say.
General
- Weight
- Weight incl. cables 220 g
Motor
- Motor KV
- 3325 KV 380
- Max thrust
- Max Thrust: 2992 gF
- Stator size
- 3325
- Max power
- Max Power (Tested) 550 W
- Max (continuous) current
- Max Current: 25A
- Supported cells (S)
- Operating Voltage: 6S
- Recommended propeller
- Recommended Props: 15 inch
Flameback Tech
Baddi
Flameback Tech delivers UAV components including ESCs, BLDC motors, propellers & controllers.
Documents and videos
More details
- Made in
- India
