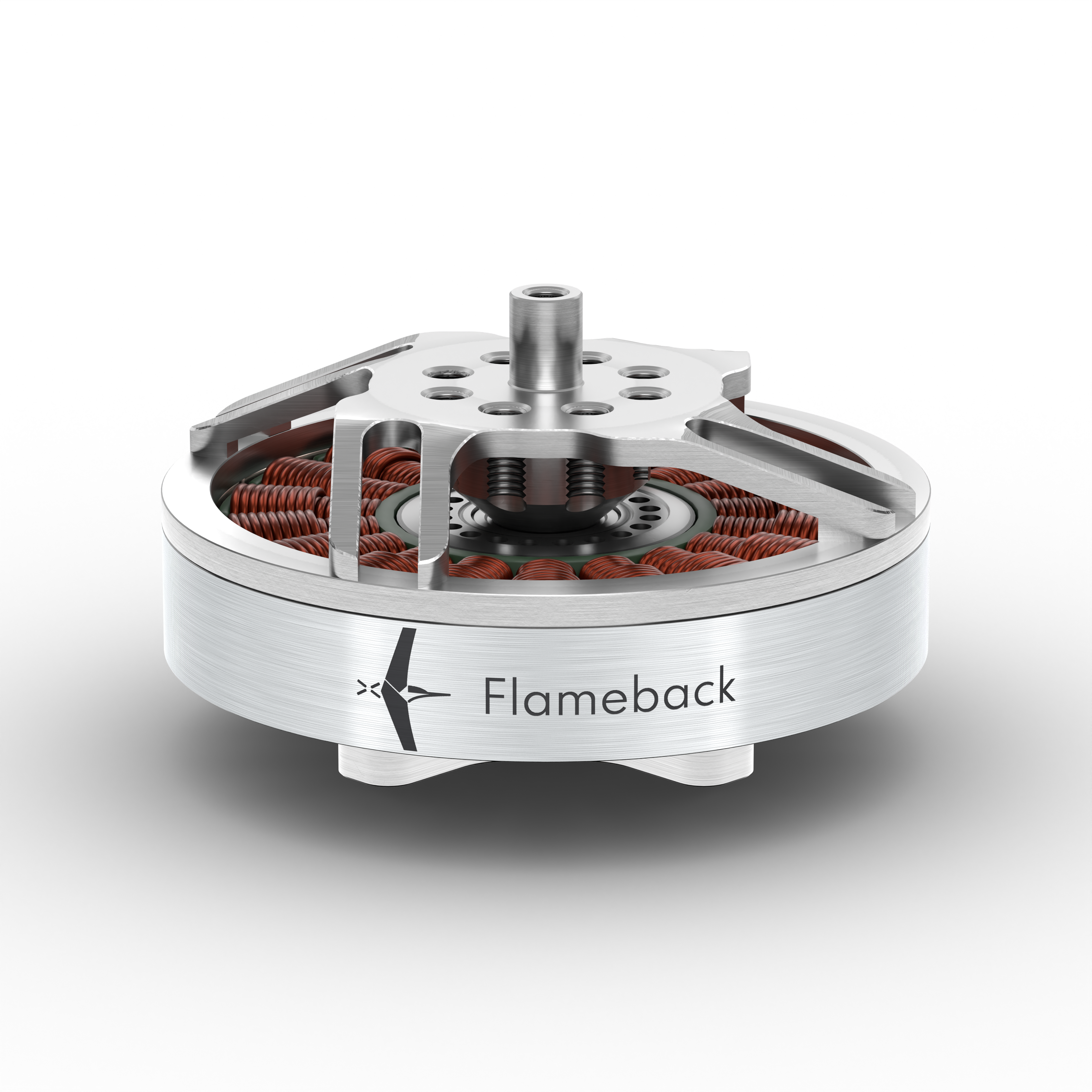

1 / 2Flameback 4006 KV320 BLDC Motor
Model FBT-BLDC-4006-320
Flameback 4006 KV320 brushless motor for 6S long-endurance mapping drones, about 2.02 kgf max thrust on 17 inch props, 73 g.
Sold byFlameback Tech Baddi- Weight
- Weight incl. cables 73 g
- Motor KV
- 4006 KV 320 / 380
- Max thrust
- Max Thrust: 2021 gF (320 KV)
- Stator size
- 40 × 6 mm stator
Price
Price on request
Ask for a quote for your quantity and delivery location.
- Free
- No account
- Vendor replies
Where to buy
Not sold online yet. Ask Flameback Tech for a quote, delivery and dealers near you with “Get a quote” above.
About this product

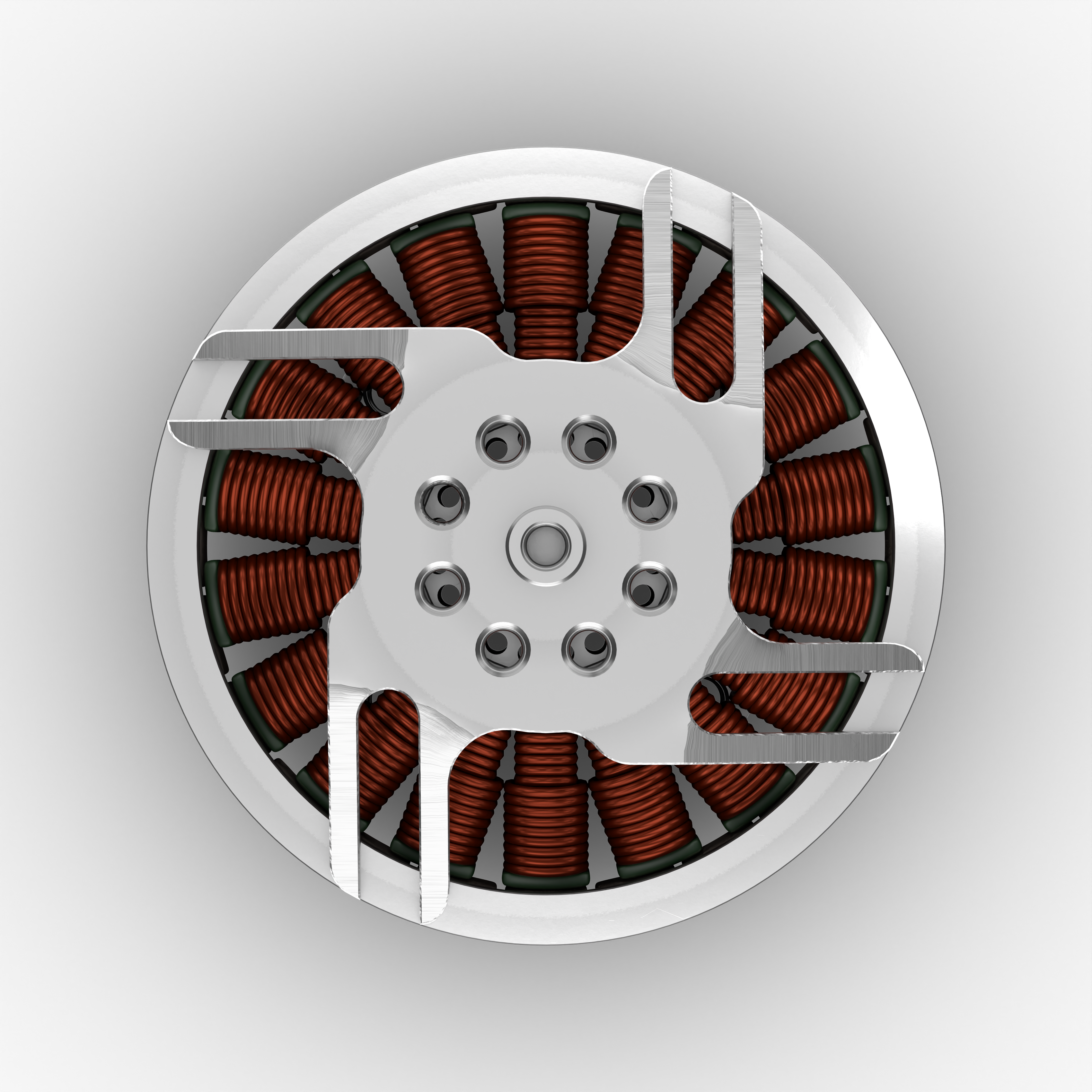

The KV320 version of the Flameback 4006 is the lower-speed winding of this 40x6 mm pancake motor, meant to swing 17 inch props slowly for long hover times on 6S mapping, survey and agricultural drones. Flameback quotes 2021 gf maximum thrust and about 794 gf at half throttle, a 25 A current limit and 350 W tested peak power. It has a 24N28P layout and weighs 73 g with cables. The maker recommends its 45A ESC and tested it with a 1758 prop.
Specifications
8 of 8 published by the vendor. “Ask the vendor” means the brochure does not say.
General
- Weight
- Weight incl. cables 73 g
Motor
- Motor KV
- 4006 KV 320 / 380
- Max thrust
- Max Thrust: 2021 gF (320 KV)
- Stator size
- 40 × 6 mm stator
- Max power
- Max Power (Tested) 350 W
- Max (continuous) current
- Max Current: 25A
- Supported cells (S)
- Operating Voltage: 6S
- Recommended propeller
- Recommended Props: 17 inches (320 KV)
Flameback Tech
Baddi
Flameback Tech delivers UAV components including ESCs, BLDC motors, propellers & controllers.
Documents and videos
More details
- Made in
- India
