1 / 3Flameback 5308 KV380 BLDC Motor
Model FBT-BLDC-5308
Flameback 5308 KV380 brushless motor for 6S agricultural and logistics drones, about 2.75 kgf max thrust on 15 inch props, 180 g.
Sold byFlameback Tech Baddi- Weight
- Weight incl. cables 180 g
- Motor KV
- 5308 KV 380
- Max thrust
- Thrust 2753 g at 100% throttle (prop 1550); web page says Max Thrust 2819 gF
- Stator size
- 53×8 stator
Price
Price on request
Ask for a quote for your quantity and delivery location.
- Free
- No account
- Vendor replies
Where to buy
Not sold online yet. Ask Flameback Tech for a quote, delivery and dealers near you with “Get a quote” above.
About this product

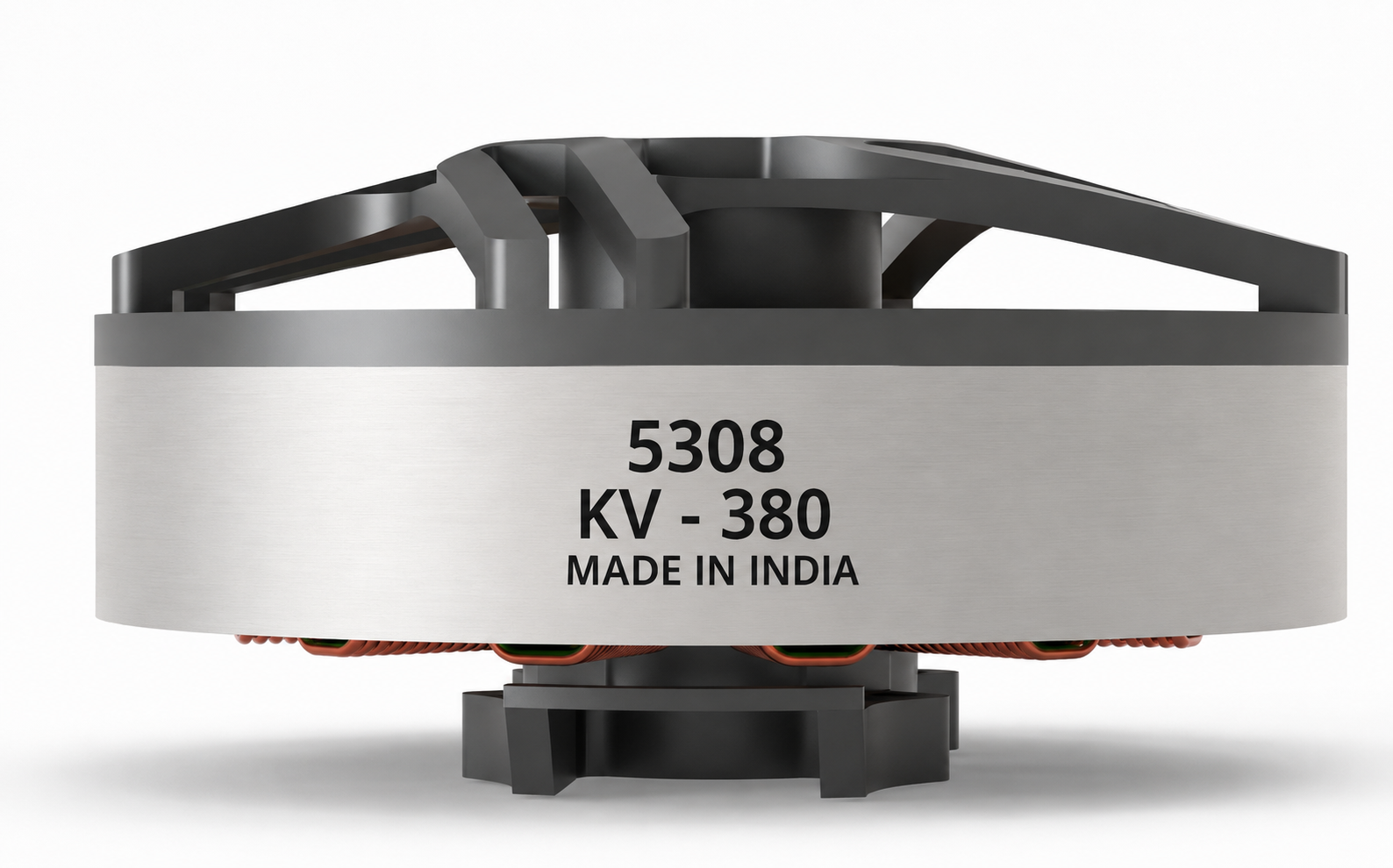

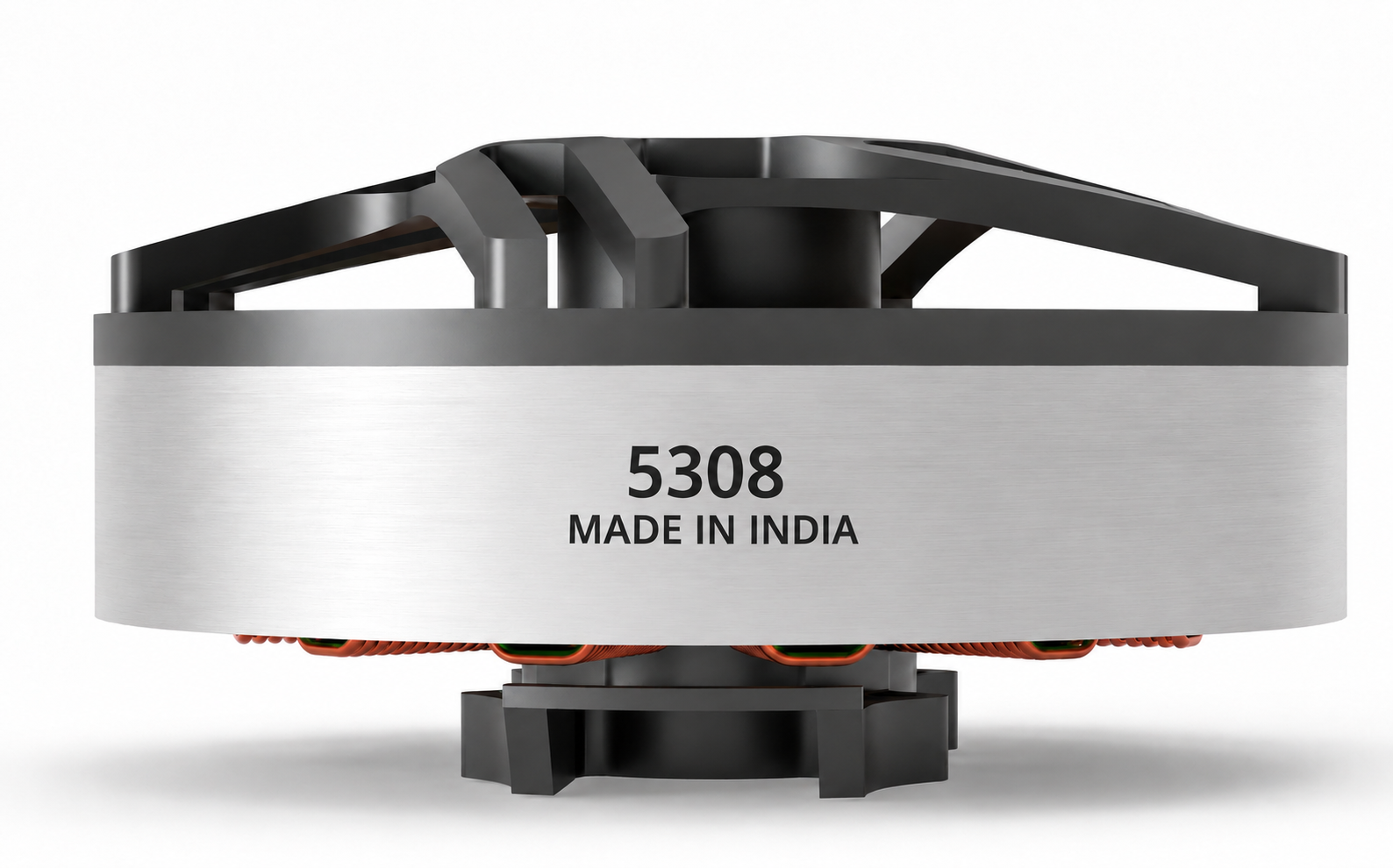

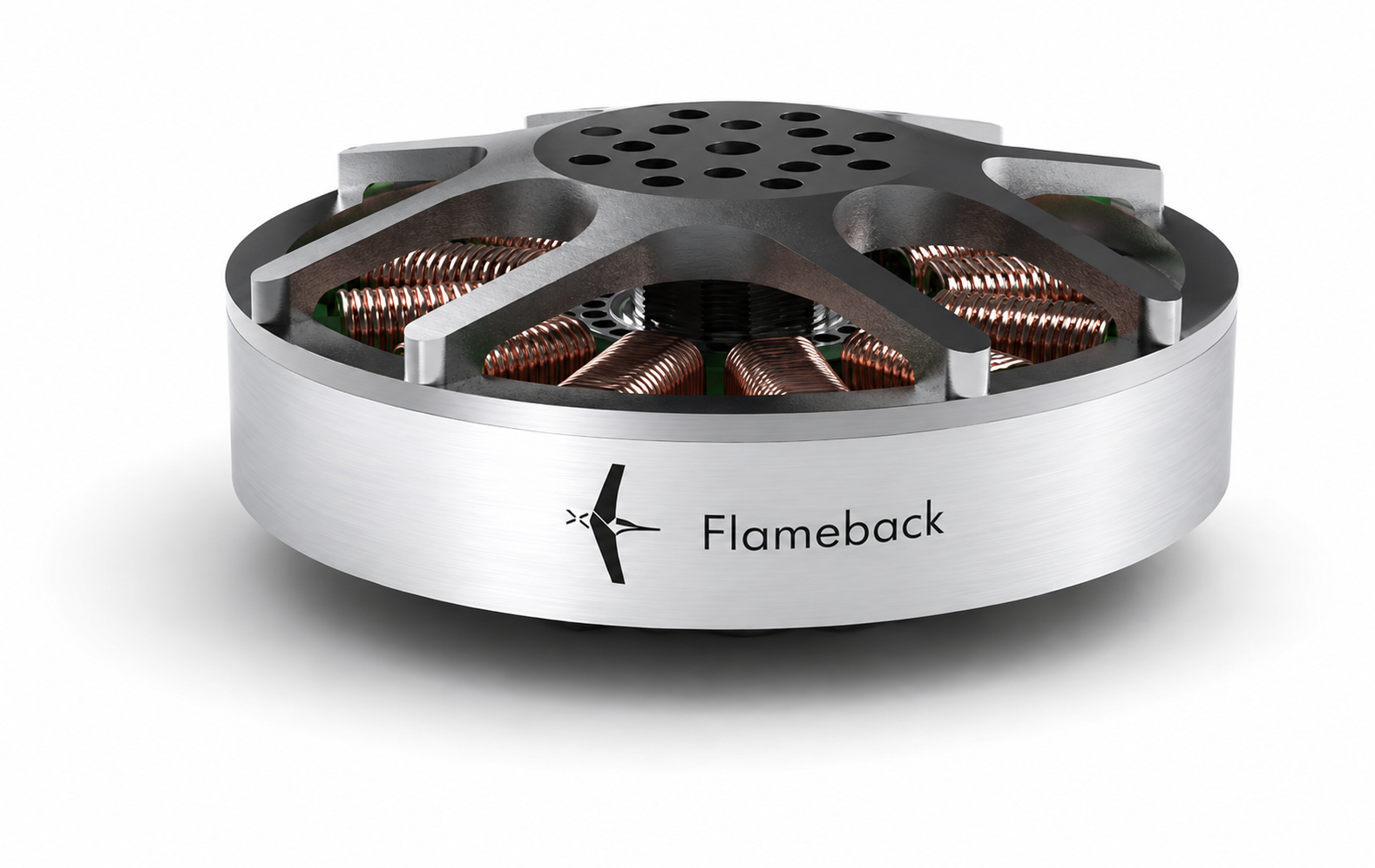

The Flameback 5308 KV380 is a wide 53x8 mm stator motor for 6S agricultural drones, logistics UAVs and industrial VTOLs that need steady low-RPM torque. In the maker's catalogue bench test on a 15x5 (1550) prop it produced 2753 g at full throttle and about 950 g at half throttle, while the web page quotes 2819 gF maximum. Flameback lists a 20 A maximum current, 500 W tested peak power, 180 g with cables and a 12N14P winding, and recommends its 45A ESC.
Specifications
8 of 8 published by the vendor. “Ask the vendor” means the brochure does not say.
General
- Weight
- Weight incl. cables 180 g
Motor
- Motor KV
- 5308 KV 380
- Max thrust
- Thrust 2753 g at 100% throttle (prop 1550); web page says Max Thrust 2819 gF
- Stator size
- 53×8 stator
- Max power
- Max Power (Tested) 500 W
- Max (continuous) current
- Max Current: 20A
- Supported cells (S)
- Operating Voltage: 6S
- Recommended propeller
- Recommended Props: 15 inches
Flameback Tech
Baddi
Flameback Tech delivers UAV components including ESCs, BLDC motors, propellers & controllers.
Documents and videos
More details
- Made in
- India
