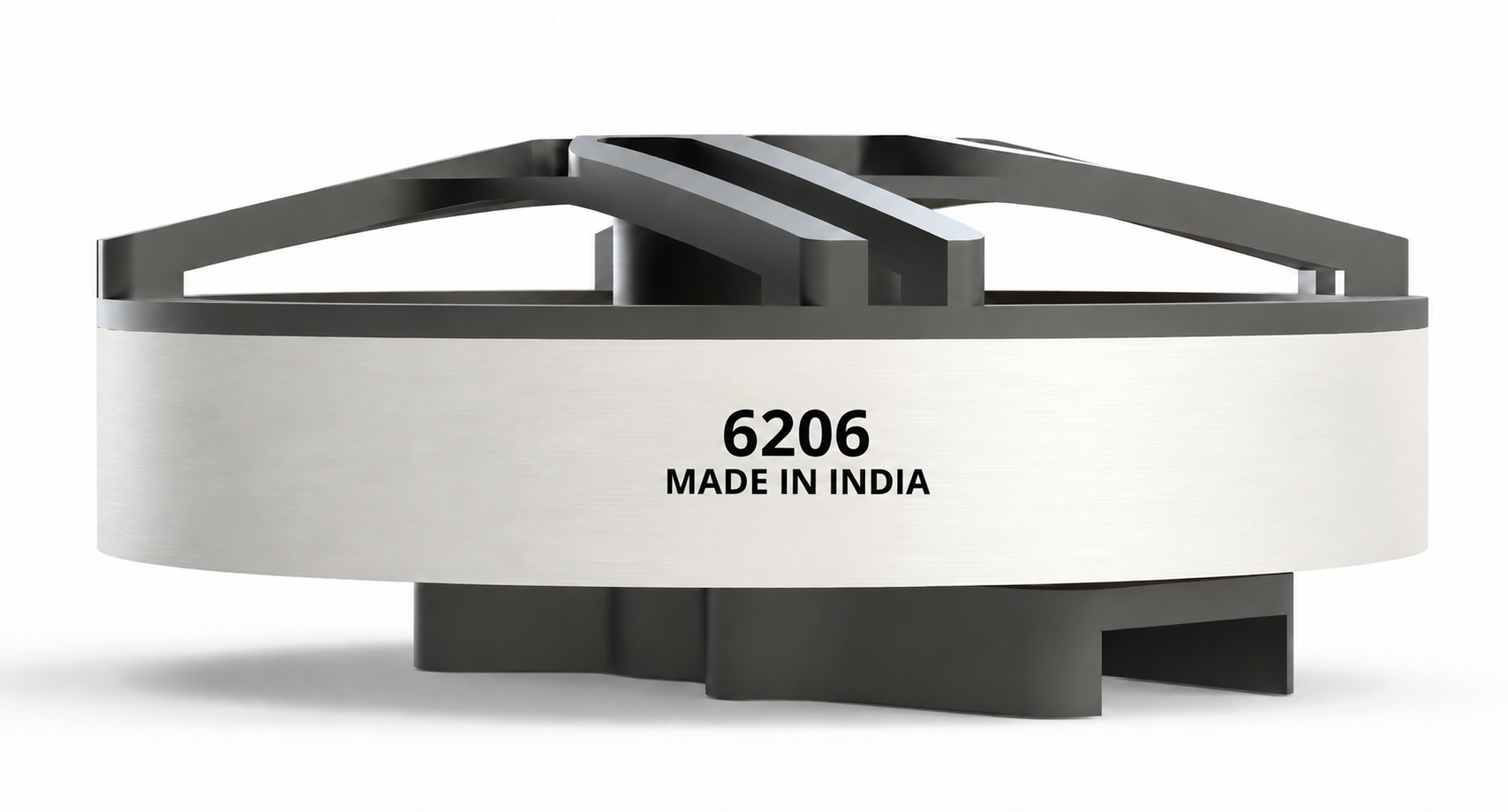

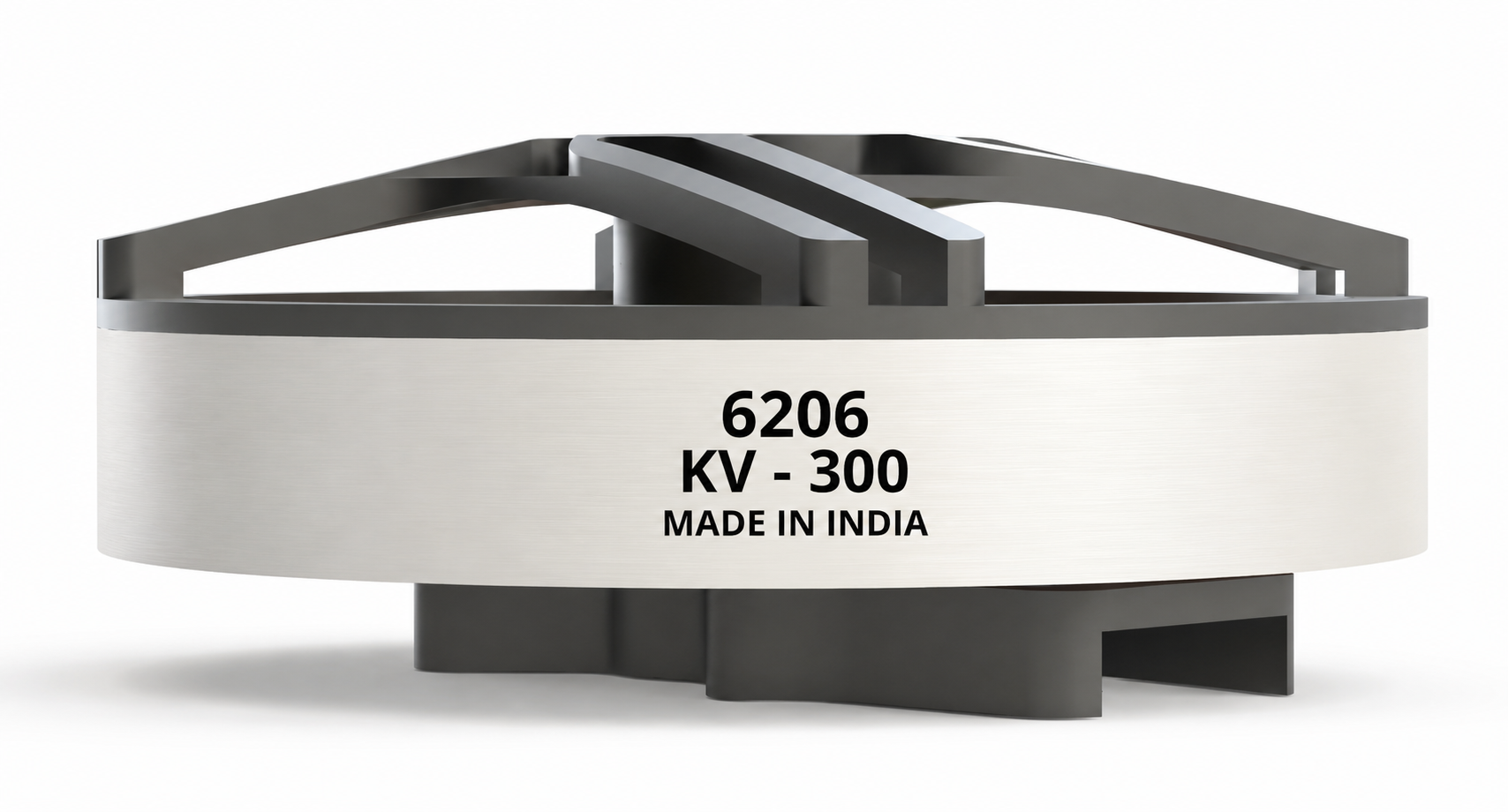

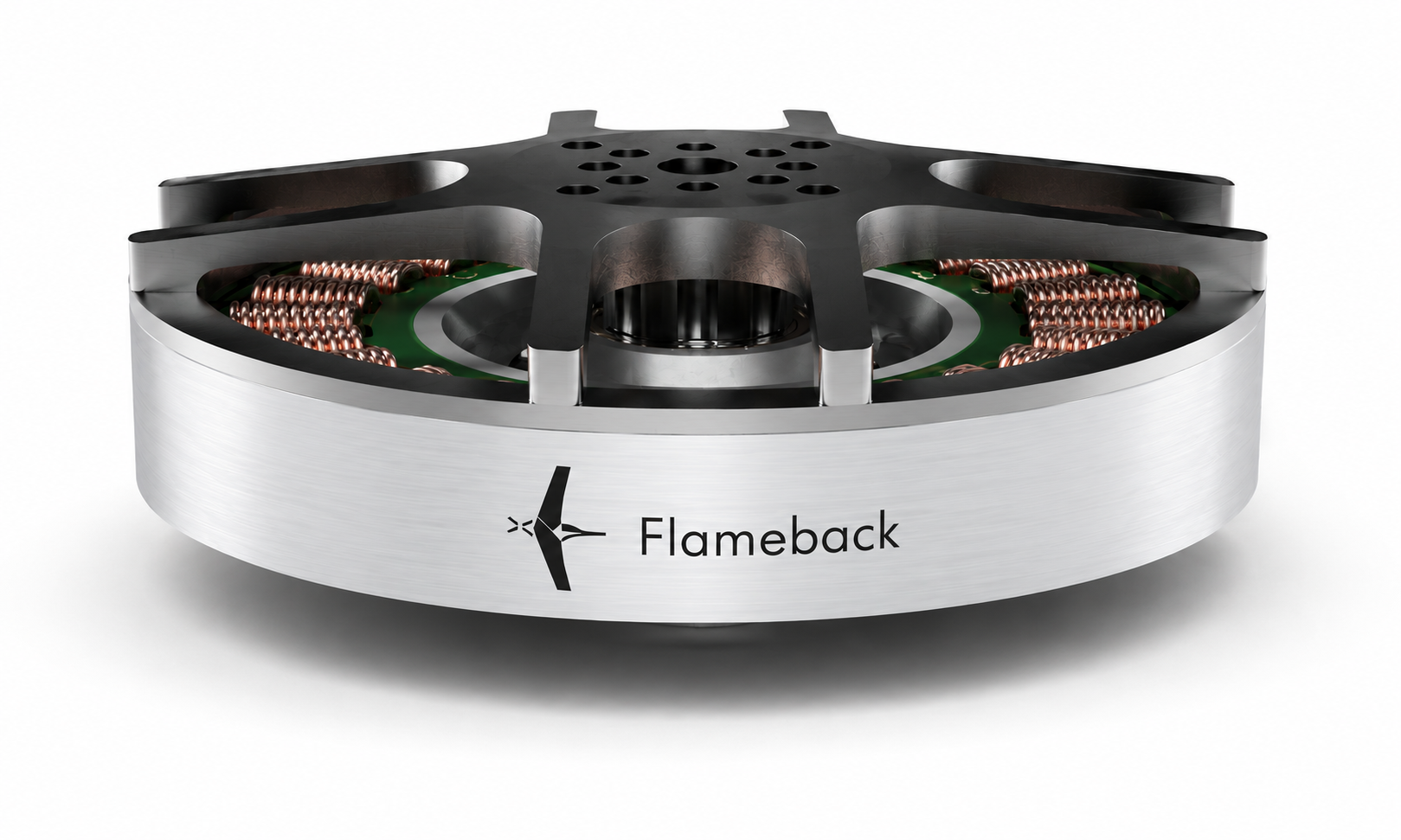

1 / 3Flameback 6206 KV300 BLDC Motor
Model FBT-BLDC-6206
Flameback 6206 KV300 brushless motor for 6S spraying and logistics drones, about 3.43 kgf max thrust on 24 inch props.
Sold byFlameback Tech Baddi- Weight
- Weight incl. cables 180 g
- Motor KV
- 6206 KV 300
- Max thrust
- Max Thrust: 3434 gF
- Stator size
- 62×6 stator
Price
Price on request
Ask for a quote for your quantity and delivery location.
- Free
- No account
- Vendor replies
Where to buy
Not sold online yet. Ask Flameback Tech for a quote, delivery and dealers near you with “Get a quote” above.
About this product
The Flameback 6206 KV300 is a flat 62x6 mm stator motor built to turn large props slowly on 6S agricultural spraying, inspection and logistics drones. Flameback quotes 3434 gf of maximum thrust and about 1280 gf at half throttle on a 24 inch prop, a 25 A maximum current and 600 W tested peak power. It weighs 180 g with cables and uses a 24N28P winding. The maker recommends its 45A ESC and tested with a 2480 prop.
Specifications
8 of 8 published by the vendor. “Ask the vendor” means the brochure does not say.
General
- Weight
- Weight incl. cables 180 g
Motor
- Motor KV
- 6206 KV 300
- Max thrust
- Max Thrust: 3434 gF
- Stator size
- 62×6 stator
- Max power
- Max Power (Tested) 600 W
- Max (continuous) current
- Max Current: 25A
- Supported cells (S)
- Operating Voltage: 6S
- Recommended propeller
- Recommended Props: 24 inches
Flameback Tech
Baddi
Flameback Tech delivers UAV components including ESCs, BLDC motors, propellers & controllers.
Documents and videos
More details
- Made in
- India
