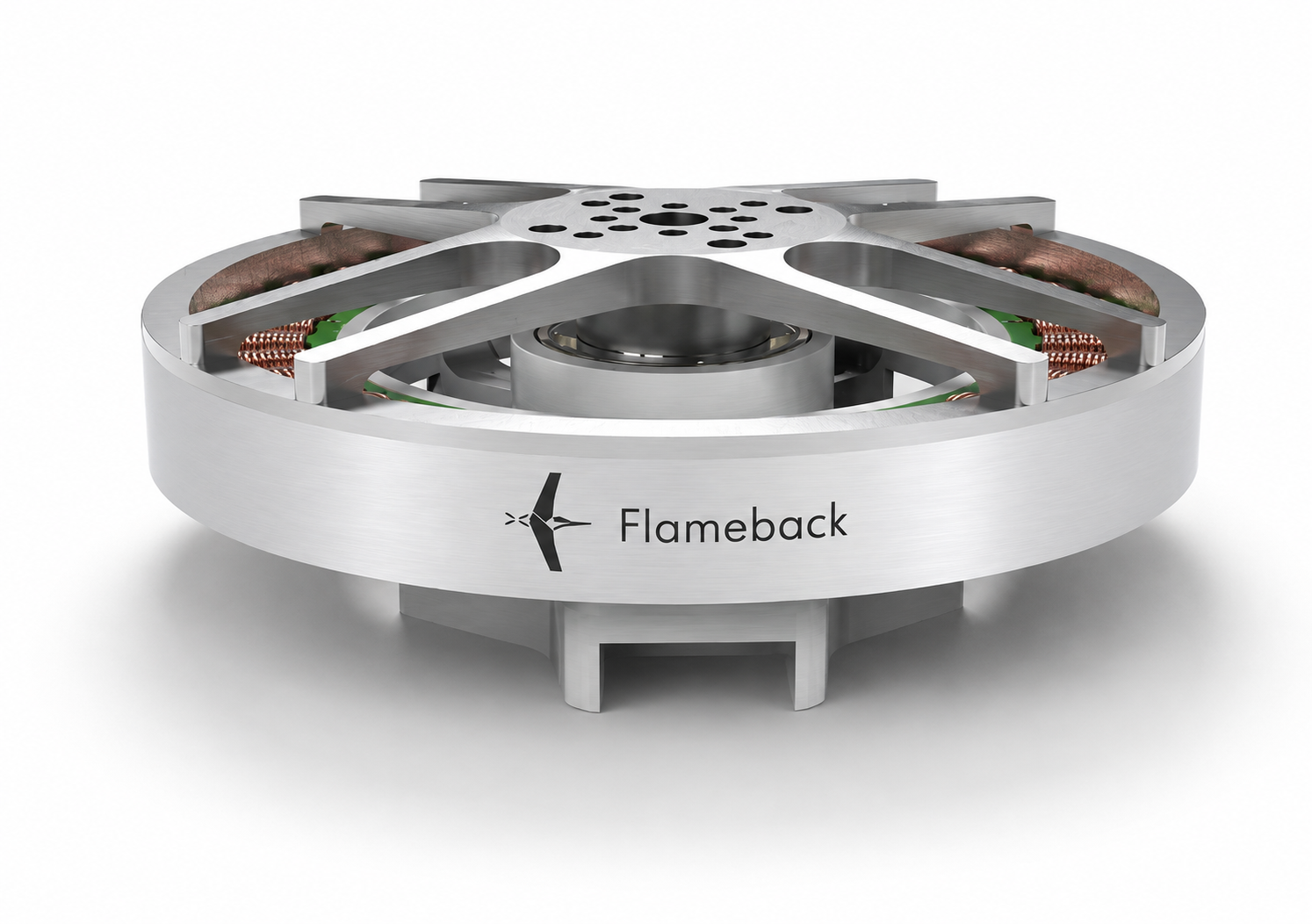

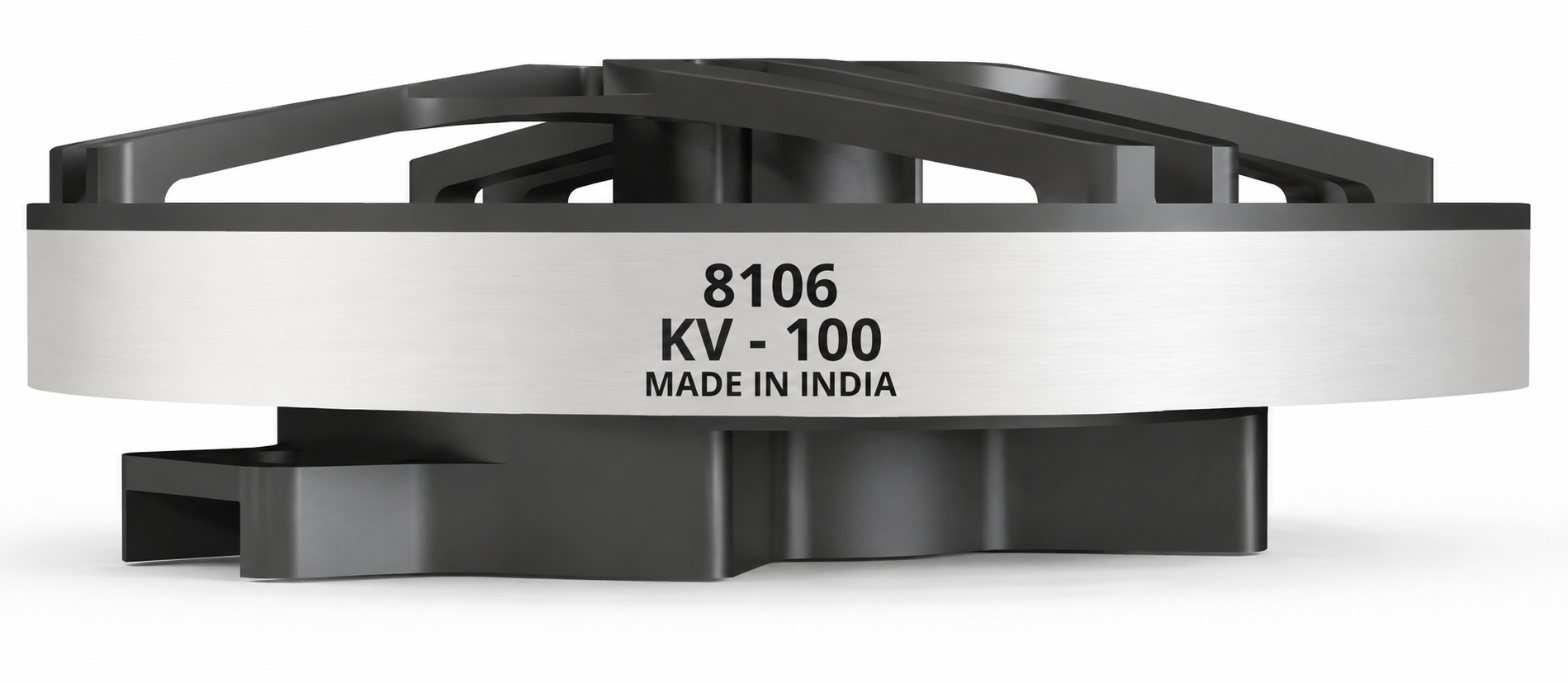

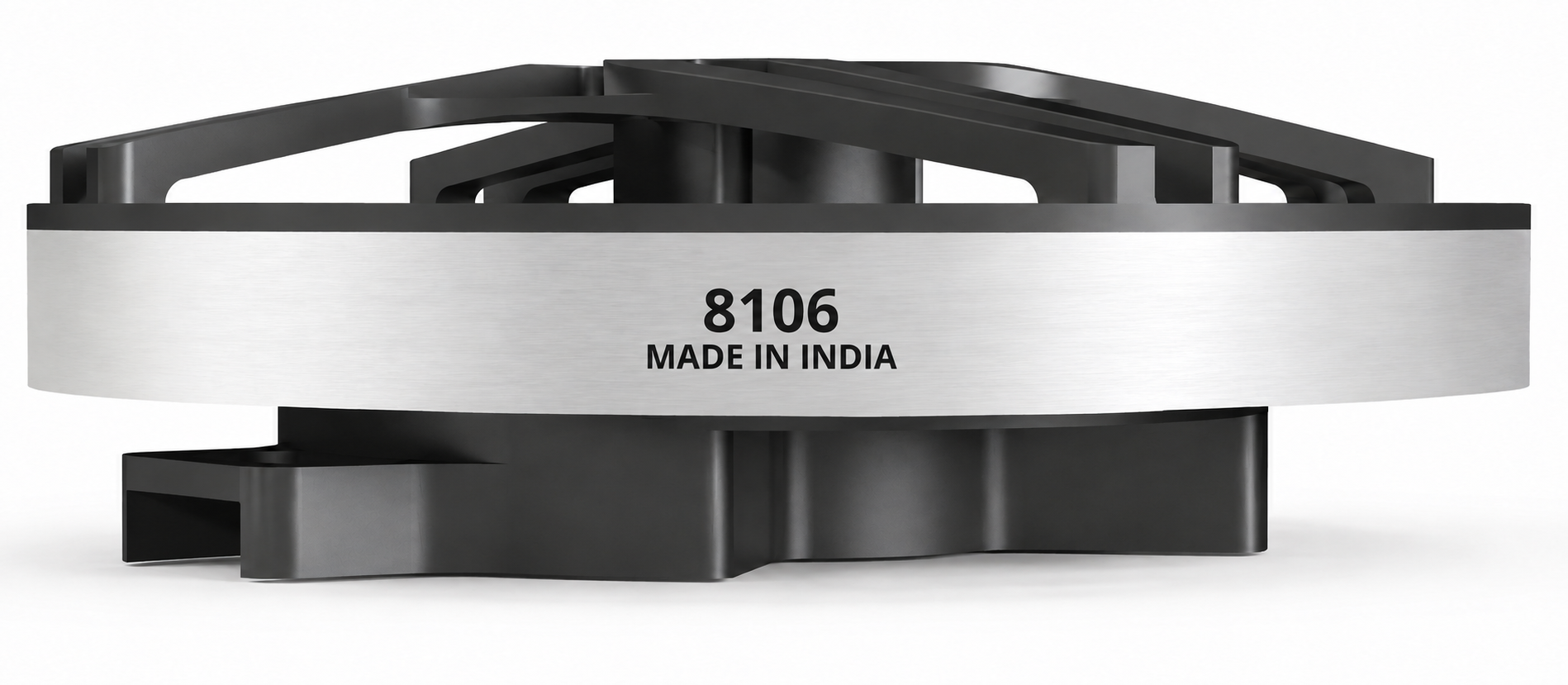

1 / 3Flameback 8106 KV100 BLDC Motor
Model FBT-BLDC-8106
Flameback 8106 KV100 brushless motor for 12S heavy-lift and cargo drones, about 5.56 kgf max thrust on 23 inch props, 255 g.
Sold byFlameback Tech Baddi- Weight
- Weight incl. cables 255 g
- Motor KV
- 8106 KV 100
- Max thrust
- Max Thrust: 5564 gF
- Stator size
- 81×6 stator
Price
Price on request
Ask for a quote for your quantity and delivery location.
- Free
- No account
- Vendor replies
Where to buy
Not sold online yet. Ask Flameback Tech for a quote, delivery and dealers near you with “Get a quote” above.
About this product
The Flameback 8106 KV100 is a large-diameter, thin 81x6 mm stator motor for 12S heavy-lift logistics and cargo drones that turn big props at low speed. The maker quotes 5564 gf of maximum thrust and about 2040 gf at half throttle on a 23 inch prop, with a 20 A current limit and 850 W tested peak power. It weighs 255 g with cables and has a 36N42P winding. Flameback pairs it with a 12S ESC and lists 2388 and 2480 props.
Specifications
8 of 8 published by the vendor. “Ask the vendor” means the brochure does not say.
General
- Weight
- Weight incl. cables 255 g
Motor
- Motor KV
- 8106 KV 100
- Max thrust
- Max Thrust: 5564 gF
- Stator size
- 81×6 stator
- Max power
- Max Power (Tested) 850 W
- Max (continuous) current
- Max Current: 20A
- Supported cells (S)
- Operating Voltage: 12S
- Recommended propeller
- Recommended Props: 23 inches
Flameback Tech
Baddi
Flameback Tech delivers UAV components including ESCs, BLDC motors, propellers & controllers.
Documents and videos
More details
- Made in
- India
