1 / 24015 PRO 340 KV
Precision multi-rotor BLDC motor for 6S platforms. 357W continuous at 165 g with 14-18 inch prop compatibility.
Sold byVector Technics- Weight
- 165 g
- Motor KV
- 340 KV
- Max thrust
- 4.3 kg
- Stator size
- 4015
Price
Price on request
Ask for a quote for your quantity and delivery location.
- Free
- No account
- Direct reply
Where to buy
About this product

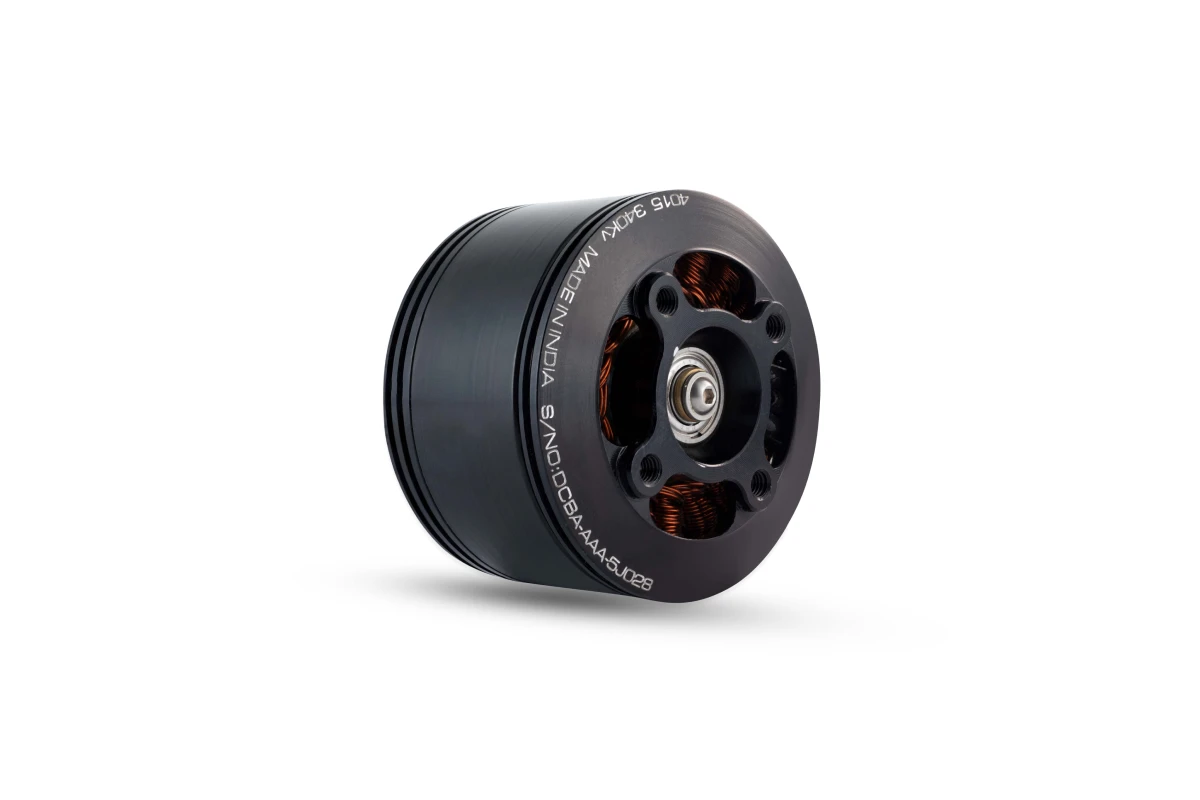

The 4015 PRO 340 KV is a precision-engineered multi-rotor BLDC motor from Vector Technics' Pro Series. Designed for 6S LiPo platforms and compatible with 14-18 inch propellers, it delivers 357 W continuous power at 165 g. The motor uses an 18S/24P winding configuration, triple sealed bearings, and a vacuum-potted stator for sustained duty in industrial UAV platforms.
Key features
- 340 KV tuned for 14-18 inch propellers at 6S
- 357 W continuous power output
- Triple 619/4-2RS sealed bearings
- 18S/24P stator-pole configuration
- Vacuum-potted stator for durability
- 165 g chassis for efficient multi-rotor builds
Specifications
8 of 8 published by the vendor. “Ask the vendor” means the brochure does not say.
General
- Weight
- 165 g
Motor
- Motor KV
- 340 KV
- Max thrust
- 4.3 kg
- Stator size
- 4015
- Max power
- 357 W
- Max (continuous) current
- 16 A
- Supported cells (S)
- 6S
- Recommended propeller
- 14"-18"
