1 / 24015 PRO 510 KV
High-speed 6S BLDC motor delivering 600W at 165 g with 25A continuous current for agile multi-rotor platforms.
Sold byVector Technics- Weight
- 165 g
- Motor KV
- 510 KV
- Max thrust
- 3.2 kg
- Stator size
- 4015
Price
Price on request
Ask for a quote for your quantity and delivery location.
- Free
- No account
- Direct reply
Where to buy
About this product

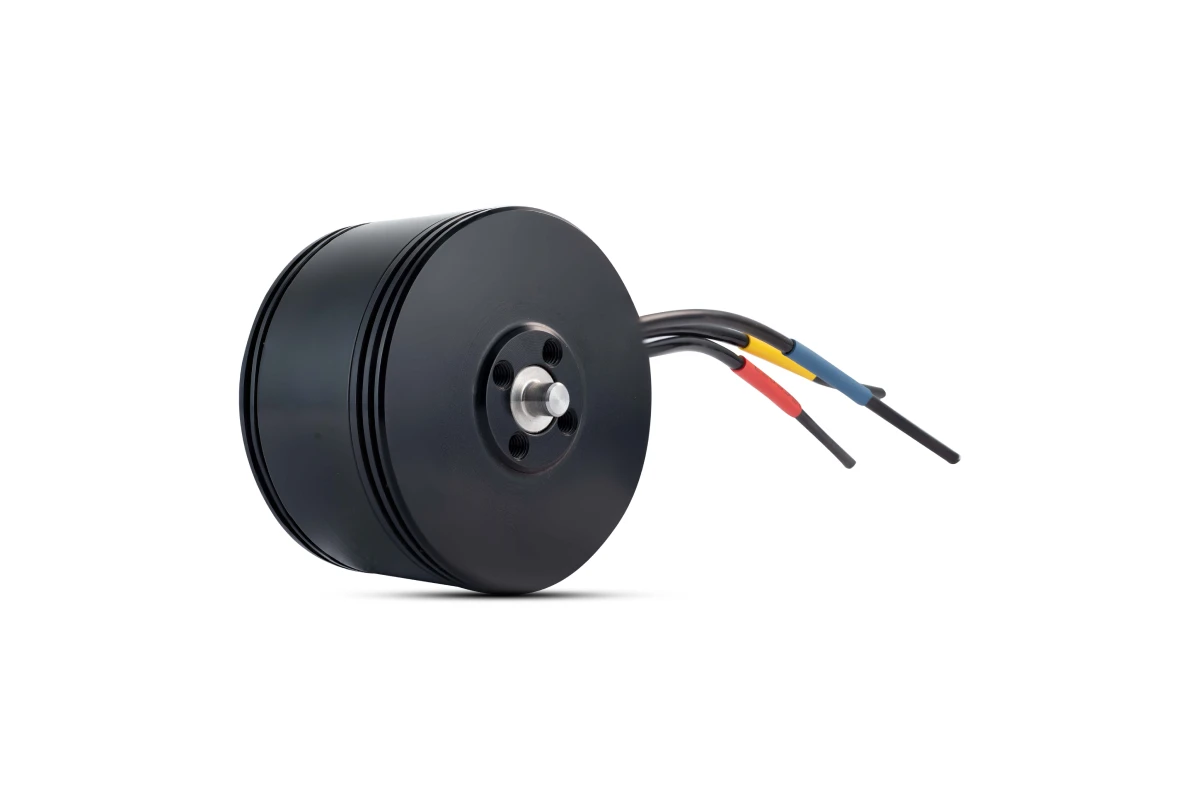

The 4015 PRO 510 KV is the higher-speed variant in Vector Technics' 4015 Pro Series. At 510 KV with 25 A continuous current on 6S LiPo, it delivers 600 W continuous power in the same 165 g form factor as the 340 KV model. It is aimed at agile commercial multi-rotor platforms that need faster RPM and higher responsiveness at 6S voltage.
Key features
- 510 KV configuration for faster RPM at 6S
- 600 W continuous power output
- 25 A continuous current rating
- Triple 619/4-2RS sealed bearings
- 18S/24P stator-pole configuration
- Shared Pro Series chassis and mount pattern
Specifications
8 of 8 published by the vendor. “Ask the vendor” means the brochure does not say.
General
- Weight
- 165 g
Motor
- Motor KV
- 510 KV
- Max thrust
- 3.2 kg
- Stator size
- 4015
- Max power
- 600 W
- Max (continuous) current
- 25 A
- Supported cells (S)
- 6S
- Recommended propeller
- 14"-18"
