1 / 26020 PRO 180 KV
Highest-output Pro Series motor. 2209W continuous at 47A on 12S, built for 22"-26" prop heavy-lift platforms.
Sold byVector Technics- Weight
- 425 g
- Motor KV
- 180 KV
- Max thrust
- 14 kg
- Stator size
- 6020
Price
Price on request
Ask for a quote for your quantity and delivery location.
- Free
- No account
- Direct reply
Where to buy
About this product

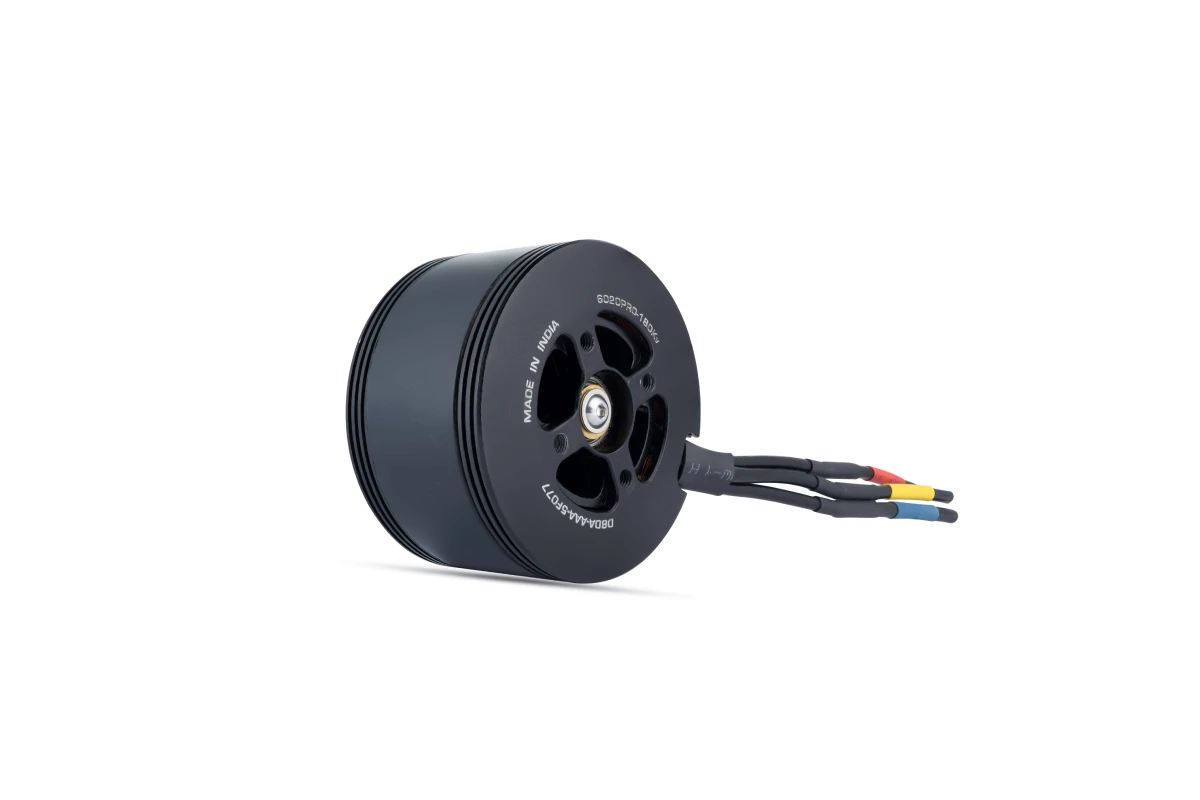

The 6020 PRO 180 KV is Vector Technics' highest-output Pro Series motor, delivering 2209 W continuous power at 47 A on 12S LiPo systems. At 425 g with triple sealed bearings and a 6 mm shaft, it is built for heavy-lift UAV platforms using 22-26 inch propellers and high torque loading.
Key features
- 180 KV maximum-torque configuration for 22-26 inch props
- 2209 W continuous power at 12S
- 47 A continuous current rating
- Triple 626-2Z sealed bearings
- 24S/28P stator-pole configuration
- 6 mm shaft for heavy-lift propeller hubs
Specifications
8 of 8 published by the vendor. “Ask the vendor” means the brochure does not say.
General
- Weight
- 425 g
Motor
- Motor KV
- 180 KV
- Max thrust
- 14 kg
- Stator size
- 6020
- Max power
- 2209 W
- Max (continuous) current
- 47 A
- Supported cells (S)
- 12S
- Recommended propeller
- 22"-26"
