1 / 26010 PRO 160 KV
High-torque 12S BLDC motor for heavy-lift UAVs. 910W continuous at 240 g with 20-23 inch prop compatibility.
Sold byVector Technics- Weight
- 240 g
- Motor KV
- 160 KV
- Max thrust
- 7 kg
- Stator size
- 6010
Price
Price on request
Ask for a quote for your quantity and delivery location.
- Free
- No account
- Direct reply
Where to buy
About this product

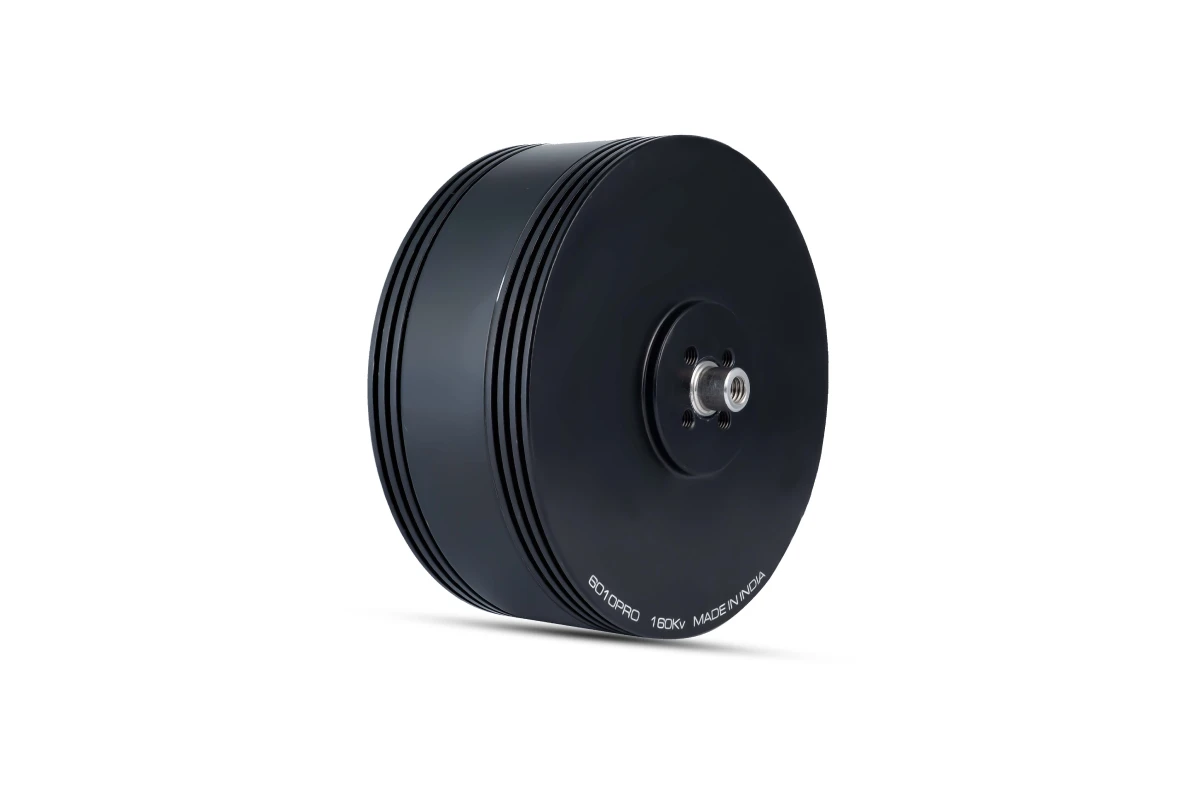

The 6010 PRO 160 KV is a high-torque 12S BLDC motor from Vector Technics designed for heavy-lift UAVs. Running on 44-50 V systems, it produces 910 W continuous power at 240 g with dual sealed bearings and a 24S/28P winding. The motor is optimized for 20-23 inch propellers in industrial multi-rotor platforms.
Key features
- 160 KV high-torque configuration for 20-23 inch props
- 910 W continuous power at 12S
- Dual 626-2Z sealed bearings
- 24S/28P stator-pole configuration
- Multi-hole motor mount pattern
- 240 g industrial heavy-lift form factor
Specifications
8 of 8 published by the vendor. “Ask the vendor” means the brochure does not say.
General
- Weight
- 240 g
Motor
- Motor KV
- 160 KV
- Max thrust
- 7 kg
- Stator size
- 6010
- Max power
- 910 W
- Max (continuous) current
- 20 A
- Supported cells (S)
- 12S
- Recommended propeller
- 20"-23"
