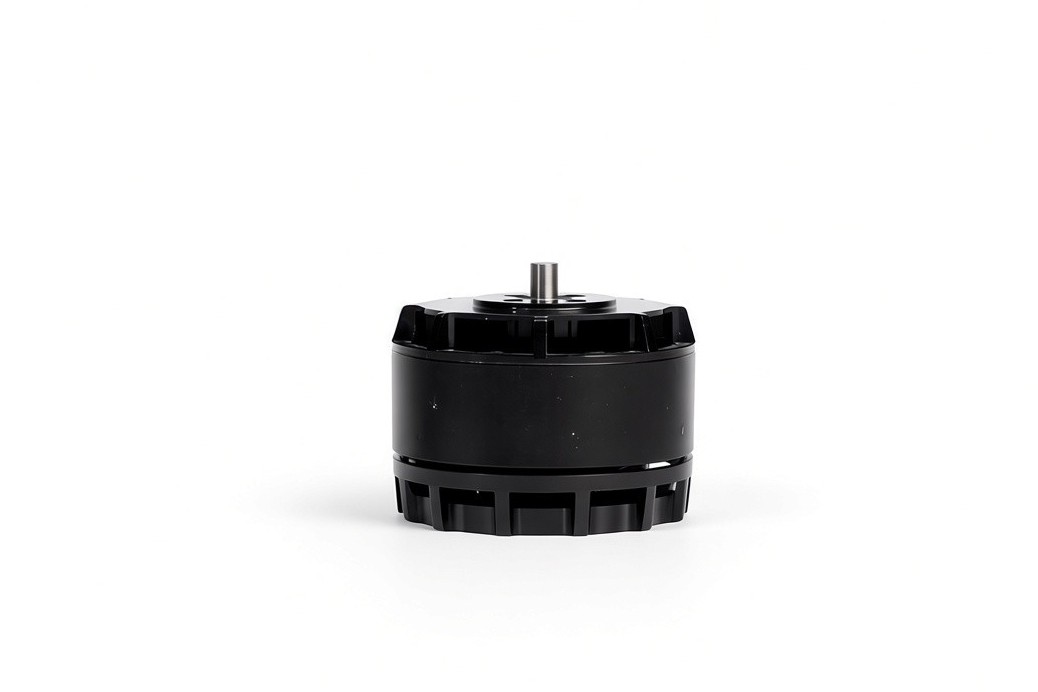

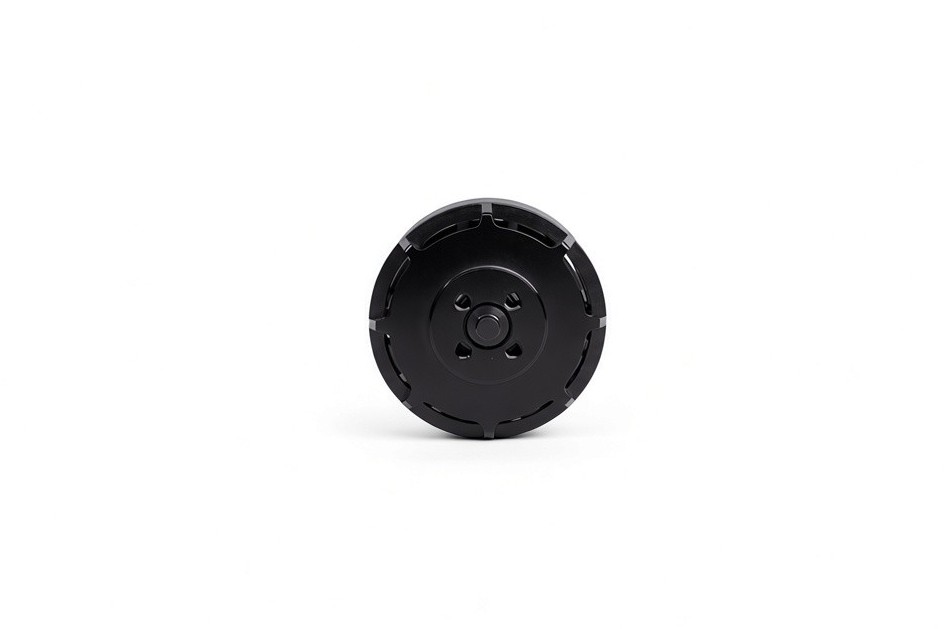

1 / 3Vector Technics 3510 PRO 700 KV BLDC Motor
Model 3510 PRO 700KV
700 KV 3510 PRO outrunner for 6S multirotor drones: 9.92A / 243.7W continuous, 106.3g, 12" to 14" props.
Sold byVector Technics Hyderabad (Shamshabad)- Weight
- Motor Weight: 106.3 g ± 2%
- Motor KV
- 700 RPM/V
- Max thrust
- 2075 g at 1750-75% PWM (25.62 A, 24.08 V) with 14 x 4.8 CF_FX
Price
Price on request
Ask for a quote for your quantity and delivery location.
- Free
- No account
- Vendor replies
Where to buy
Not sold online yet. Ask Vector Technics for a quote, delivery and dealers near you with “Get a quote” above.
About this product
The 3510 PRO 700 KV is a pro series brushless outrunner designed and built by Vector Technics in Hyderabad for heavy-lift and industrial multirotors. It runs on 22V - 25V (6S LiPo) and is rated 9.92A and 243.7 W continuous for 180 seconds, with a torque constant of 0.014 Nm/A and no-load current of 1.47A (@ 24V). The motor uses a 12-slot, 14-pole layout with Dual 619 4-2z bearings, measures 41.80 mm across by 30 mm long, weighs 106.3 g ± 2% and has a 20 mm shaft. Vector Technics lists 12" to 14" propellers as compatible. In the maker's bench data the highest recorded thrust is about 2.1 kg, measured with a 14 x 4.8 propeller. A datasheet with drawings and test data is downloadable from the product page.
Specifications
8 of 8 published by the vendor. “Ask the vendor” means the brochure does not say.
General
- Weight
- Motor Weight: 106.3 g ± 2%
- Dimensions (L × W × H)
- Motor Diameter: ø 41.80 mm; Motor Length: 30 mm
Motor
- Motor KV
- 700 RPM/V
- Max thrust
- 2075 g at 1750-75% PWM (25.62 A, 24.08 V) with 14 x 4.8 CF_FX
- Max power
- Maximum Continuous Power: 243.7 W (180s)
- Max (continuous) current
- Maximum Continuous Current: 9.92A (180s)
- Supported cells (S)
- Voltage Range: 22V - 25V ( 6S LiPo)
- Recommended propeller
- Compatible Propeller Size: 12 " inch to 14 " inch
Documents and videos
More details
- Made in
- India
